3.0
Configuring Microsoft Forefront TMG
The Microsoft Forefront TMG firewall disables all network traffic that is not explicitly allowed. Therefore, an
exception rule needs to be configured and activated in the TMG Firewall to allow the UAG server to forward the
authentication request to the 4TRESS server. This section describes the process of enabling communication to
take place between the UAG server and 4TRESS over the RADIUS protocol.
3.1 Configuring TMG to Allow RADIUS Communication
Administration of the TMG Firewall is performed by using the Microsoft TMG Management Console, which is
installed as part of the Microsoft Forefront UAG software.

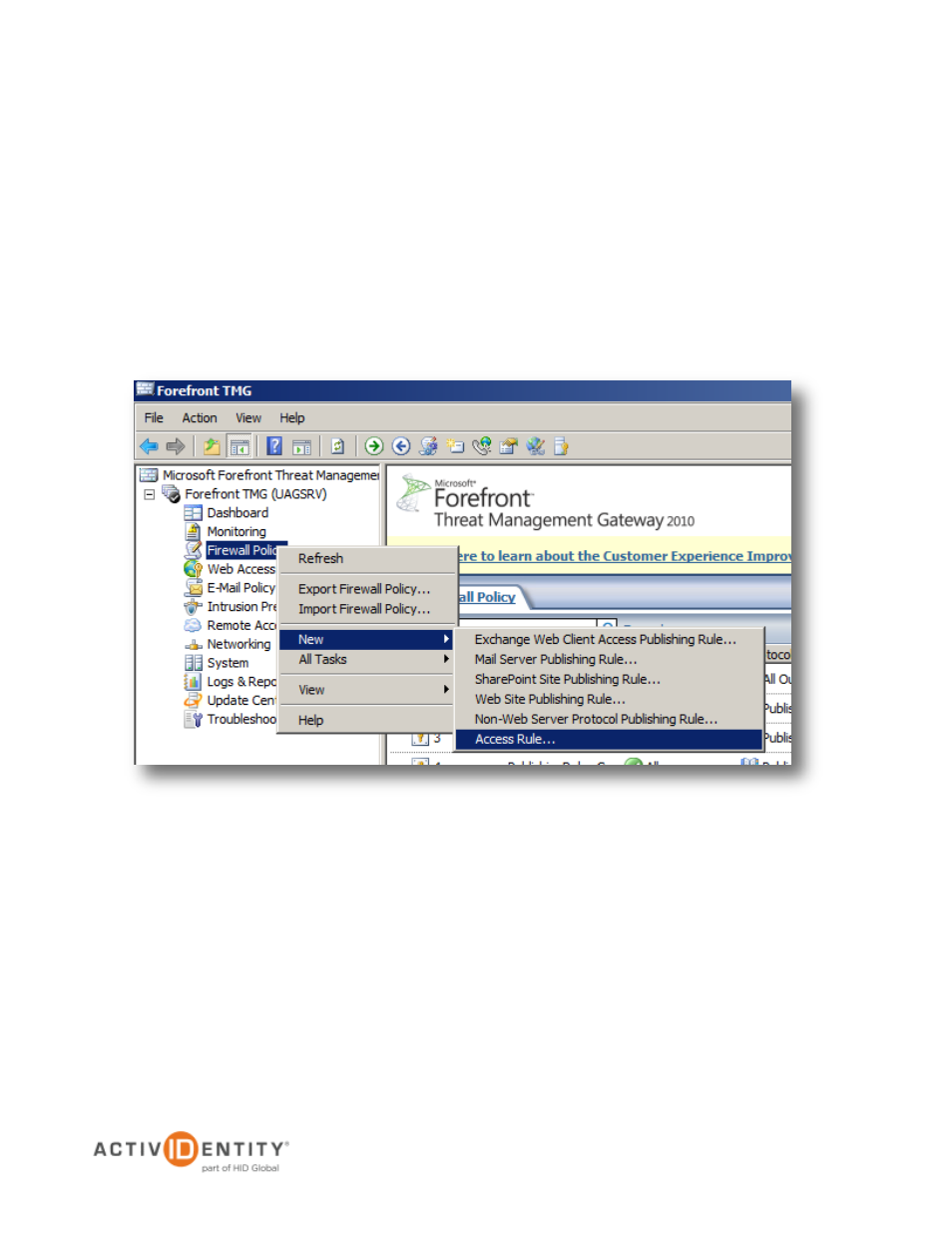

1. Launch the Microsoft TMG Management Console and right-click Firewall Policy. Then Select New and
Access Rule…
