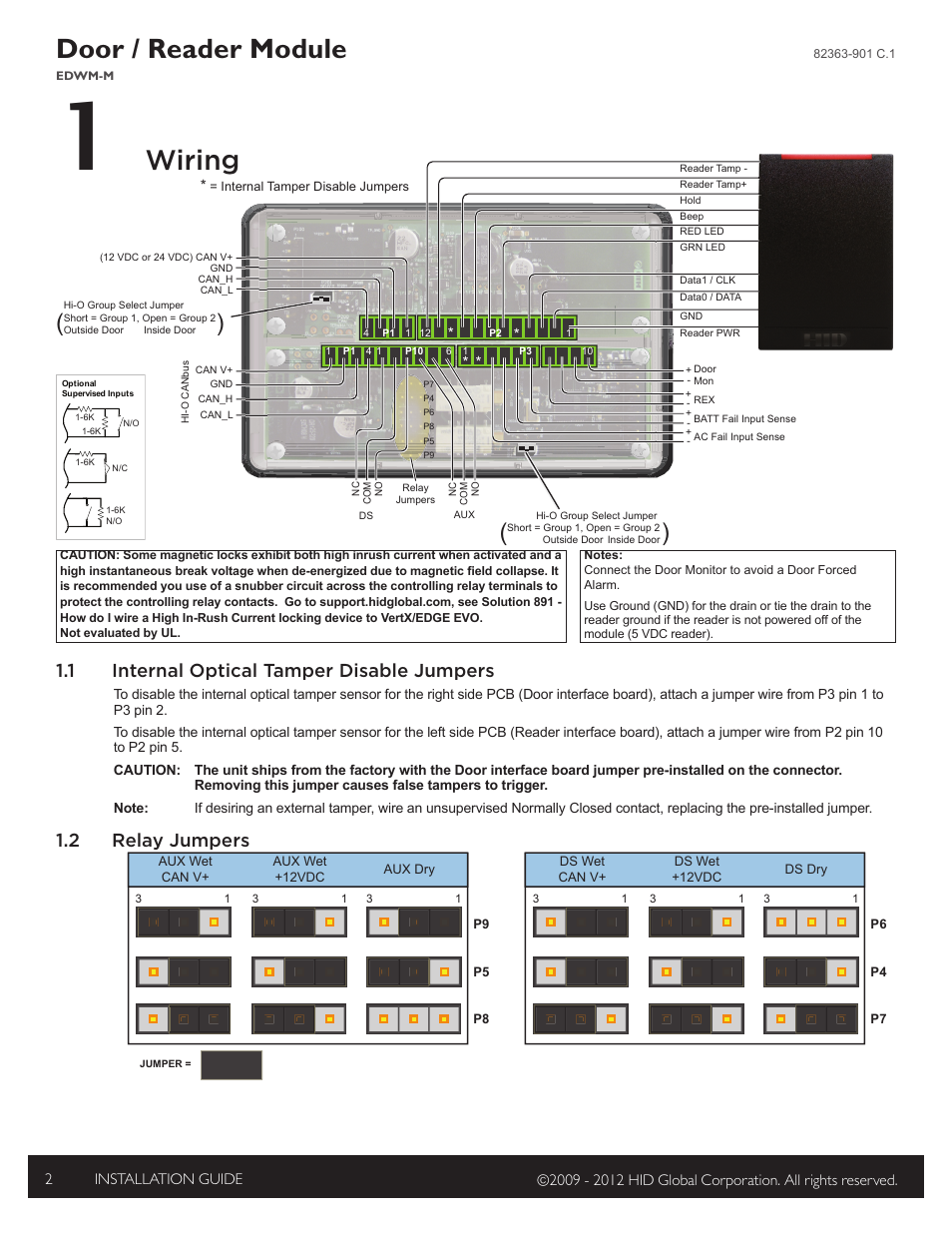

1 wiring, 1 internal optical tamper disable jumpers, 2 relay jumpers – HID EDGE EVO EWM-M Wiegand Module Installation Guide User Manual
Page 2: Door / reader module, Wiring
This manual is related to the following products:
