Once you have reached the strongest signal location, (forward/backward/left/right) press the
button, and the screen will switch to the depth view, telling you the location of the transmitter/
SONDE. Press the
button again to return to the horizon view.
1. ........................................................................ Horizontal View
Press .
2. ........................................................................ Vertical View
Press to get back to 1.

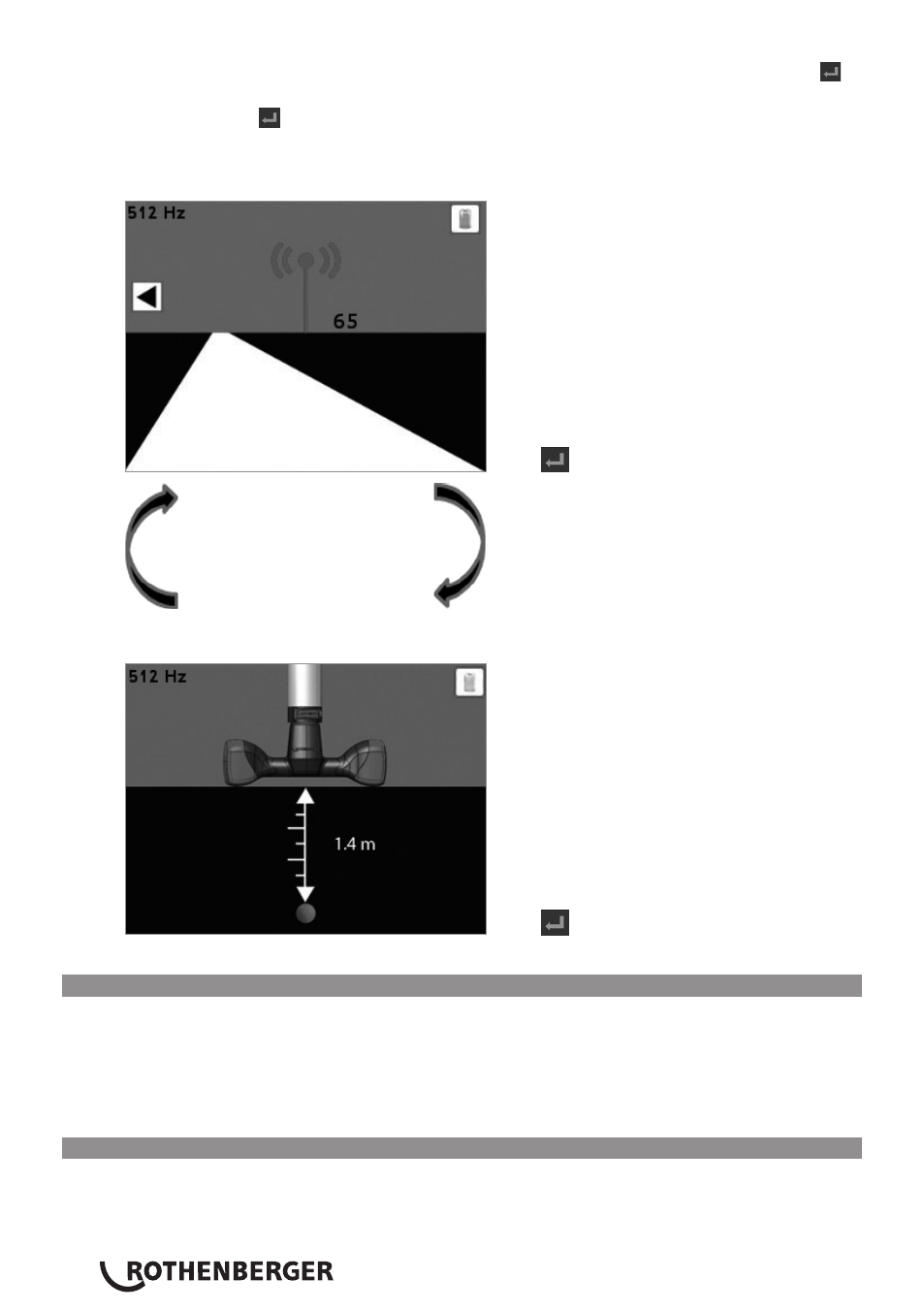

Figure 10 – Signal/Depth Locator
9. Cleaning Instruction
1. Remove battery from unit.
2. Alcohol wipes, mild detergent and water to remove dirt and grease from the product.
3. Recommend soft optical cloth for cleaning the LCD window.
4. Recommend cotton cloth for cleaning imager head.
5. Allow appropriate drying time before re-inserting the battery and operating.
10. Storage
1. Unit should be cleaned prior to long term storage
2. Store in a cool dry location
3. Battery should be removed during storage to promote battery life.
