Specifications and Dimensions

F232228

The external supply connection is located on the rear
panel of the control module. It houses a terminal strip
which furnishes supply output signals for the chemical
injection supply pumps. Refer to Figure 21 for
examples of applicable decals.

Terminals SUPPLY 1 through SUPPLY 5 provide
200 – 240VAC fused at 500mA. These terminals may
be used to provide signals to the chemical injection
system but must not be used to provide power to the
pump. Do not attempt to increase fuse rating as this
may cause damage to the washer-extractor’s circuitry.

An external chemical injection system requiring 200 –
240VAC can be powered through LINE 1 and LINE 2
on the external supply terminal strip on UWAVX and
UWAVQ models. Any chemical injection system used
with UWAVN or UWAVP models must be powered by
a separate external power source.

Any injection system pump which requires 110VAC
must be powered by a separate external power
source.

Refer to Chemical Injection Supply System
instructions for operational details.

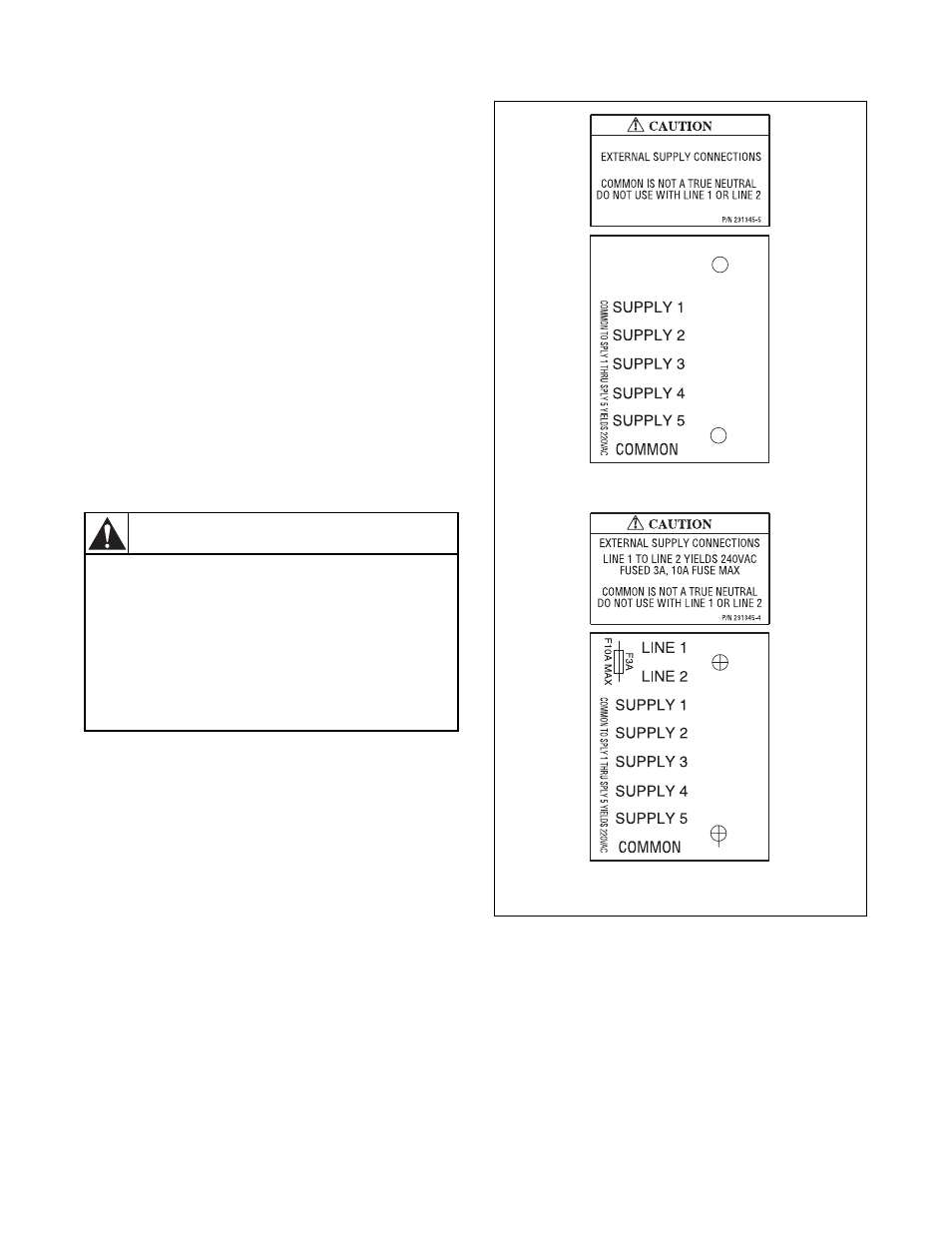

Figure 21

Attempting to obtain 110VAC by using L1
or L2 with the common may damage
laundry machine circuitry and/or the
chemical injection system. Using a
240VAC power wire in the washer-
extractor and an earth ground to obtain
110VAC could cause microprocessor
problems.

SW028

CAUTION

PHM554N

P AND N VOLTAGE MODELS (AVP AND AVN)

X (AVX) AND Q (AVQ) VOLTAGE MODELS
