Specifications and Dimensions
F232228 30
Chemical Injection Supply System
Undiluted chemical dripping can damage the washer-
extractor. Therefore, all chemical supply dispenser
pumps should be mounted below the washer-
extractor’s injection point. All dispenser tubing should
also run below the injection point. Loops do not
prevent drips if these instructions are not followed.
Failure to follow these instructions could damage the

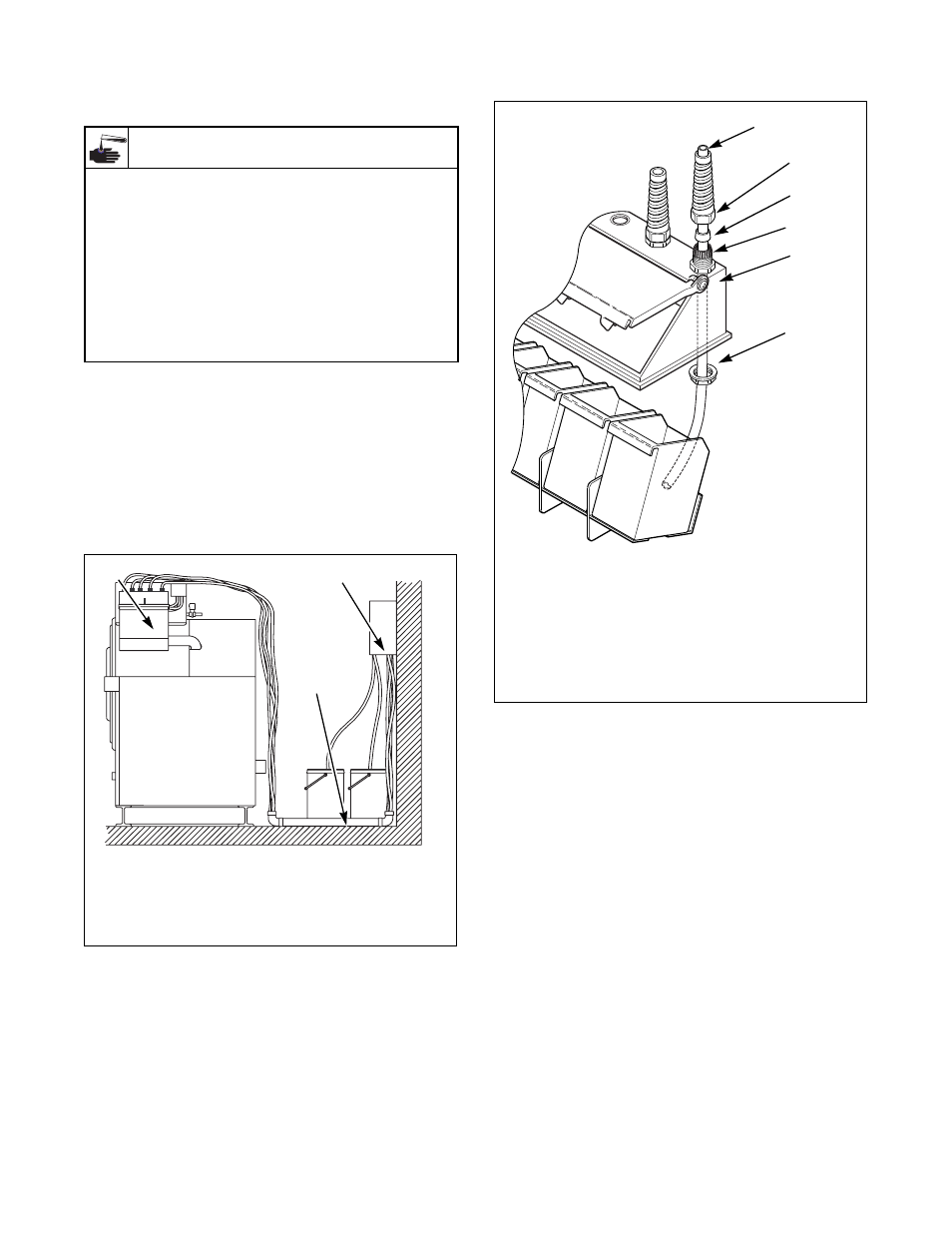

machine and void the warranty. Figure 18 shows a
typical chemical injection supply system.
Figure 18
Figure 19
PHM578N
1 Injection Point
2 Chemical Dispenser Pump Outlet
3 PVC Pipe
Wear eye and hand protection when
handling chemicals; always avoid direct
contact with raw chemicals. Read the
manufacturer’s directions for accidental
contact before handling chemicals.
Ensure an eye-rinse facility and an
emergency shower are within easy reach.
Check at regular intervals for chemical
leaks.
SW016
WARNING
1
2
3
PHM559N
1 Tubing from Pump
2 Seal Nut
3 Tubing Ring
4 Base
5 Lid
6 Nut
PHM559N
3
1
2
4
5
6
