Specifications and Dimensions

F232228

24

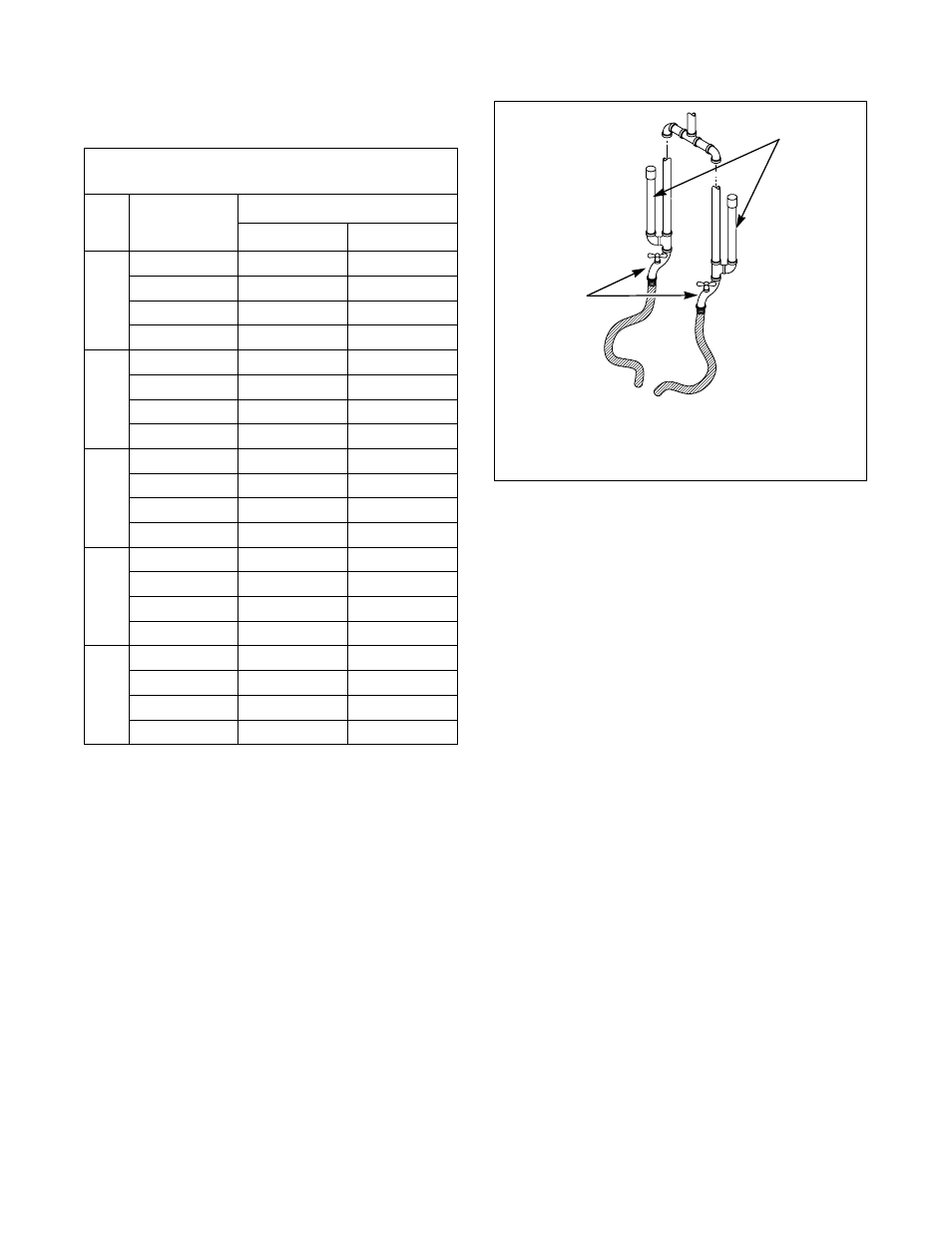

Suitable air cushions should be installed in supply
lines to prevent “hammering.” Refer to Figure 16.

Figure 16

UWAV Pocket Hardmount

Water Supply Line Sizing

M

ode

l

Number

of Machines

Supply Line Size, in (mm)

Main

Hot/Cold

35

1

1 (25)

0.75 (19)

2

1.5 (38)

1 (25)

3

2 (50)

1.25 (32)

4

2 (50)

1.5 (38)

60

1

1.25 (32)

1 (25)

2

2 (50)

1.25 (32)

3

2 (50)

1.5 (38)

4

2.5 (64)

2 (50)

80

1

1 (25)

0.75 (20)

2

1.5 (38)

1 (25)

3

1.5 (38)

1.25 (32)

4

2 (50)

1.5 (38)

100

1

1 (25)

0.75 (20)

2

1.5 (38)

1 (25)

3

1.5 (38)

1.25 (32)

4

2 (50)

1.5 (38)

125

1

1.5 (38)

1 (25)

2

2 (50)

1.5 (38)

3

2.5 (64)

2 (50)

4

2.5 (64)

2 (50)

Table 6

PHM184N

1

Water Supply Faucets

2

Air Cushions (Risers)

PHM184N

1

2
