Specifications and Dimensions
F232228 18
Mounting Bolt Installation Requirements
A bolt kit consisting of eight bolts is available as an
option. The UW35AV uses 5/8-11 x 8 inch bolts. The
UW60AV, UW80AV, UW100AV and UW125AV use
3/4-10 x 8 inch bolts. The bolts should be embedded in
a 3500 psi minimum reinforced concrete floor that is a
minimum of 12 inches thick. Use the mounting bolt
layouts in Figure 8 and Figure 9. (The front of the
washer-extractor is the bottom of each diagram.)
The threaded end of the bolts should extend 2 inches
above the surface of the floor.

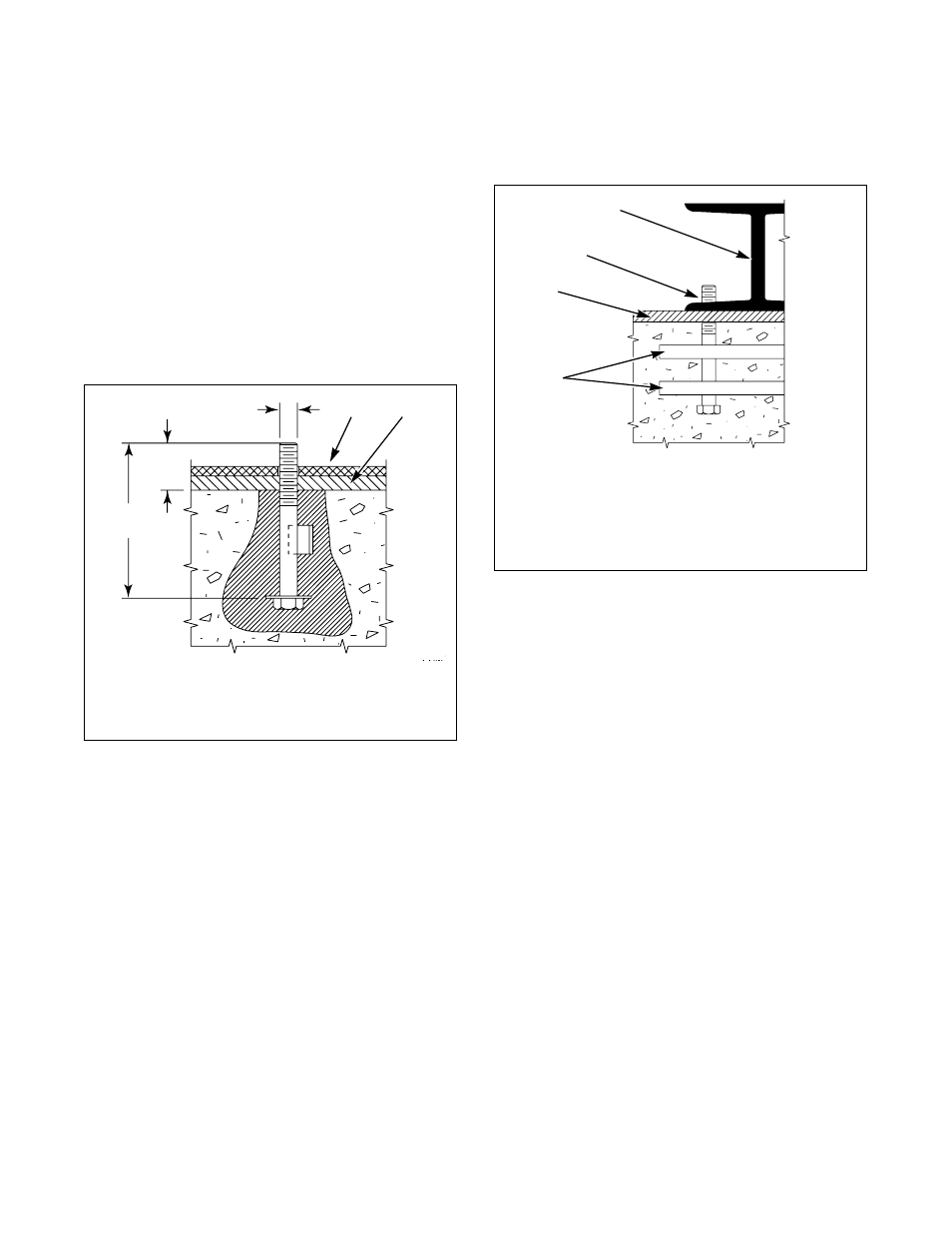

Refer to Figure 8 for a typical installation of individual
mounting bolts.
Figure 8
A bolt-locator fixture or rebar frame is available as an
option. This rigid welded assembly made of
reinforcing rod and mounting bolts is designed to be
embedded in concrete. Refer to Figure 9.
Figure 9
PHM178N
1 Frame
2 Grout
0.75 in.
(19 mm)
2 in.
(51 mm)
8 in.
(203 mm)
2 1
PHM179N
1 Machine Base
2 Mounting Bolt Threads
3 Grouting
4 Reinforcing Rod
PHM179N
1
2
3
4
