Specifications and Dimensions

F232228

The washer-extractor should be connected to an
individual branch circuit not shared with lighting or
other equipment.

The connection should be shielded in a liquid-tight or
approved flexible conduit with proper conductors of
correct size installed in accordance with the National
Electric Code or other applicable codes. The
connection must be made by a qualified electrician
using the wiring diagram provided with the washer-
extractor.

Use wire sizes indicated in the Electrical
Specifications chart for runs up to 50 feet (15 m). Use
next larger size for runs of 50 to 100 feet (15 to 30 m).
Use two sizes larger for runs greater than 100 feet
(30 m).

For personal safety and for proper operation, the
washer-extractor must be grounded in accordance with
state and local codes. If such codes are not available,
grounding must conform with the National Electric
Code, article 250-95. The ground connection must be
made to a proven earth ground, not to conduit or water
pipes.

If a delta supply system is used, the high leg should be
connected to L3.

After electrical installation is complete, run the
machine through a test cycle and check for a clockwise
basket rotation during the extract step. If rotation is not
clockwise, disconnect the power from the machine and
have a qualified electrician reverse any 2 motor leads at
the AC drive terminal block.

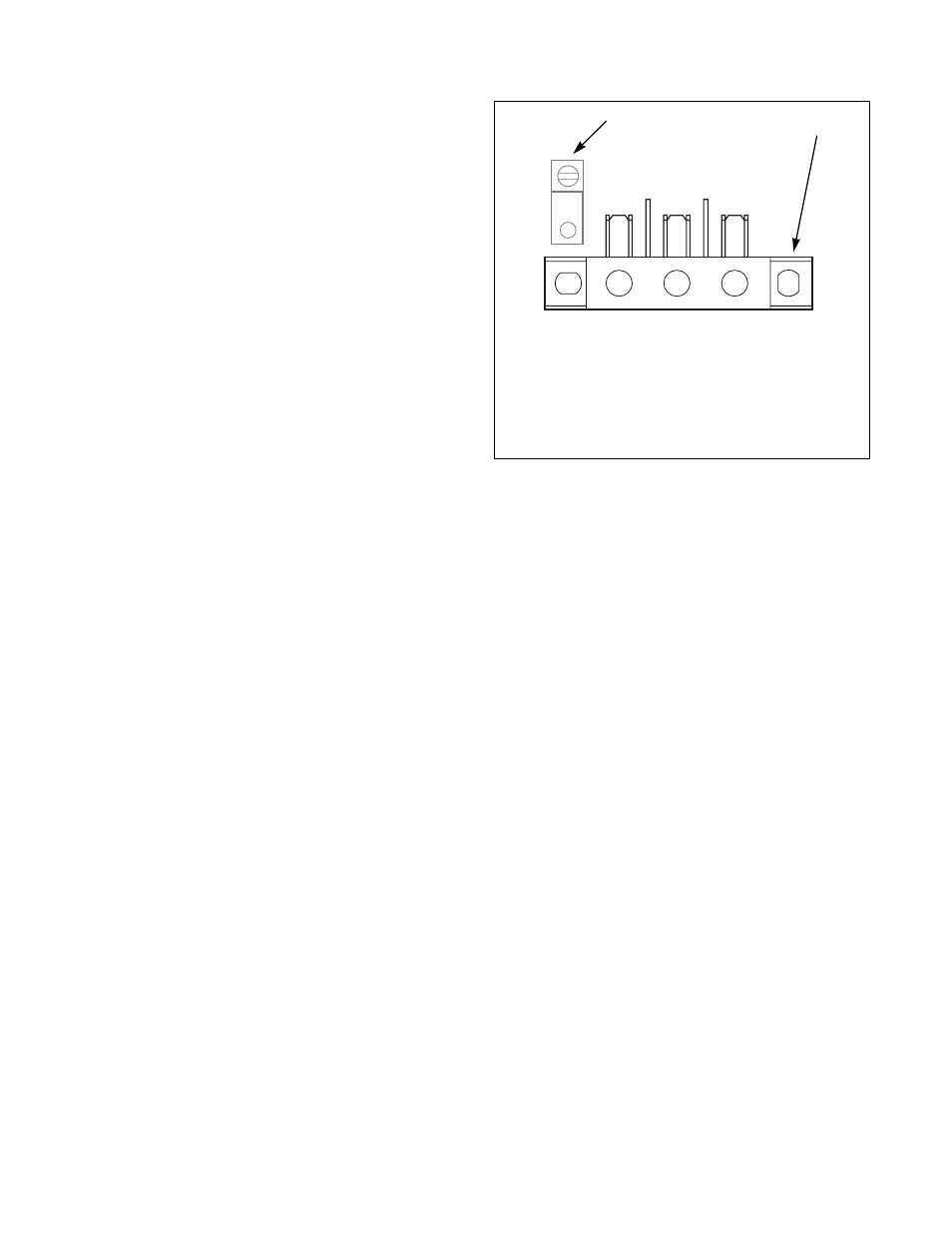

Figure 17

PHM572N

Grounding Lug: Connect to proven earth
ground

Power Input Block

Connections to
Control Module

(L1)

Black

(L2)

Blue

(L3)

Red
