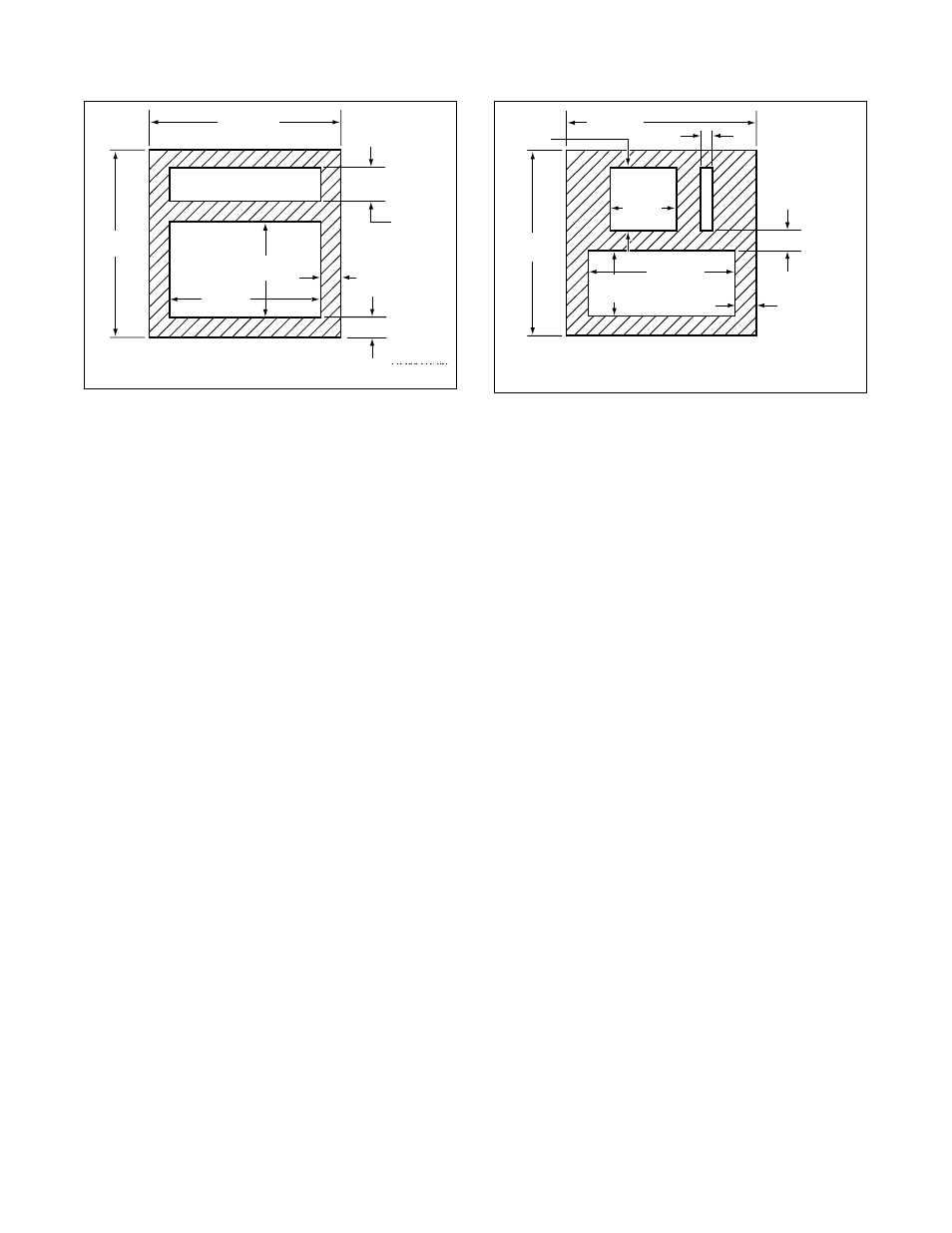

Specifications and Dimensions
F232228 20
Figure 12 Figure 13
PHM192N
UW80AV AND UW100AV
41.125 in.
(1044 mm)
43.8125 in.
(1113 mm)
20.6875 in.
(526 mm)
33 in.
(838 mm)
10.875 in.
(276 mm)
4.0625 in.
(103 mm)
Typical
4.0625 in.
(103 mm)
Typical
PHM180N
UW125AV
39.875 in.
1013 mm)
4.0625 in.
(103 mm)
Typical
4.0625 in.
(103 mm)
Typical
24.3125 in.
(617 mm)
3.25 in.
(83 mm)
48 in.
(1219 mm) 13.875
in.
48 in.
(1219 mm)
22 in.
(559 mm)
