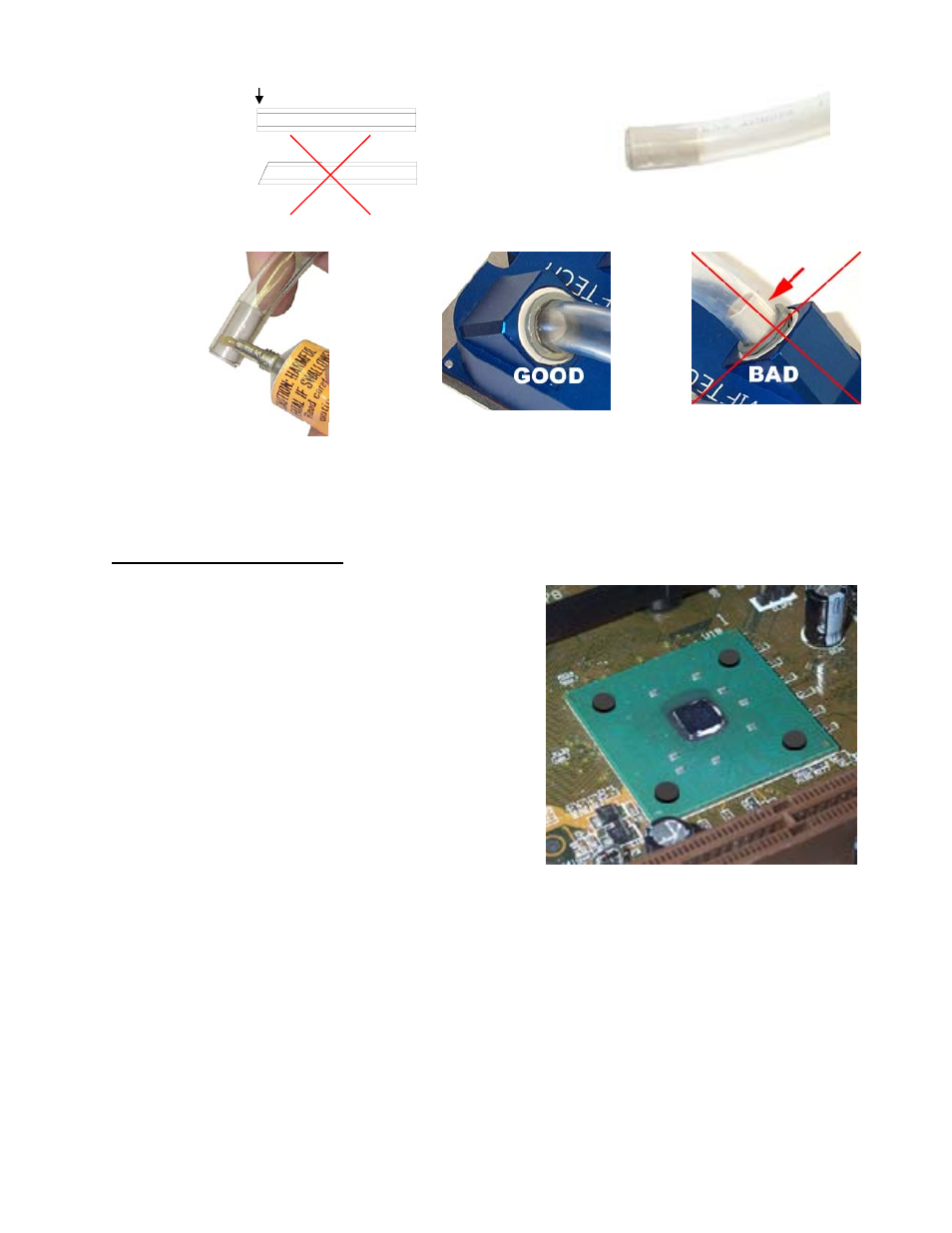

Square cut
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
c. Spread a little bit of grease or liquid
soap
around the tubing. It helps pushing the
tubes in, particularly with Clearflex  tubing,
which features a very “sticky” surface.
d. Fully insert both tubes into the fittings. The tip of the plastic tube inserts should
be flush with the inlet and outlet openings, as shown in figure 4 above. Inserting the
tubes requires a firm push, accompanied by a twisting motion.
2. Installation for Intel  platforms
a. Prepare your Motherboard
Remove the existing heat sink
Carefully clean the processor, using alcohol
Install the 4 neoprene pads as shown figure 8. This
steps is only necessary if the processor core is
exposed. If the chipset features a heat spreader (a
large lid covering the entire area of the chipset),
then the neoprene pads MUST not be installed.
Lightly coat the processor with the provided thermal
compound. Only a paper-thin coat is necessary. It
should be applied using preferably a razor blade, or a
credit card, held between thumb and index at a 45
°
angle
Figure 8
