Swiftech H20 80 R2 - Manual (Page 24)

ASSEM BLY USING PLA STIC
FRA ME A ND SPRIN G CLIPS
IN CLUDED WITH M OTHERBOA RD
16 PART NO. DESCRIPTION
1 DUAL-XEON-BOARD Motherboard
2 RETENTION Plastic retention frame, included with motherboard
3 XEON-CLIP Xeon clip included with motherboard
4 MCW6000-P-with-bracket MCW6000-P water-block assembly
a MCW6000-FLAT MCW6000 waterblock flat base
b SP4-Bckt Hold-down plate for Intel Pentium 4 and Xeon
3
4 b
4 a
2
1
FLUID INLET
FLUID DISCHARGE

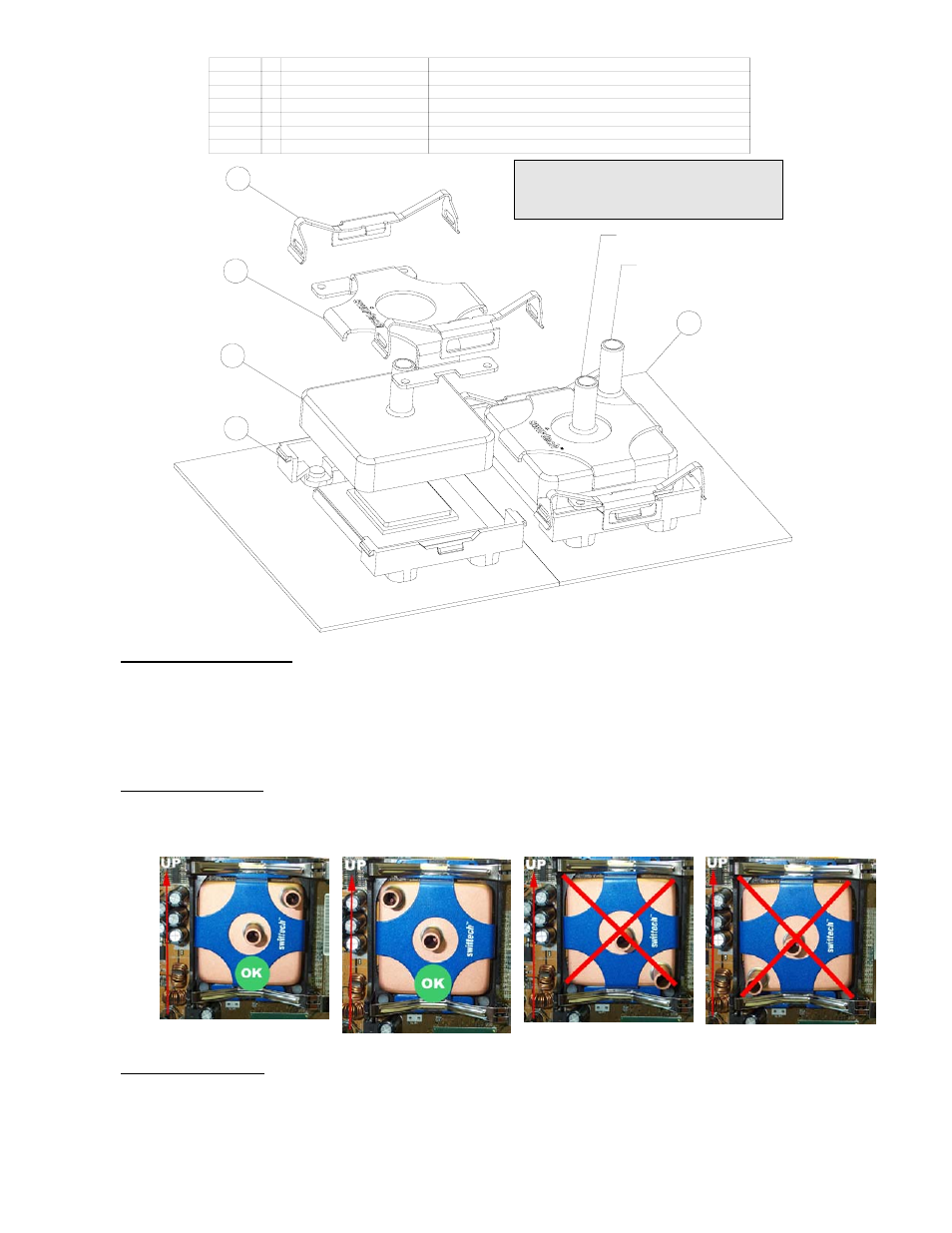

Figure 2
1. Preparing your Motherboard:
Remove the existing heat sink
Carefully clean the CPU.
Lightly coat the CPU with thermal compound. We recommend high quality thermal compound such as Arctic Silver or equivalent.
Application will vary depending on the type of processor. We recommend visiting www.arcticsilver.com for detailed instructions.
2. Water-block orientation:
For ease of operations during the filling and bleeding procedures, the outlet should always be at the highest point (while the computer
system is standing upright):
3. Water-block installation:
The MCW6000-PX can be installed using two different methods (also see figure 1 and 2):
Rouchon Industries, Inc., dbA Swiftech™ – 1703 E. 28 th St, signal Hill, CA 90755, USA – T (562) 595-8009 – F (562) 595-8769 – All content
Copyright Swiftech 2004 – Last edited 9-27-04 – Subject to revision without notice - 24 of 38 -
