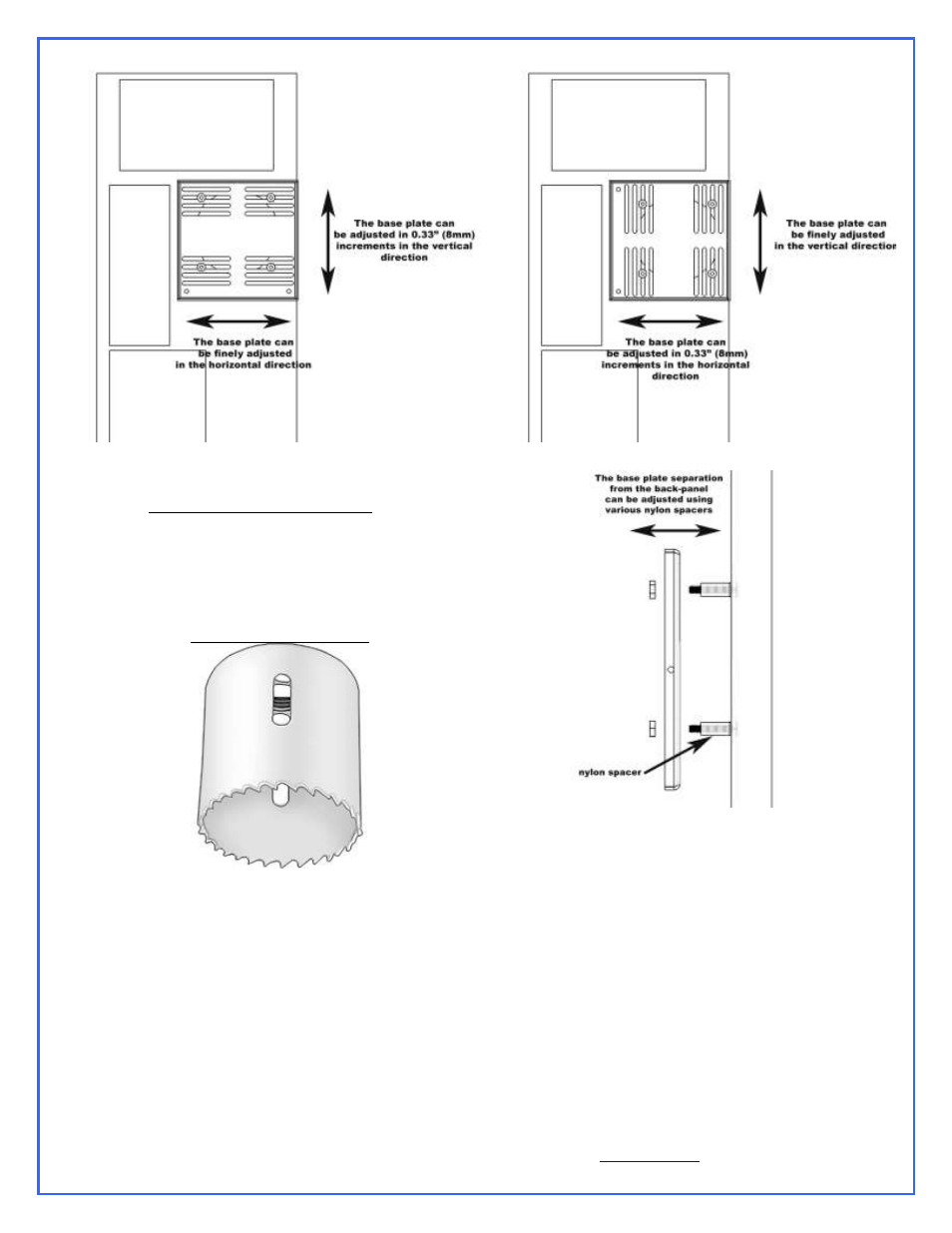

Once satisfied with the position, bolt down the Radbox
back-plate with the provided nylon nuts.
Routing of the tubes thru the chassis:
Many of the current chassis offered on the market now
come with pre-drilled holes to route the tubing thru the
chassis. If your chassis does not have this feature, it will
be necessary to drill the holes yourself. Since the OD of
the tubing that comes with your kit is ¾” , we recommend
using a 1” bi-metal hole saw (shown below) to open up
these holes. Once done, make sure to properly deburr
the edges of the hole to prevent damage to the tubing.
Once the two holes are cut, de-burr the edges, and optionally
install grommets (not provided)
Install your radiator assembly onto the back plate and fasten
with the 4 provided short screws.
Finally, you need to route the fan wires through the back-
panel. This can be done easily with the provided PCI adapter
plate featuring a hole and grommet for protection of the wire as
shown below.
Fan speed adapters: please note that your kit includes fan
speed adapters that will allow you to tune the fan speed down
if desired. 2 types of adapters are provided: 12 to 7 v, or 12 to
5v. The 12 to 7 volt adapters connect first to the fan connector,
then to a motherboard 3 pin header; the 12 to 5v adapter
connect first to the fan connectors, then to a 4 pin molex
connector from the power supply. For full speed operations,
simply connect the fans directly to your motherboard 3 pin
connectors.
