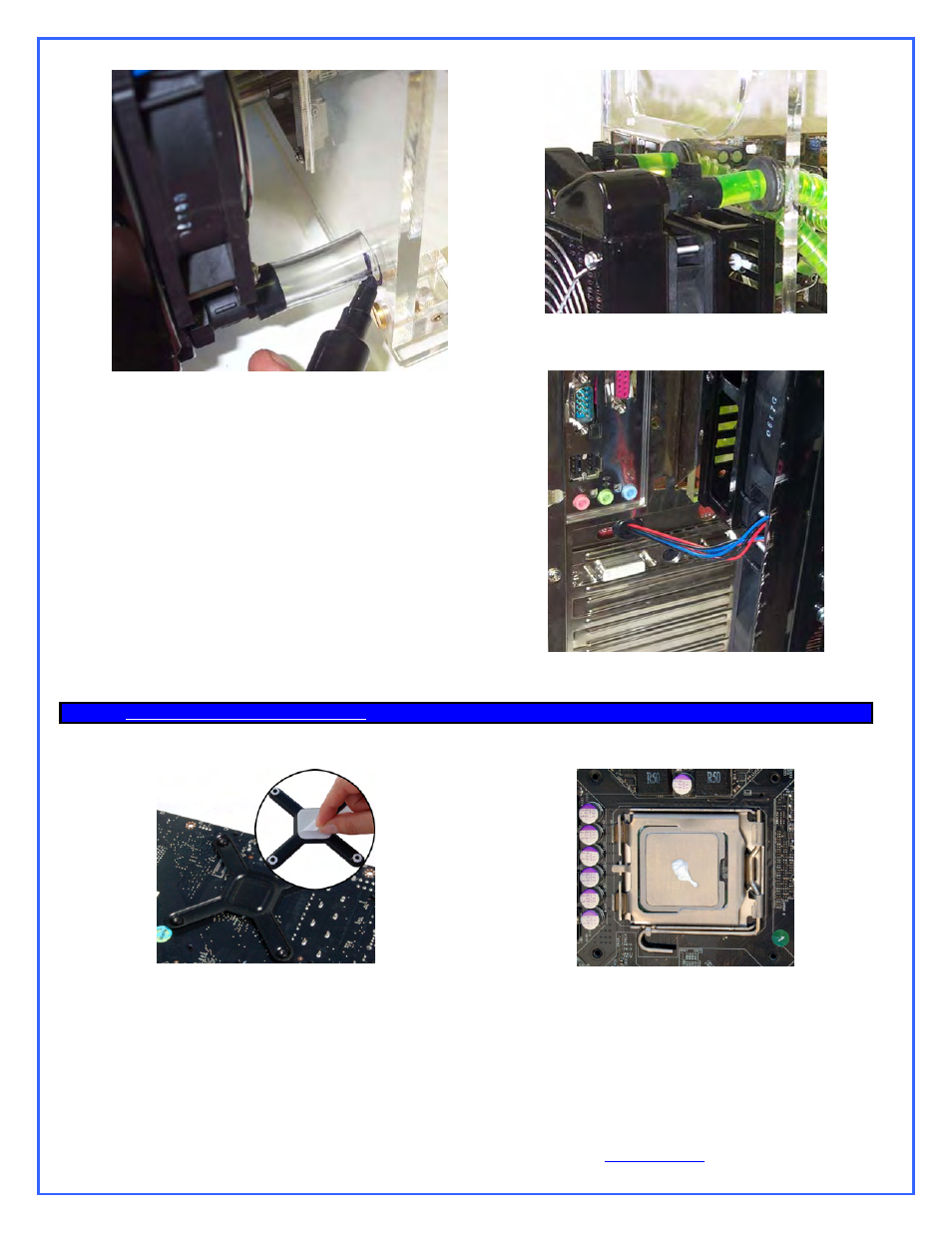

ƒ Finally, you need to route the fan wires through the back-
panel. This can be done easily with the provided PCI adapter
plate featuring a hole and grommet for protection of the wire.
ƒ Remove the radiator assembly from the back-plate and
mark the center of the circle.
ƒ Two rubber grommets are provided with your kit so that
you can route the tube though the case without damaging
the tubing with the sharp edges of the hole. The required
hole diameter for the grommet is 7/8” (23mm).
ƒ To cut the holes, use a heavy-duty Bimetal hole saw of
7/8” in diameter:
2. APOGEE GTZ W ATER - BLOCK INSTALLATION
‰ Installation with Intel® socket 775, Core™ 2, Core Duo, Extreme (default water-block configuration)
1. Install the back-plate 2. Prepare the CPU
Peel of the protective paper and apply the back-plate to the back of the
motherboard by firmly pressing its center. Clean the CPU with a degreaser (preferably formulated for electronics)
then apply the supplied grease to the center of the CPU.
