Swiftech H20 220 APEX ULTIMA PLUS User Manual
Page 12

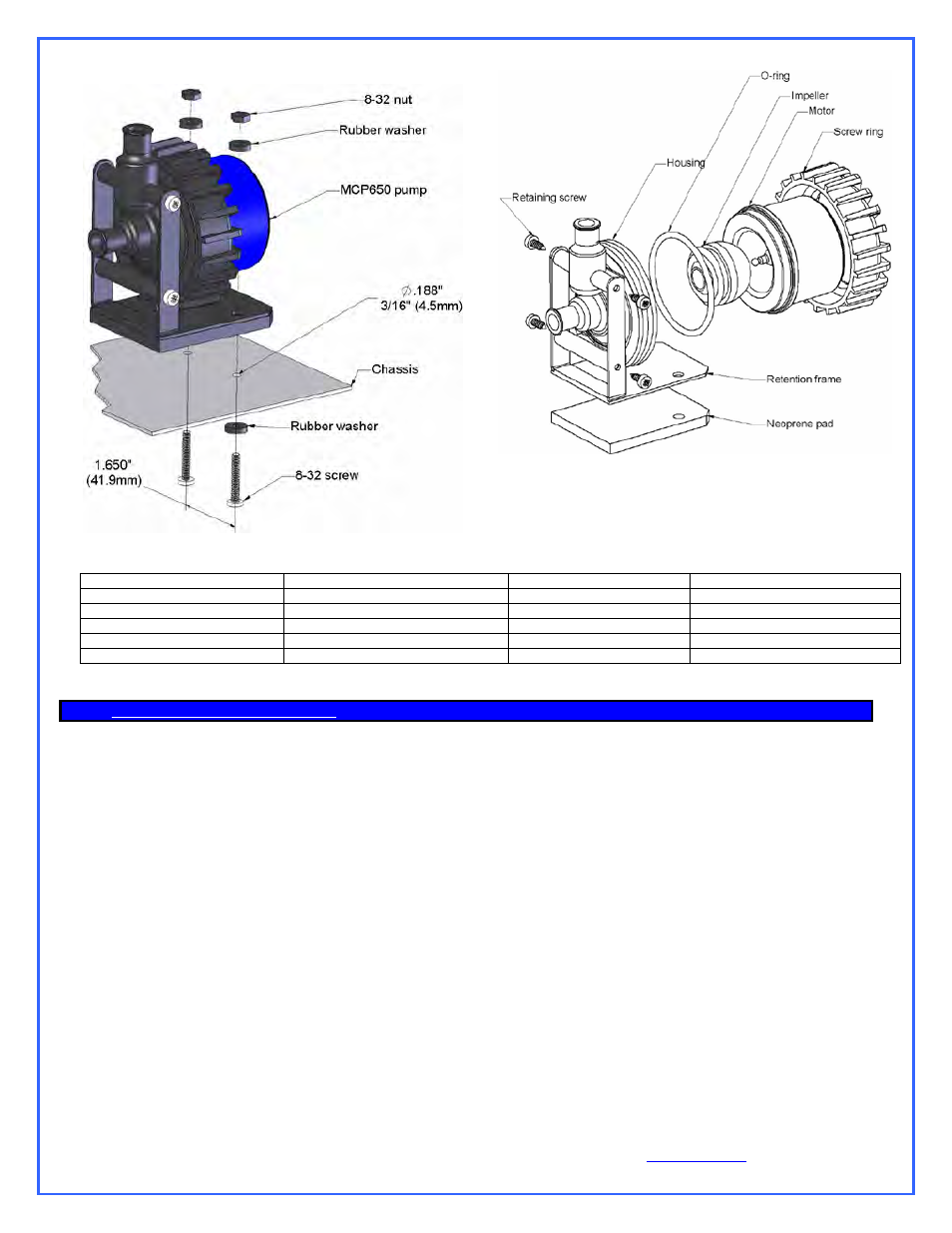

Permanent installation to the chassis, and exploded view
Nominal voltage / Connector
12 V DC / Molex 4 pin
Maximum pressure
50 PSI (3.5 BAR)
Operating voltage range
8 to 24 VDC
Maximum head
10 ft (3.1 m)
Nominal current (@ 12 V)
2 amps
Maximum discharge
~ 317 GPH (1200 LPH)
Nominal power (@ 12 V)
24 W
Temperature range
32 °F to 140°F (0 °C to 60 °C)
Motor type
Brushless, microprocessor controlled
Weight
1.4 LB (650 gr.)
Impeller Housing material
Noryl®
Connection size
½" barbs
