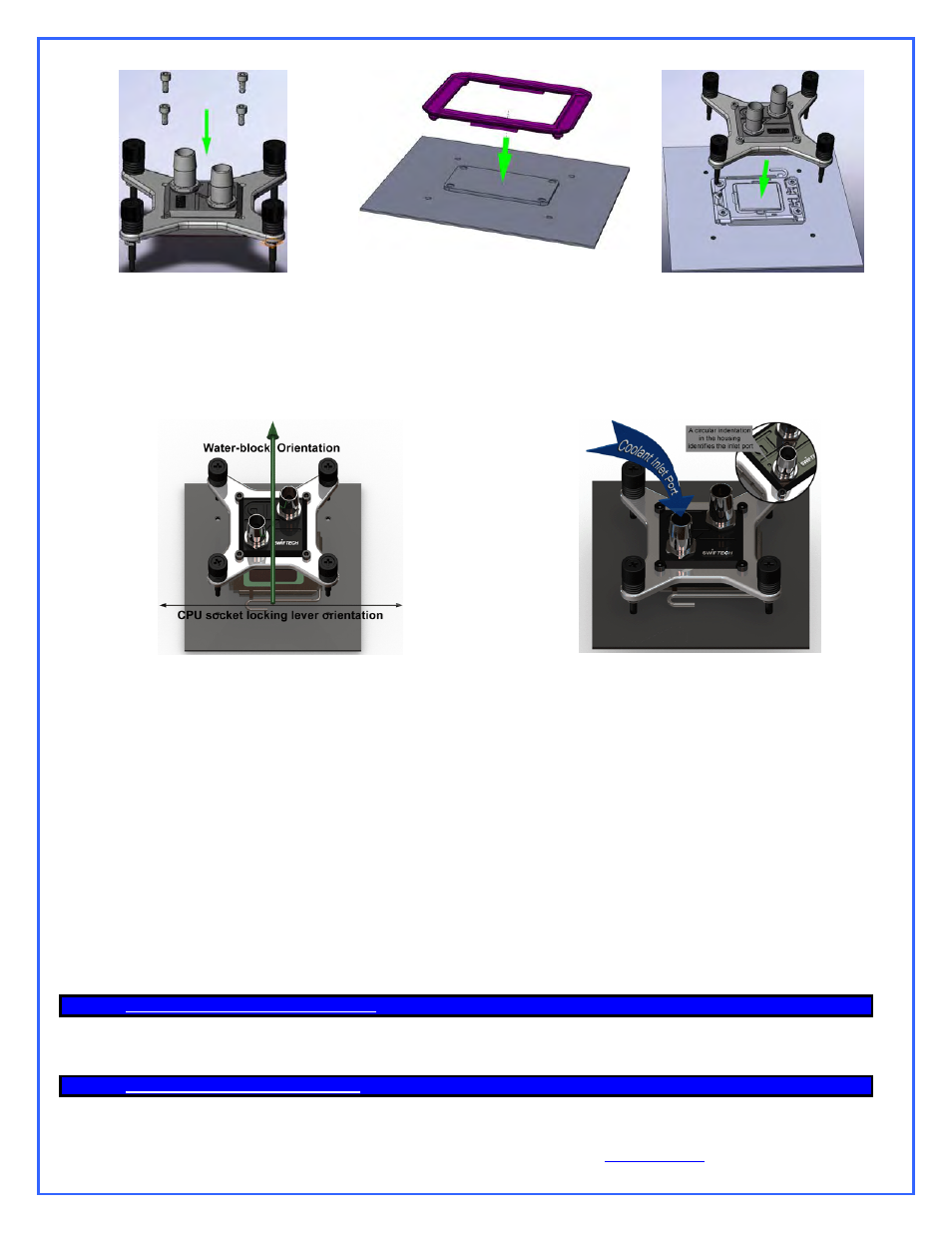

Figure 8
Figure 9 Figure 7
Fasten the hold-down plate assembly to the
Apogee™ GTZ water-block Peel-off the protective paper from all four foam
strips, and apply the back-plate against the
back of the motherboard. Perfect centering can
be achieved by slightly pushing one of the plate
standoffs into a motherboard hole, then by
squaring off the plate with the opposite hole. Apply thermal grease to the CPU, then
fasten the Apogee™ GTZ to the
motherboard by gradually tightening all four
screws in a cross pattern until they bottom
out.
Figure 11 Figure 10
When you are ready to install the tubing, you should first positively
identify the flow direction in your cooling system. The coolant should
enter the water-block inlet port which is identified by a circular
indentation in the housing next to it. As with socket 775, and for optimal performance it is critical to orient the
water-block properly relative to the socket. As illustrated above, the
waterblock North-South axis should always be perpendicular to the socket
locking lever, irrespective of the socket orientation relative to the motherboard.
‰ Installation with Intel® socket 1366 (Core™ i7) Server Solutions.
The Apogee GTZ socket 1366 hold down plate is fully compatible with Intel® socket 1366 (Core™ i7) server platforms and complies with Intel
specifications for server motherboards shipped with a Unified Retention System (URS). The Apogee GTZ simply bolts onto the existing URS
back-plate.
‰ Installation with Intel® legacy server platforms (socket 771, Xeon)
Please contact Swiftech Customer service for your free back-plate (see terms and conditions page 2)
‰ Installation with AMD® socket 754, 939, F and AM2
Please contact Swiftech Customer service for your free back-plate (see terms and conditions page 2)
3. MCW30 C HIPSET WATER - BLOCK INSTALLATION
Please refer to the separate installation guide inlcuded with the MCW30 water-block.
4. MCW60 VGA WATER - BLOCK INSTALLATION
