5
Installation
Oven Assembly

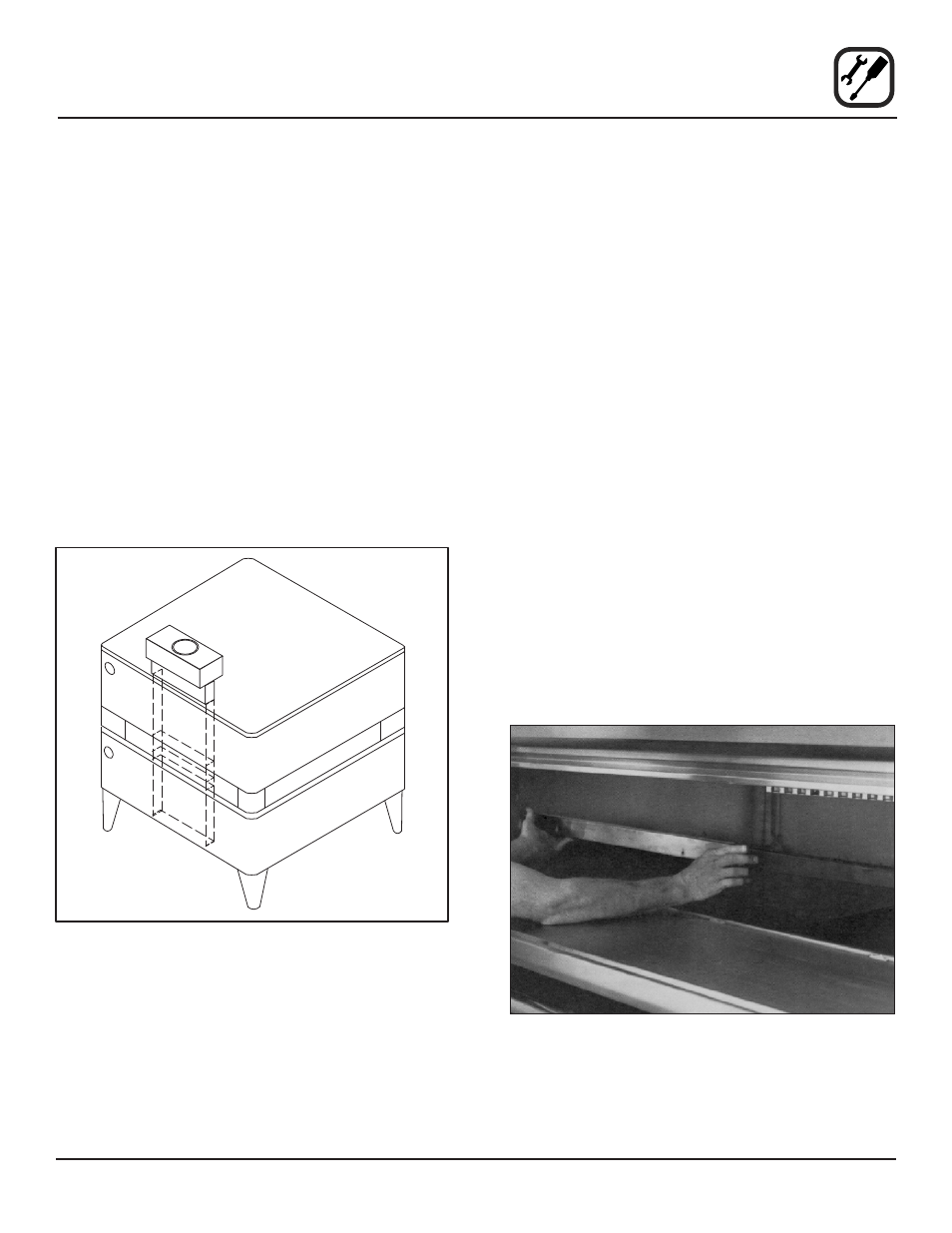

DOUBLE SECTION ASSEMBLY
1. Fasten 12” (305 mm) legs to lower section.
2. Remove the sheet metal flue cover on bottom of UP-
PER SECTION FLUE ONLY and save the two screws.
3. Fasten crown angle leg frame to upper sections.
4. Insert double oven flue connector into upper oven
section flue until it is flush with the base angle. Tem-
porarily hold in place with tape.
5. Install upper section on bottom section.
6. Remove tape and slide flue connector into position
over the collar of the bottom section.
7. Fasten flue connector to bottom section with screws
from the flue cover.
8. Install drafthood or draft diverter with screws provid-
ed.
Figure 1
3 PIECE DEFLECTOR ASSEMBLY
1. Deflectors are shipped in place in the oven. No as-
sembly is required.
2. Remove the shipping clip located in the back center
of each deflector before inserting two-piece shelf as-
sembly.
ULTRA ROKITE SHELVES
1. Slide the 12” wide Ultra Rokite shelf through the door
opening to the rear of the oven until it drops into the
shelf support.
2. Slide one of the two 24” wide shelves through the
door opening to the rear on the center shelf until it is
within the shelf support. Slide all the way to the left
until it drops down in place.
3. Slide the other 24” wide shelf through the door open-
ing to the rear on the center shelf until it is within the
shelf support. Slide all the way to the right until it
drops down in place.
4. Pry the three sections inward so the joints close.
5. Install the deck seal between the door and the frame.
NOTE: Due to the weight of the Ultra Rokite shelves,
take care to avoid injury to yourself or dam-
age to the shelves when sliding sections into
the oven.
Figure 2
