AT-MR908TX Installation Manual
27
Product Models
Six different models of the AT-MR908TX hub are available, depending on voltage,
power cords, and configuration options. Table 6 details the six model types.

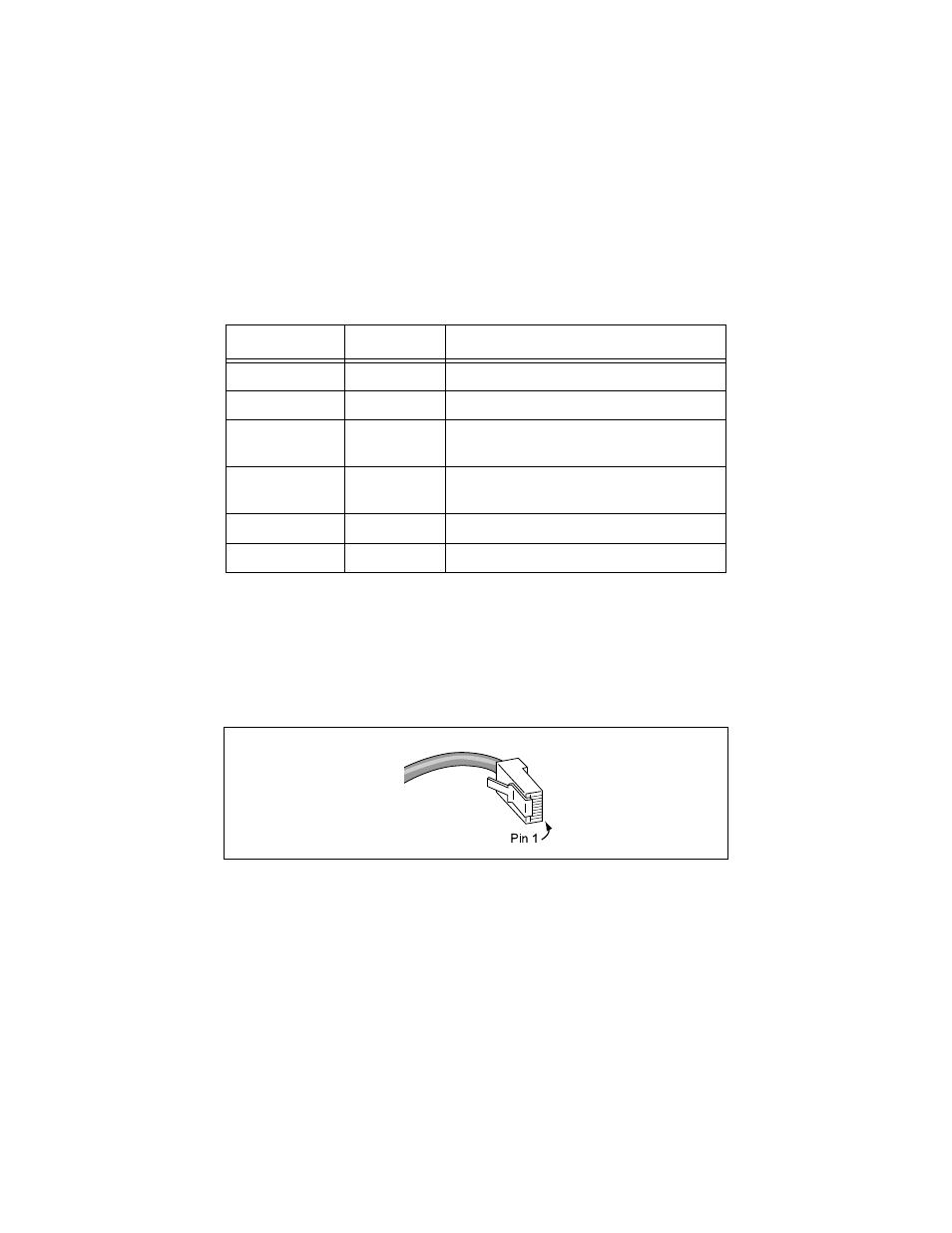

Table 6: AT-MR908TX Models
UTP (RJ-45) Connector
An RJ-45 connector is shown in Figure 11. For a 100BASE-TX link between hubs,
switches, repeaters—any two Medium Attachment Units (MAUs)—you will need
a crossover cable. For a connection to a Network Interface Controller (NIC), the
cable is wired straight through.
Figure 11: RJ-45 Connector
Model Number Configuration Voltage/Power Cord Requirement
AT-MR908TX-10A Standalone 100-120 VAC; power cord for U.S.
AT-MR908TX-19A Stackable 100-120 VAC; power cord for U.S.
AT-MR908TX-20A Standalone 200-240 VAC; power cord for Continental
Europe
AT-MR908TX-29A Stackable 200-240 VAC; power cord for Continental
Europe
AT-MR908TX-30A Standalone 200-240 VAC; power cord for United Kingdom
AT-MR908TX-39A Stackable 200-240 VAC; power cord for United Kingdom
