AT-MCR1 Media Converter Chassis Installation Guide
39
Warning
Do not strip more than the recommended amount of wire.
Stripping more than the recommended amount can create a
safety hazard by leaving exposed wire on the terminal block
after installation.
E10
3. Connect the frame ground wire to the terminal marked with
the ground symbol by inserting the wire into the terminal and
tightening the connection with a flathead screwdriver, as
shown in Figure 20 on page 39.
Warning
When installing this equipment, always ensure that the power
supply ground connection is installed first and disconnected
last.
E11

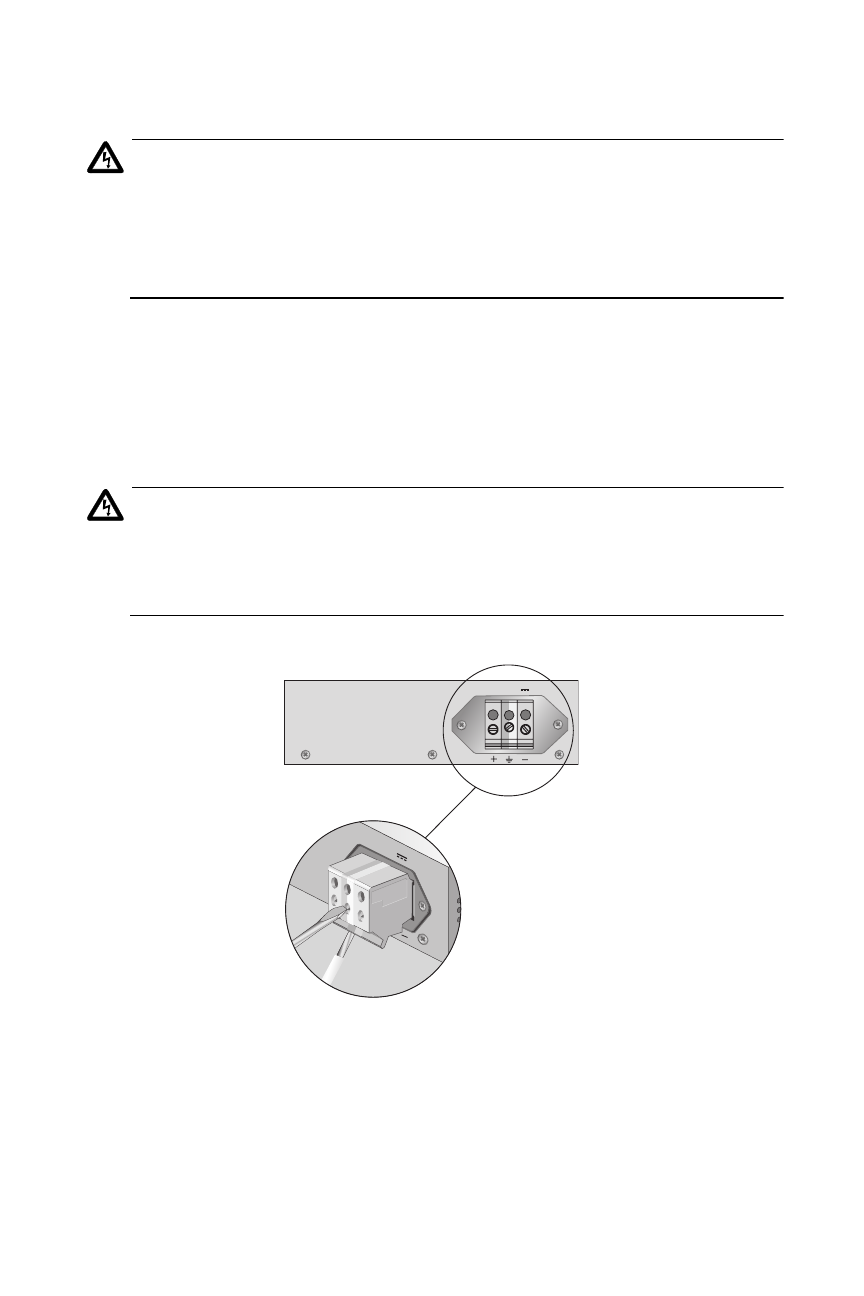

Figure 20. Inserting Wires into a DC Terminal Block
4. Connect the positive feed wire to the terminal block marked
(+).
40-60VDC
1059
40-60V
DC
