AT-MCR1 Media Converter Chassis Installation Guide
35
3.
Plug the power cord into the power connector on the back of
the chassis, as shown in Figure 16.

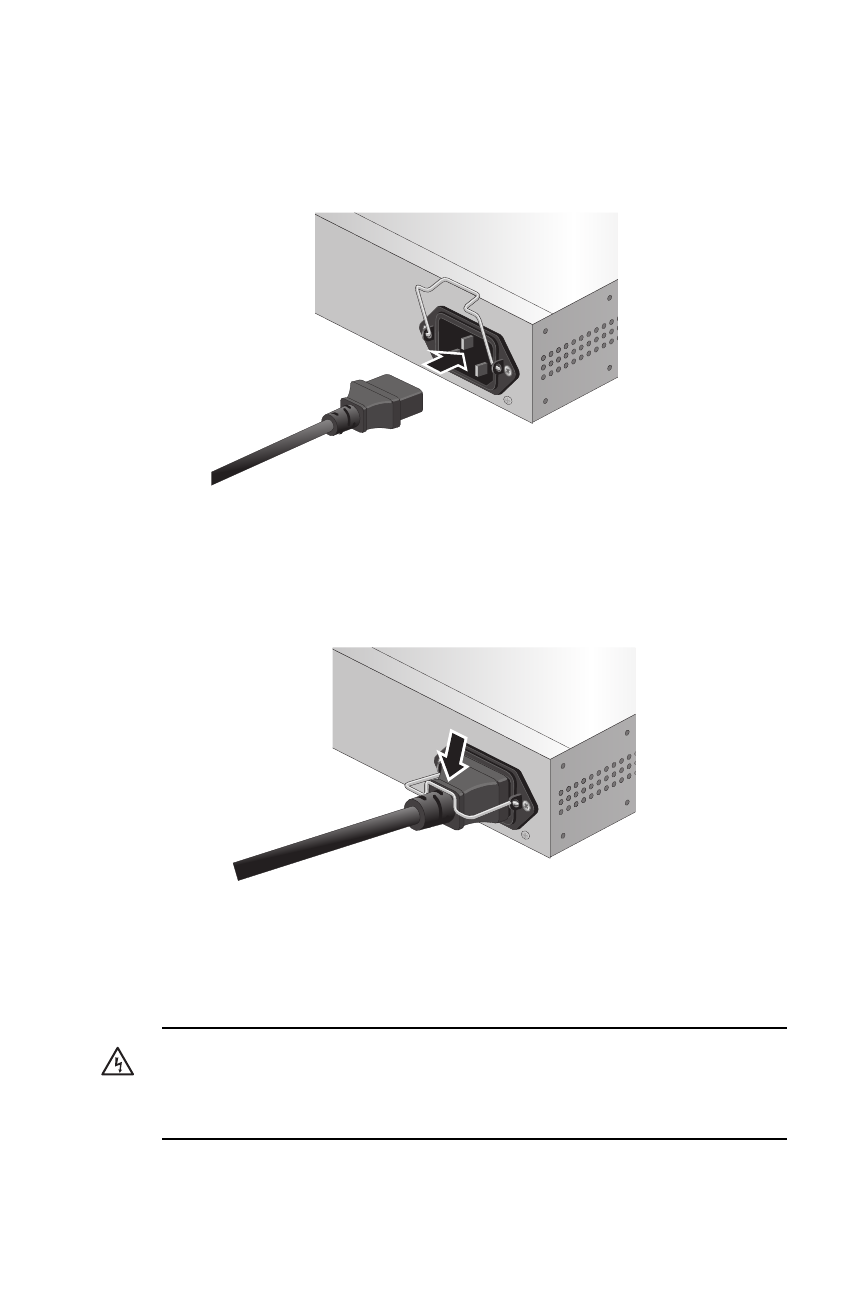

Figure 16. Plugging the Power Cord into the Chassis
4.
Secure the cord by lowering the power cord retaining clip, as
shown in Figure 17.
Figure 17. Securing the Power Cord with the Retaining Clip
5.
Plug the other end of the power cord into a wall outlet.
Warning: Power cord is used as a disconnection
device. To de-energize equipment, disconnect the
power cord.
