Chapter 2: Installation
30

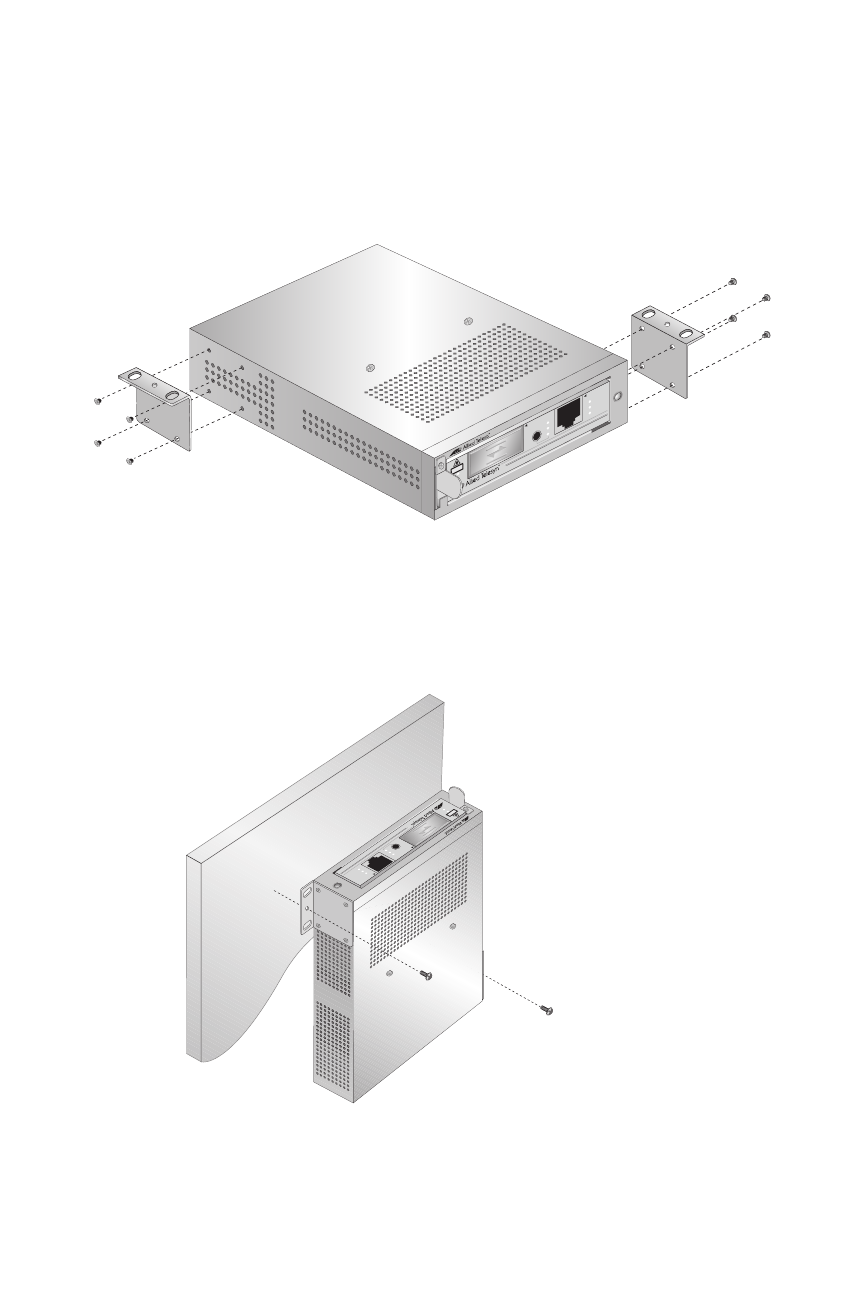

3. Turn the chassis over and attach a mounting bracket
(provided) to each side of the chassis using the bracket
mounting screws (provided), as shown in Figure 10.
Figure 10. Attaching the Brackets for Wall Mounting
4. Position and mount the chassis on the wall using the
mounting screws, as shown in Figure 11.
Figure 11. Mounting the Chassis on the Wall
