Powering On an AC-Powered Chassis
To apply power to an AC-powered AT-MCR1 chassis, perform the
following procedure:
1.
Install the retaining clip on the chassis, as shown in
Figure 14.

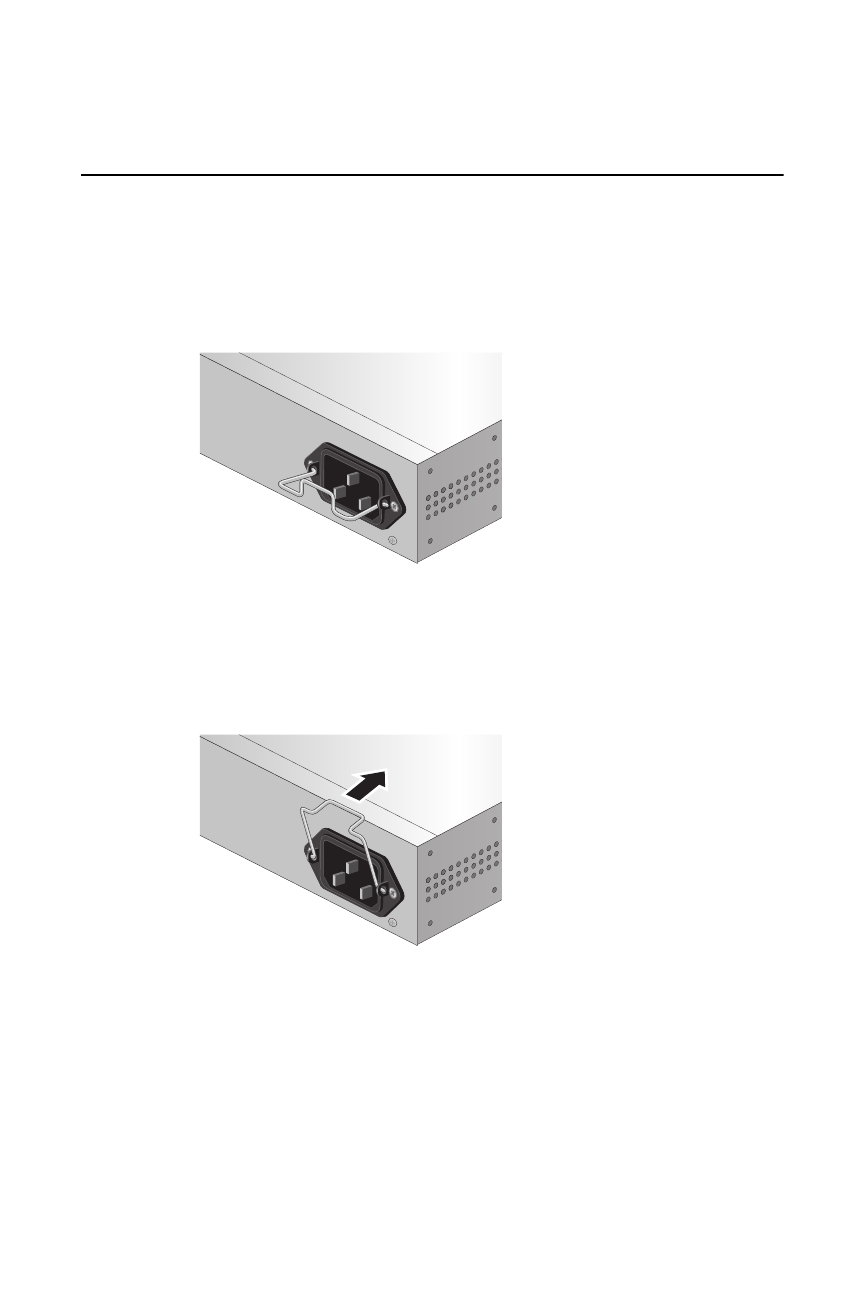

Figure 14. Installing the Power Cord Retaining Clip
2.
Position the power cord retaining clip in the up position, as
shown in Figure 15.
Figure 15. Power Cord Retaining Clip in the Up Position
1022
100-240V
AC ~
1023
100-240V
AC ~
