Section I: Outdoor Installation 65
3. Connect the LAN cables to the RJ-45 ports on the gateway, and
secure the wires with a wire tie, as shown in Figure 44.

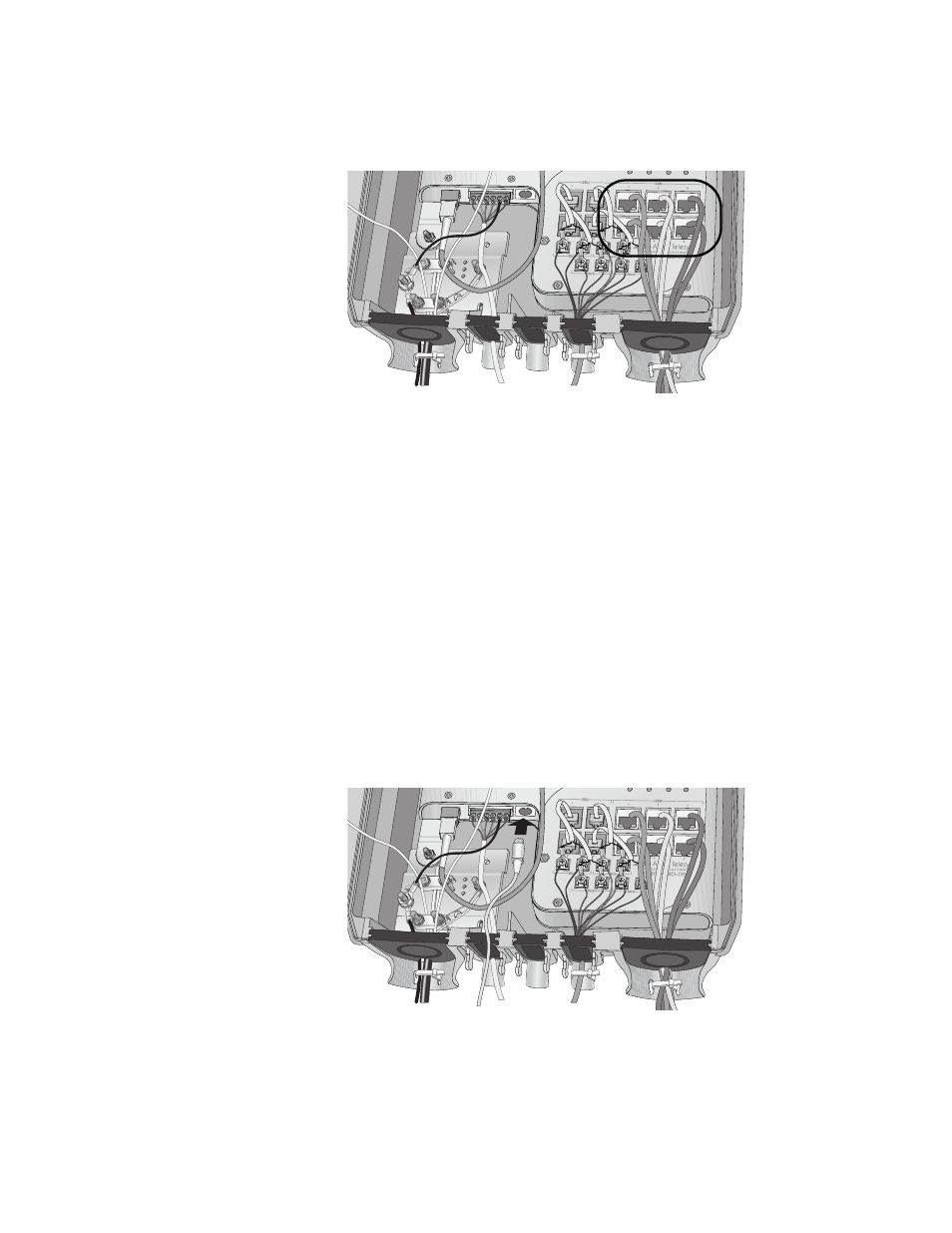

Figure 44. Connecting the LAN Cables
4. Cut a notch into the bottom of the grommet to accommodate the LAN
cables and reinsert the grommet.
5. Trim the wire tie and seal the grommet with tape and silicone sealant.
Completing the
Installation
To complete the installation, perform the following procedure:
1. Install an uninterruptible power supply according to the manufacturer’s
instructions.
2. Plug the power cable from the gateway into the UPS.
3. Turn on the UPS.
4. If necessary, plug the management cable into the console port, as
shown in Figure 45.
Figure 45. Connecting the Management Cable
