Chapter 3: Installing the Enclosure
42 Section I: Outdoor Installation
10. Position the cable so that the opened shielding goes under the
strength member clamp and the closed portion of the cable is about
.25 in. beyond the drop cable clamp posts as shown in Figure 16

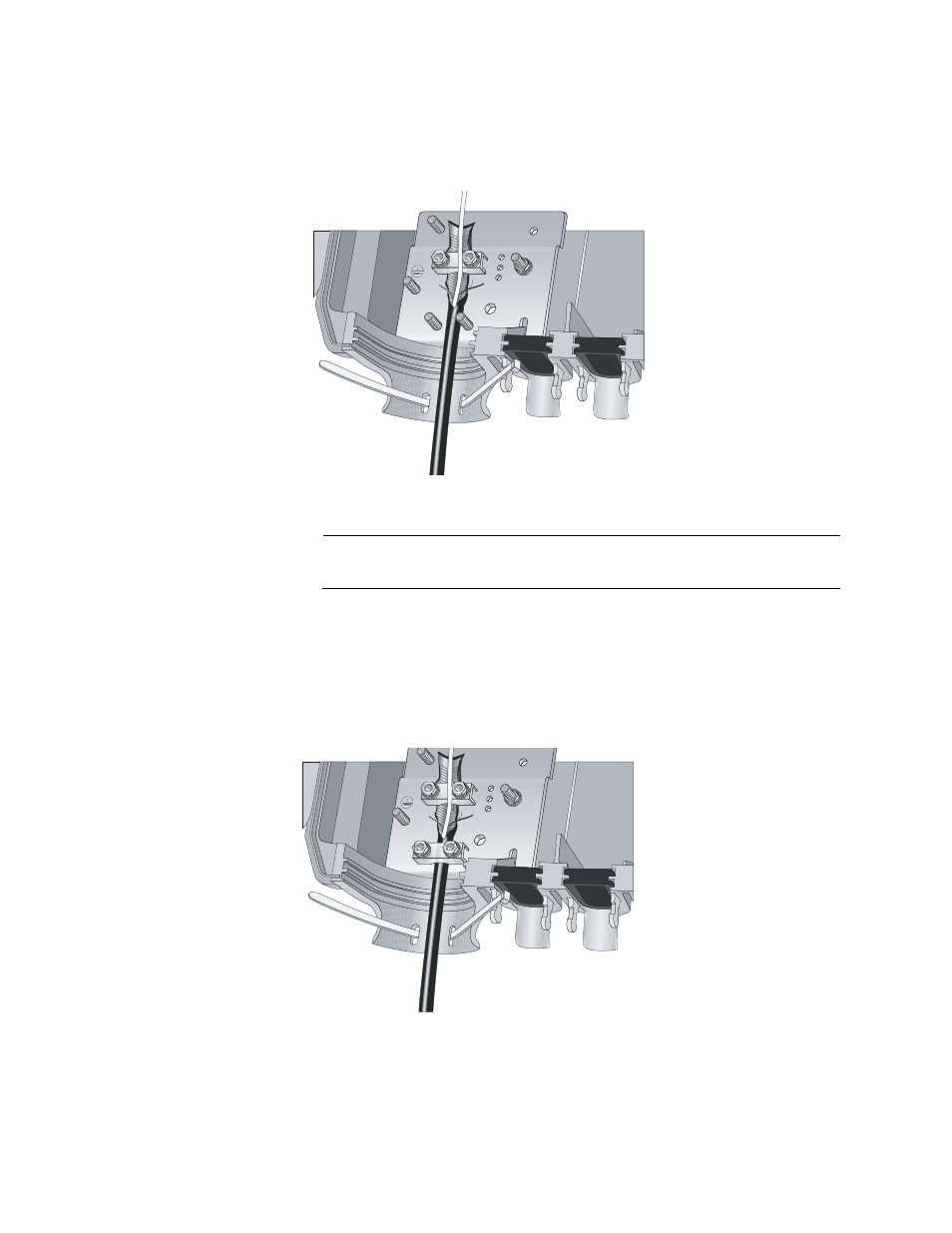

Figure 16. Positioning the Cable
Note
Make sure that the fiber optic cable is not secured by either clamp.
11. Tighten the Kepnuts on the strength member clamp to between 10 and
12 in-lbs to ground the shielding.
12. Replace the bar, washers, and Kepnuts on the posts of the drop cable
clamp and tighten the Kepnuts to secure the cable, as shown in
Figure 10, to between 10 and 12 in-lbs.
Figure 17. Armored Drop Cable Secured to the Grounding Plate
