AT-iMG646xx Series Intelligent Multiservice Gateway and AT-EN646 Enclosure Installation Guide
Section I: Outdoor Installation 33
Mounting the Enclosure
To mount the AT-EN646 enclosure, perform the following procedure:
1. Remove all components from the shipping package.
Note
Store the packaging material in a safe location. You must use the
original shipping material if you need to return the unit to Allied
Telesis.
2. Ensure that the following components are included in the enclosure
package. If any item is missing or damaged, contact your Allied Telesis
sales representative for assistance.
ˆ AT-EN646 enclosure
ˆ This installation guide
ˆ Accessory kit that contains the grounding plate; four small, black
wire ties; a self-tapping screw, one Kepnut and one ring lug.
ˆ Fusion splice tray
3. Choose an outdoor location (indoor mounting is also acceptable) for
the enclosure that is close to the power source. The enclosure must be
mounted within 50 cable feet of the power supply.
4. Using the enclosure as a template, mark the three mounting holes on
the wall, as shown in Figure 4, and prepare a mounting hole in the wall
for each opening.

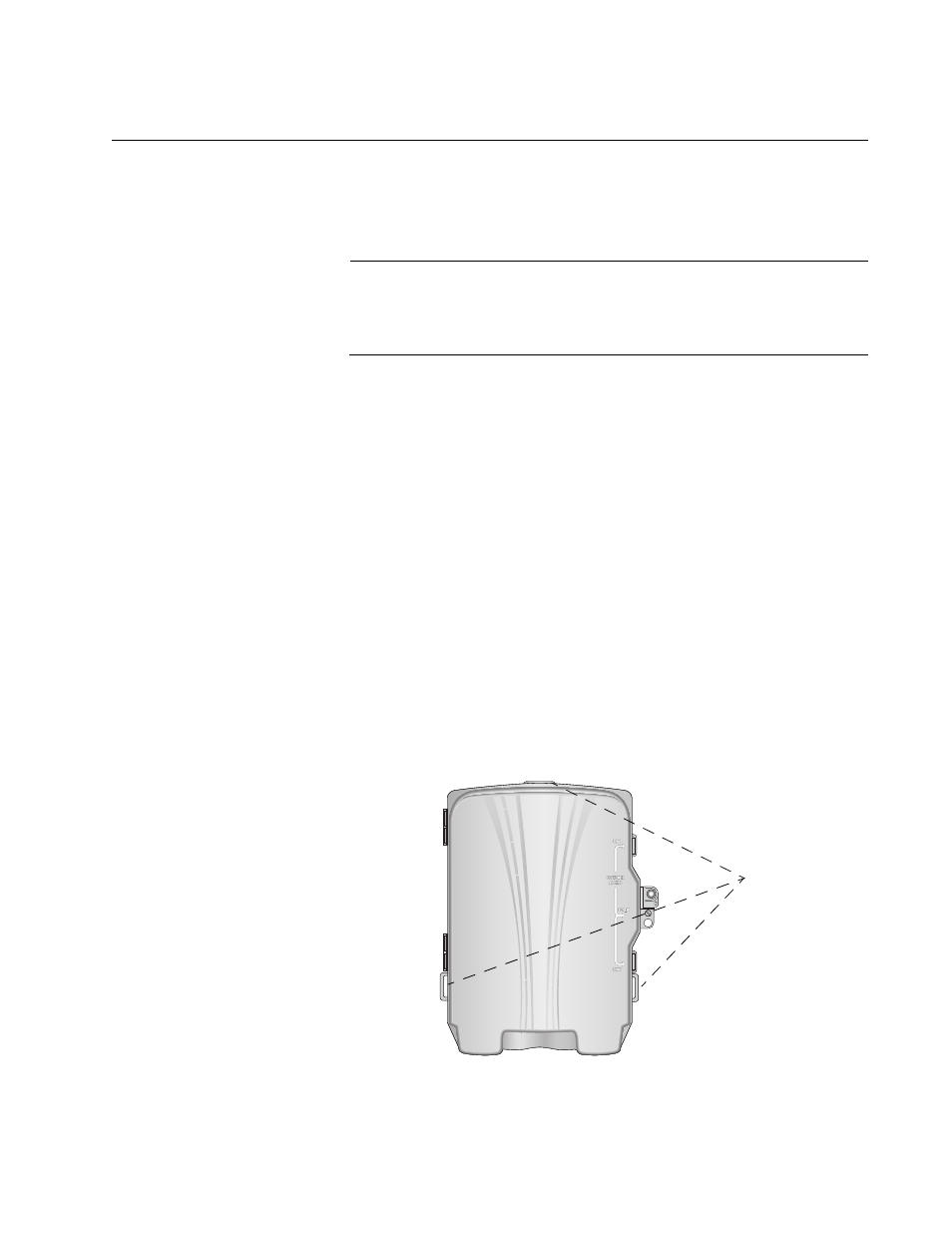

Figure 4. Mounting Hole Locations
840
Mounting Holes
