Chapter : Technical Specifications
54
Agency Certifications
RFI Emissions FCC Class B, EN55022 Class B,
C-TICK, CE
Immunity EN55024
Electrical Safety EN60950 (TUV), UL 60950 (
C
UL
US
)
Standard IEEE 802.3, IEEE 802.3u
RoHS RoHS/China RoHS compliant
MTBF 580,000 Hrs
10/100Base-TX Port Pinouts

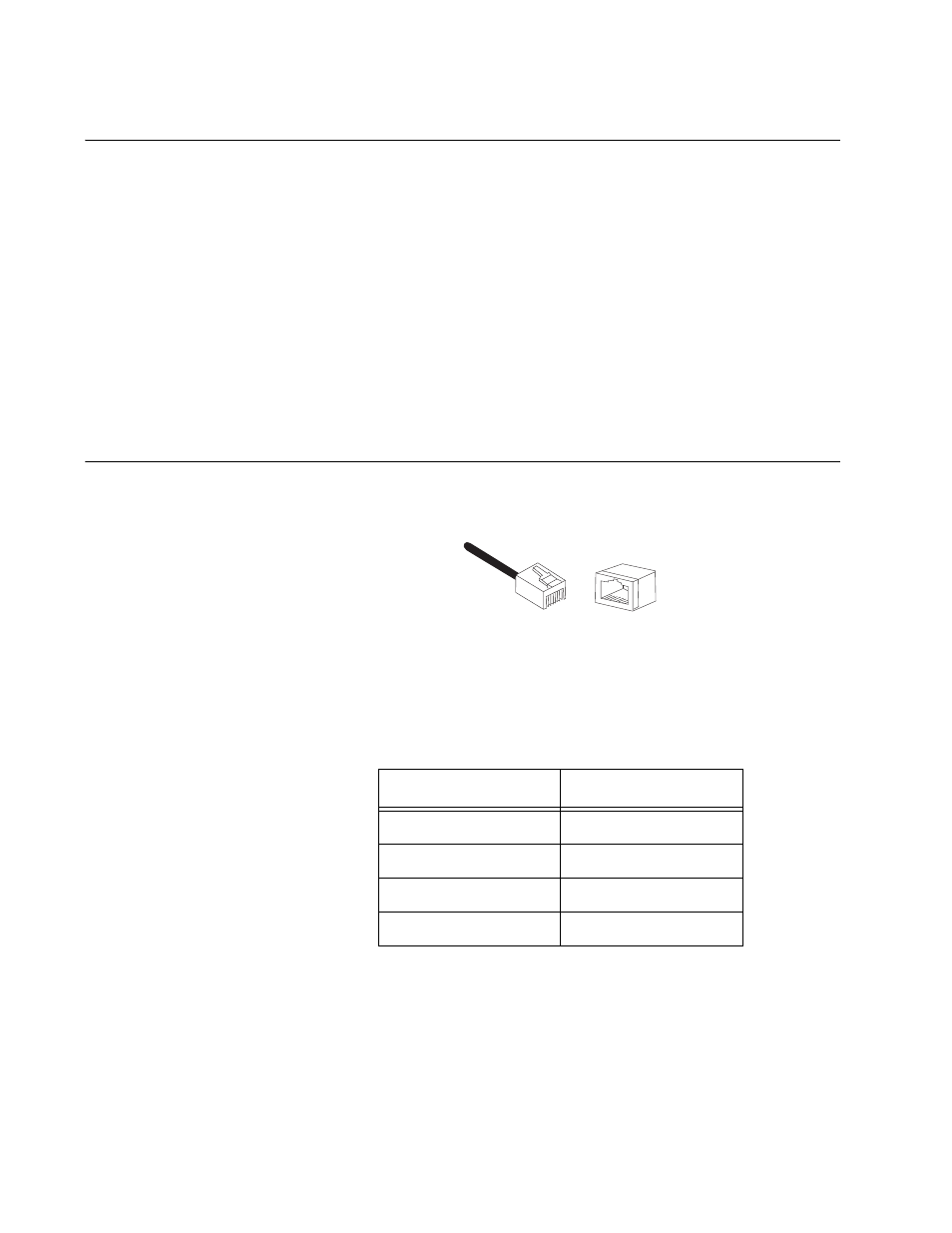

Figure 17 illustrates the pin layout to an RJ-45 connector and port.
Figure 1. RJ-45 Connector and Port Pin Layout
Table 11 lists the RJ-45 pin signals when the twisted pair port is operating
in the MDI configuration at 10 or 100 Mbps.
Table 1. MDI Pin Signals (10/100Base-TX)
Pin Signal
1 TX+
2 TX-
3 RX+
6 RX-
8
8
1 1
