AT-PC232/POE Media Converter Installation Guide
47
3. Lower the power cord retaining clip to secure the cord to the AT-
PC232/POE Media Converter, as shown in Figure 16.

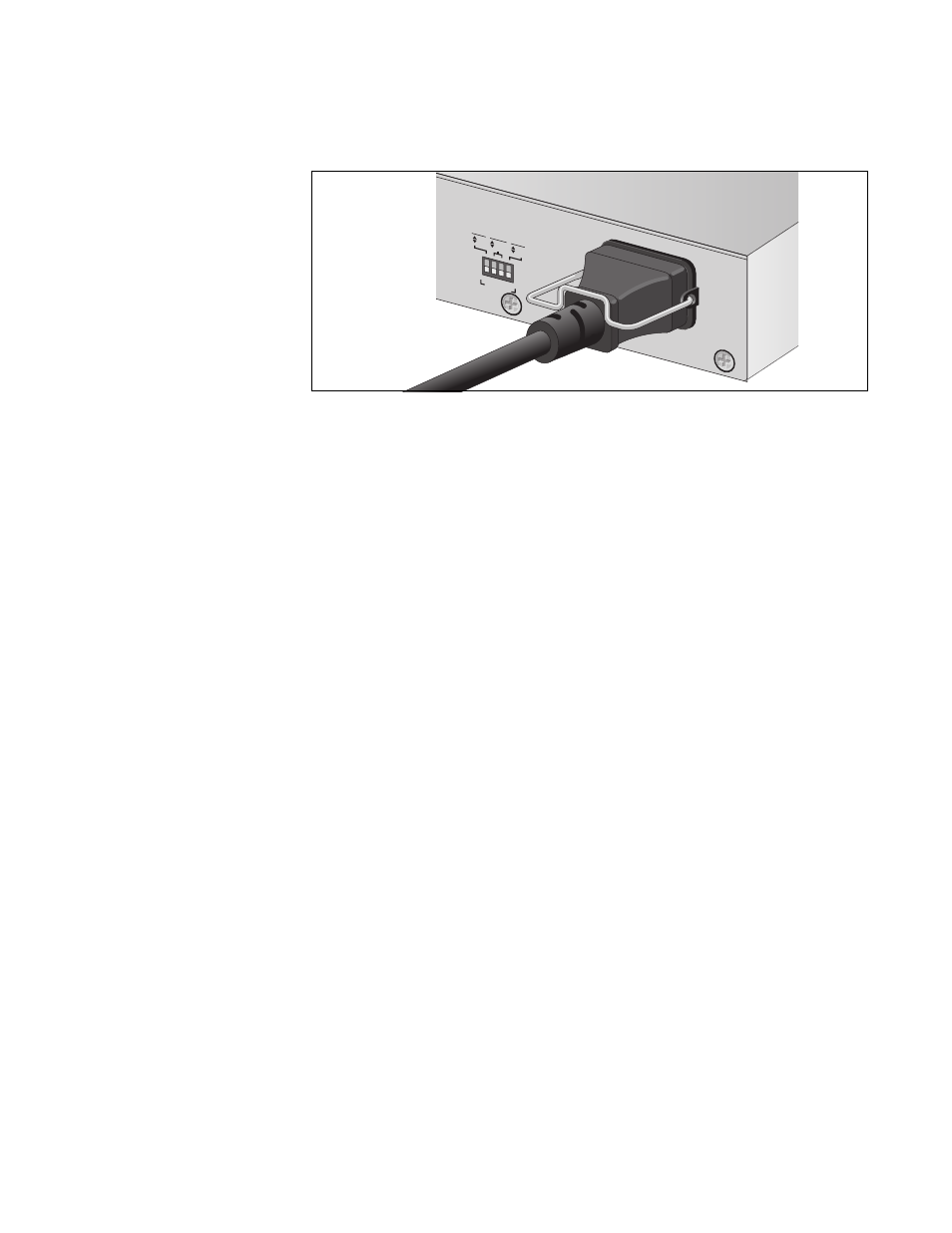

Figure 16. Securing the Power Cord with the Retaining Clip
4. Connect the other end of the power cord to an appropriate AC power
outlet. For the power specifications of the media converter, refer to
“Electrical Rating” on page 53.
The AT-PC232/POE Media Converter is now ready for network
operations.
1 2 3 4
10
100
SPEE D (Mbps)
OFF
ON
AUTO
NEG HALF
FULL
DUPLE
X MODE
2
POR
T
1 2
2
100-240
VAC ~
1382
