Chapter 2: Installation
46
Applying AC Power
To apply AC power to the AT-PC232/POE Media Converter, perform the
following procedure:

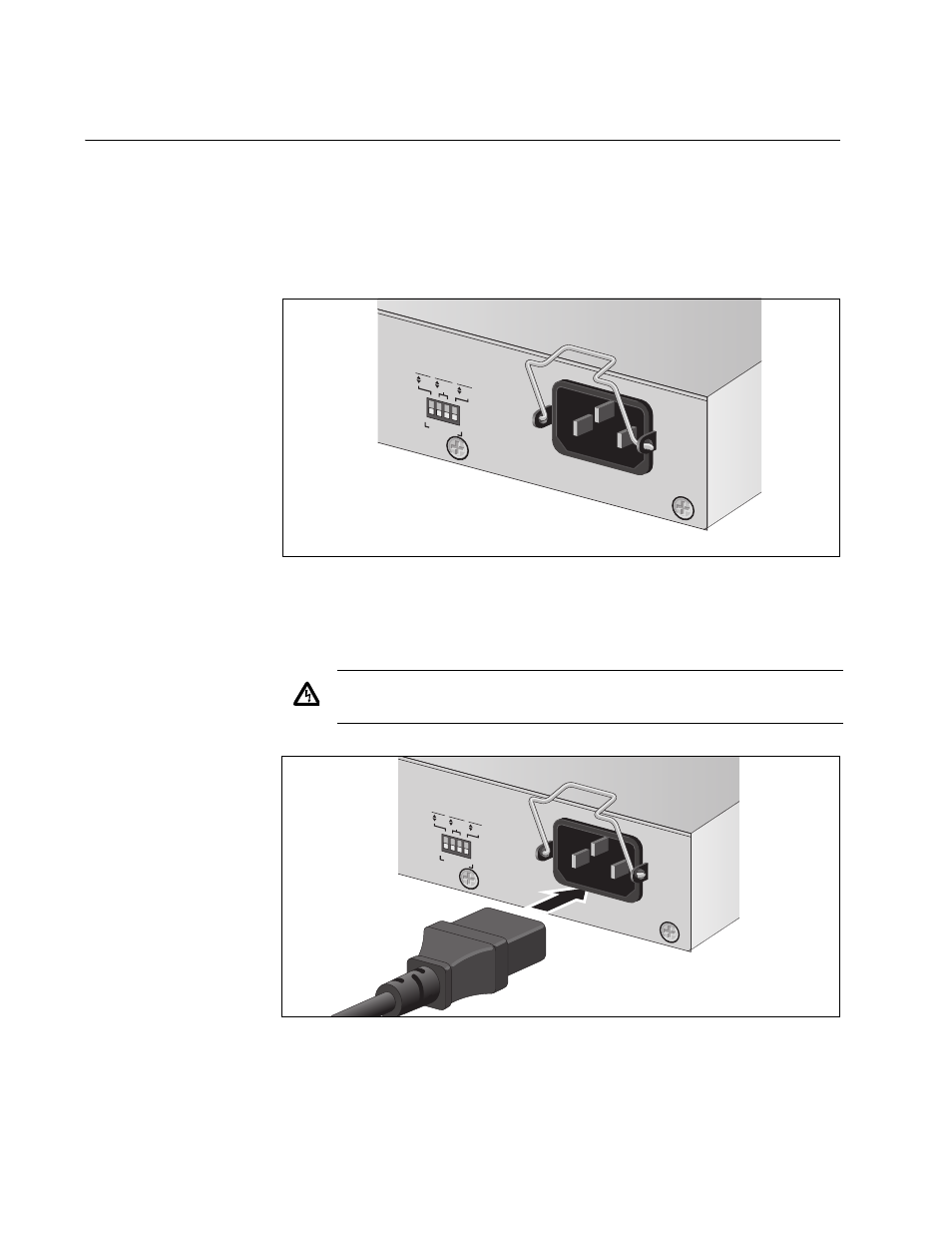

1. Position the power cord retaining clip in the up position, shown in
Figure 14.
Figure 14. Power Cord Retaining Clip in the Up Position
2. Plug the power cord into the AC power connector on the back panel of
the unit shown in Figure 15.
.
Figure 15. Connecting the AC Power Cord
Warning: Power cord is used as a disconnection device. To de-
energize equipment, disconnect the power cord.
E3
1 2 3 4
10
100
SPEE D (Mbps)
OFF
ON
AUTO
NEG HALF
FUL L
DUPL EX MOD E
2
POR
T
1 2
2
100-240V
AC ~
1381
1 2 3
4
10
100
SPEE D (Mbps)
OFF
ON
AUTO
NEG HAL F FUL L
DUPL EX MOD E
2
POR T
1 2
2
100-240V
AC ~
1378
