AT-PC232/POE Media Converter Installation Guide
41
Cabling the Ports
Perform the following procedures to connect the network cables on the
AT-PC232/POE Media Converter.
Cabling the Fiber
Optic Ports
To connect to the fiber optic port (Port 1) on the AT-PC232/POE Media
Converter, perform the following procedure.
1. Remove the dust cover from the fiber optic port, as shown in Figure 8
on page 41.

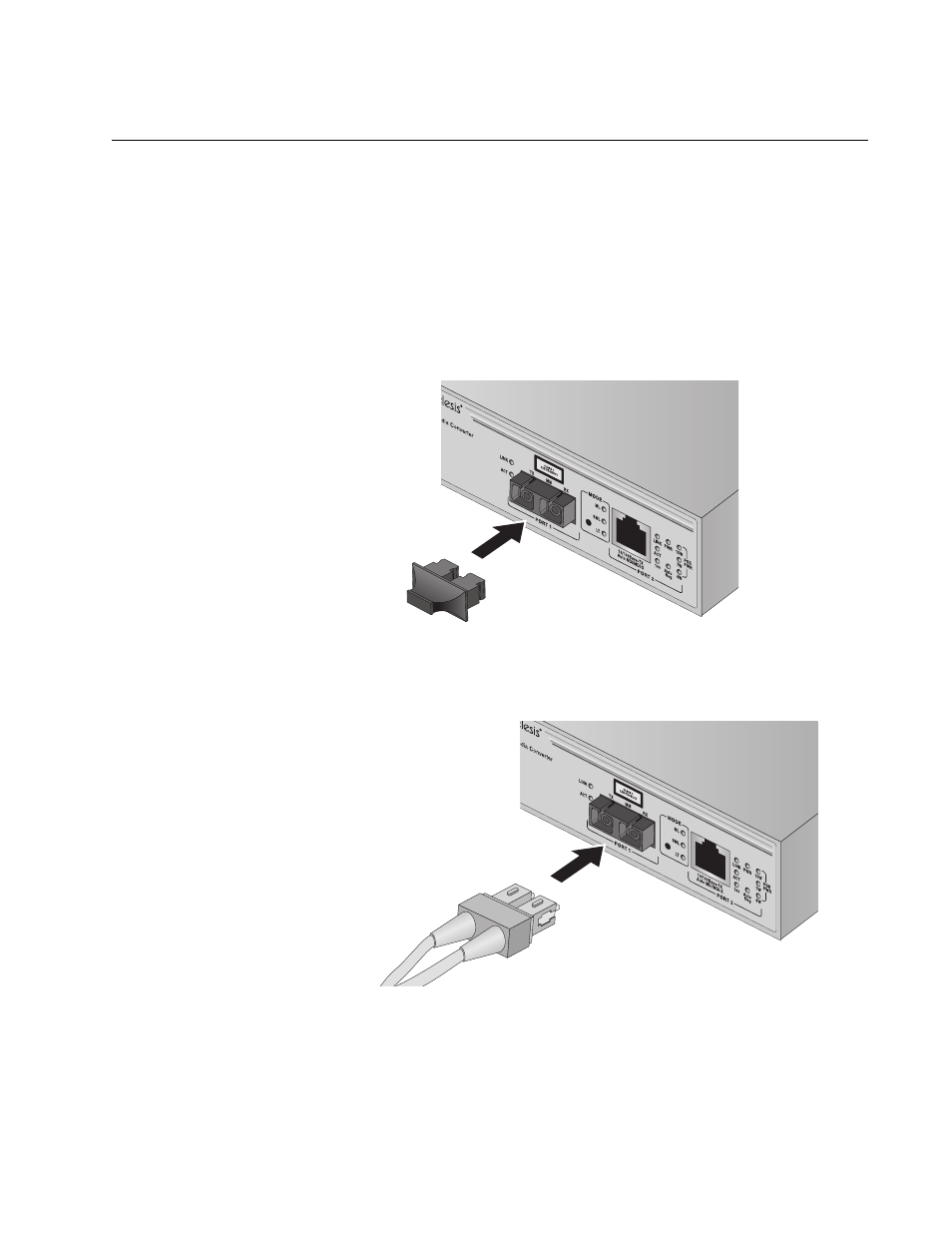

Figure 8. Removing the Dust Cover from the Fiber Optic Port
2. Connect the fiber optic cable to the port, as shown in Figure 9 on page
41.
Figure 9. Connecting to the Fiber Optic Ports
When attaching a fiber optic cable, observe the following guidelines:
❒
Be sure that the cable connector firmly locks into place in the port.
