Appendix A: Technical Specifications
60
Agency Certifications
RFI Emissions FCC Class B, EN55022 Class B,
C-TICK, CE
Immunity EN55024
Electrical Safety EN60950 (TUV), UL 60950 (
C
UL
US
)
Standard IEEE 802.3, IEEE 802.3u
RoHS RoHS/China RoHS compliant
MTBF 550,000 Hrs
10/100/1000Base-T Port Pinouts

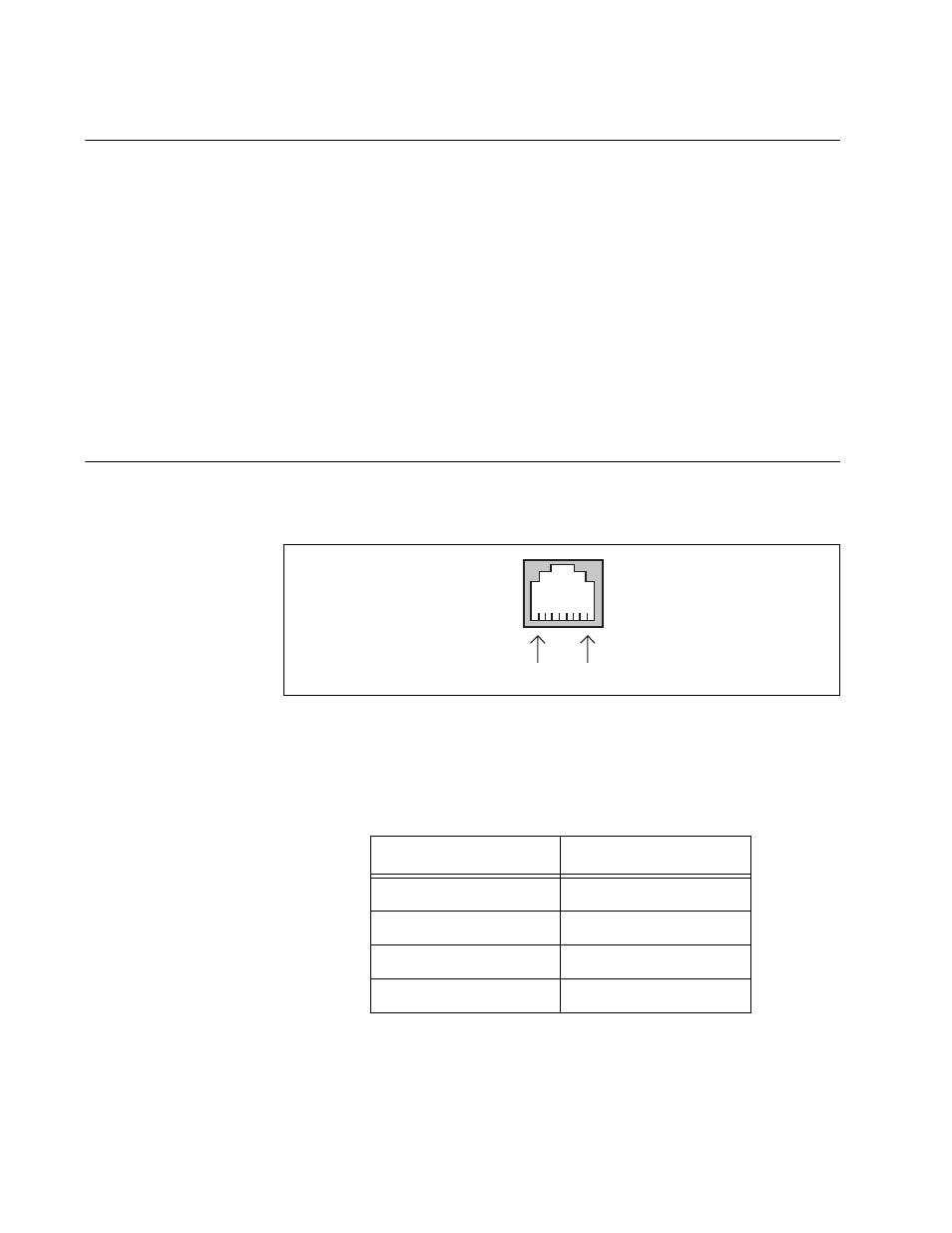

Figure 14 illustrates the pin layout to an RJ-45 connector and port.
Figure 14. RJ-45 Connector and Port Pin Layout
Table 12 lists the RJ-45 pin signals when the twisted pair port is operating
in the MDI configuration at 10 or 100 Mbps.
Table 12. MDI Pin Signals (10 or 100 Mbps)
Pin Signal
1 TX+
2 TX-
3 RX+
6 RX-
Pin 1 Pin 8
