Introduction

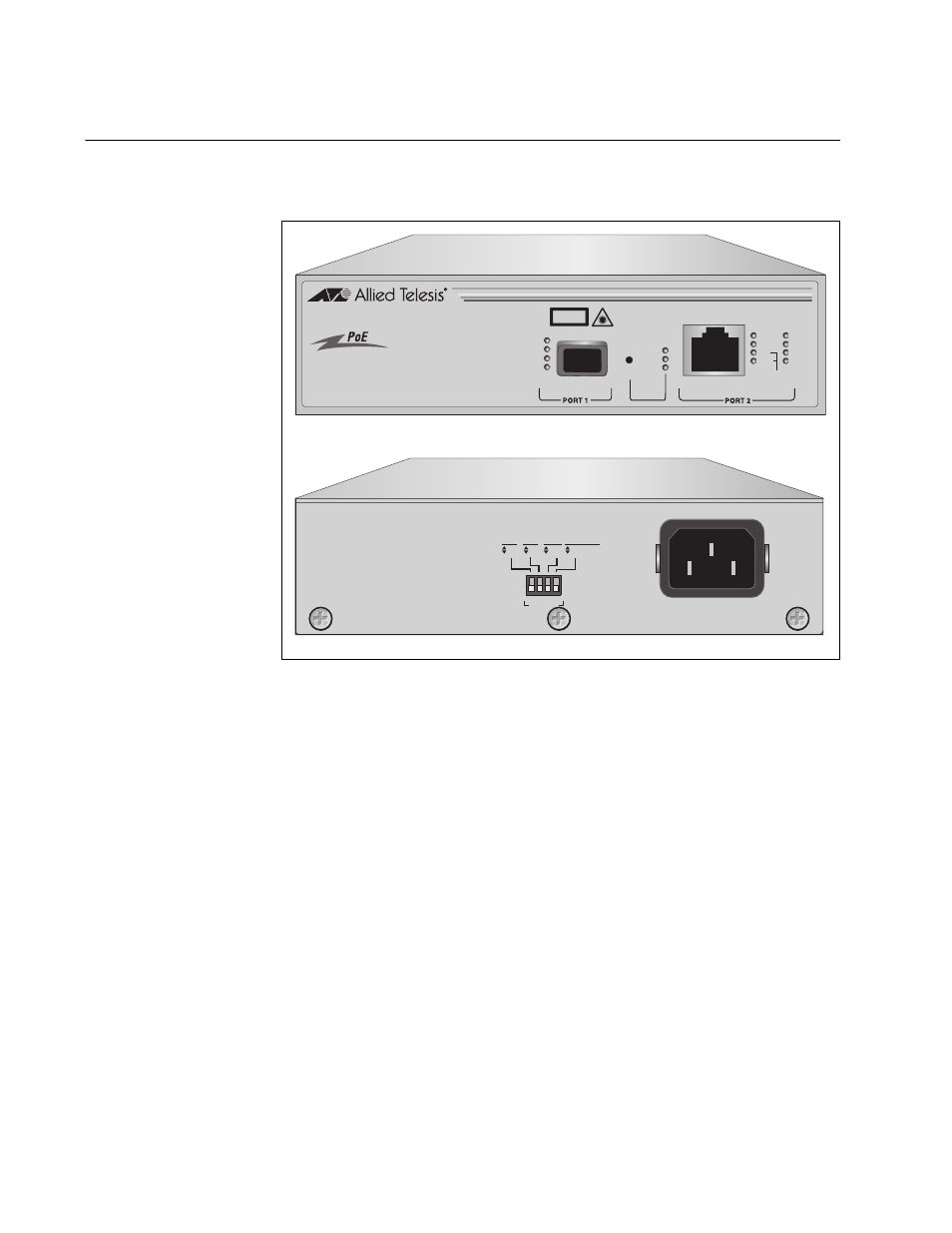

Figure 1 illustrates the front and back panels of the media converter.
Figure 1. AT-PC2002/POEE Media Converter
The AT-PC2002/POE Media Converter has the features listed here:
❒
One 10/100/1000Base-T twisted pair port featuring:
– IEEE 802.3u Auto-Negotiation
– IEEE 802.3af Power over Ethernet (PoE) with 15.4 W
of power for a powered device
– Half- or full-duplex mode
– Auto-MDI/MDI-X
– RJ-45 connector
– Back pressure in half-duplex mode at 10 or 100 Mbps
– IEEE 802.3x flow control in full-duplex mode at 10,
100, or 1000 Mbps
❒
One slot for a 100Base-FX or 1000Base-X SFP module
❒
Jumbo Ethernet frames of up to 9,000 bytes in the payload
❒
DIP switches for configuring the ports
