Chapter 1: Overview
34
As illustrated in the next topology, the media converter can also be
deployed at a central office if the remote devices have fiber optic ports. In
the example, the media converters are connected to the AT-9424Ts
Gigabit Ethernet Switch at the central office with twisted pair cable and to
the remote devices, in this case AT-GS950/16 Gigabit Switches that have
SFP transceivers, over fiber optic cables. Since the AT-9424Ts Gigabit
Ethernet Switch is not a powered device, the PoE feature on the media
converters is not used.

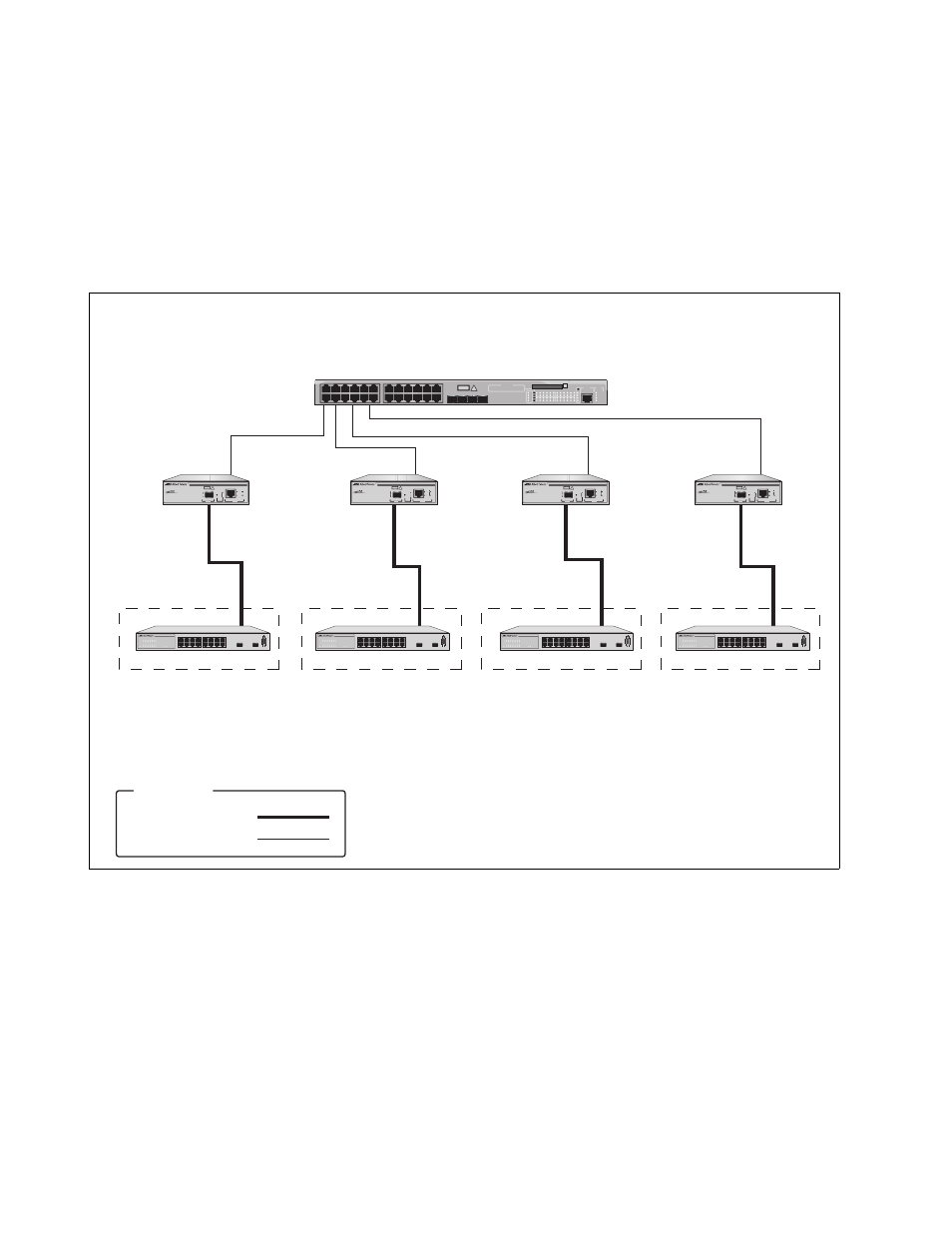

Figure 4. Topology 2
AT-PC2002/POE Gigabit PoE Bridging Converter AT-PC2002/POE Gigabit PoE Bridging Converter AT-PC2002/POE Gigabit PoE Bridging Converter AT-PC2002/POE Gigabit PoE Bridging Converter
AT-GS950/16 AT-GS950/16 AT-GS950/16 AT-GS950/16
1442
Remote Sites:
AT-GS950/16 Gigabit Ethernet
Switches with SFP Modules
Central Office:
AT-9424Ts Gigabit Ethernet Switch and
AT-PC2002/POE Media Converters
Twisted pair cable
Fiber optic cable
Legend
