Chapter 1: Overview
26
LEDs
The LEDs on the AT-PC2002/POE, Media Converter are shown in Figure
2 and described in the following sections:
❒
“Power LED” on page 26
❒
“10/100/1000Base-T Twisted Pair Port LEDs” on page 27
❒
“SFP Module Slot LEDs” on page 28
❒
“Operating Mode LEDs” on page 28

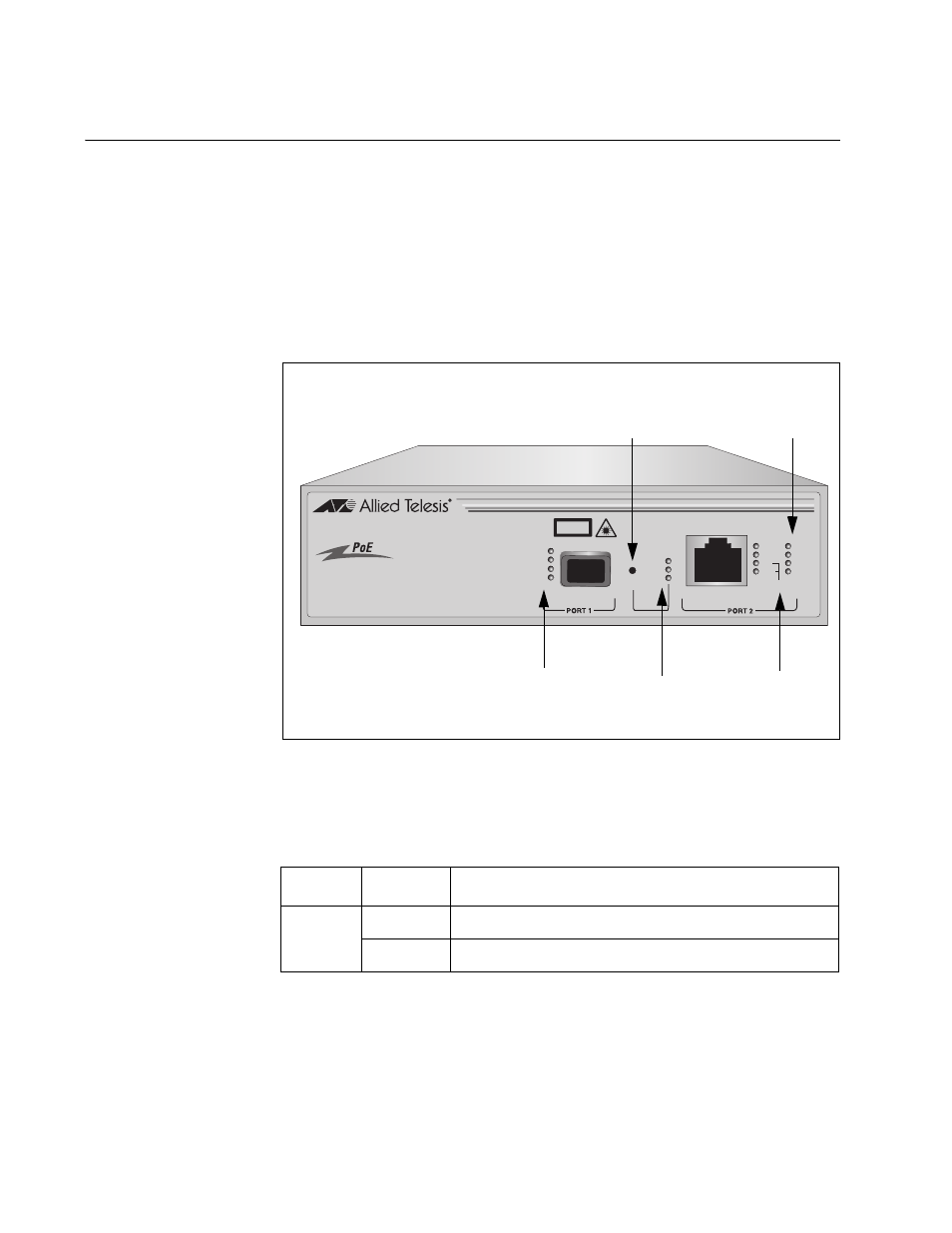

Figure 2. LEDs on the AT-PC2002/POE Media Converter
Power LED
The states of the PWR LED are described in Table 3.
1426
AT-PC2002/POE
Gigabit PoE Bridging Converter
100
1000
SFP
100Base-FX
1000Base-X
10/100/1000Base-T
Auto MDI/MDI-X
LINK
ACT
100
10
PWR
PoE
FDX
ANeg
1000
ML
SML
LT
MODE
LINK
ACT
CLASS 1
LASER PRODUCT
Power LED
SFP Module
LEDs
Twister Pair
Port LEDs
Operating
Mode LEDs
Operating Mode
Button
Table 3. System Status LED
LED Color Description
PWR Green The unit is receiving power.
Off The unit is not receiving power.
