AT-PC2002/POE Media Converter Installation Guide
47
Installing the SFP Module
To install the SFP module:
1. Remove the SFP module from its shipping container and store the
packaging material in a safe location.
Caution
The SFP module is sensitive to and can be damaged by electrostatic
discharge. Wear a grounding device and observe electrostatic
discharge precautions when installing the module in the device.
2. With the label on the module facing up, slide the module into the slot
until it clicks into place.

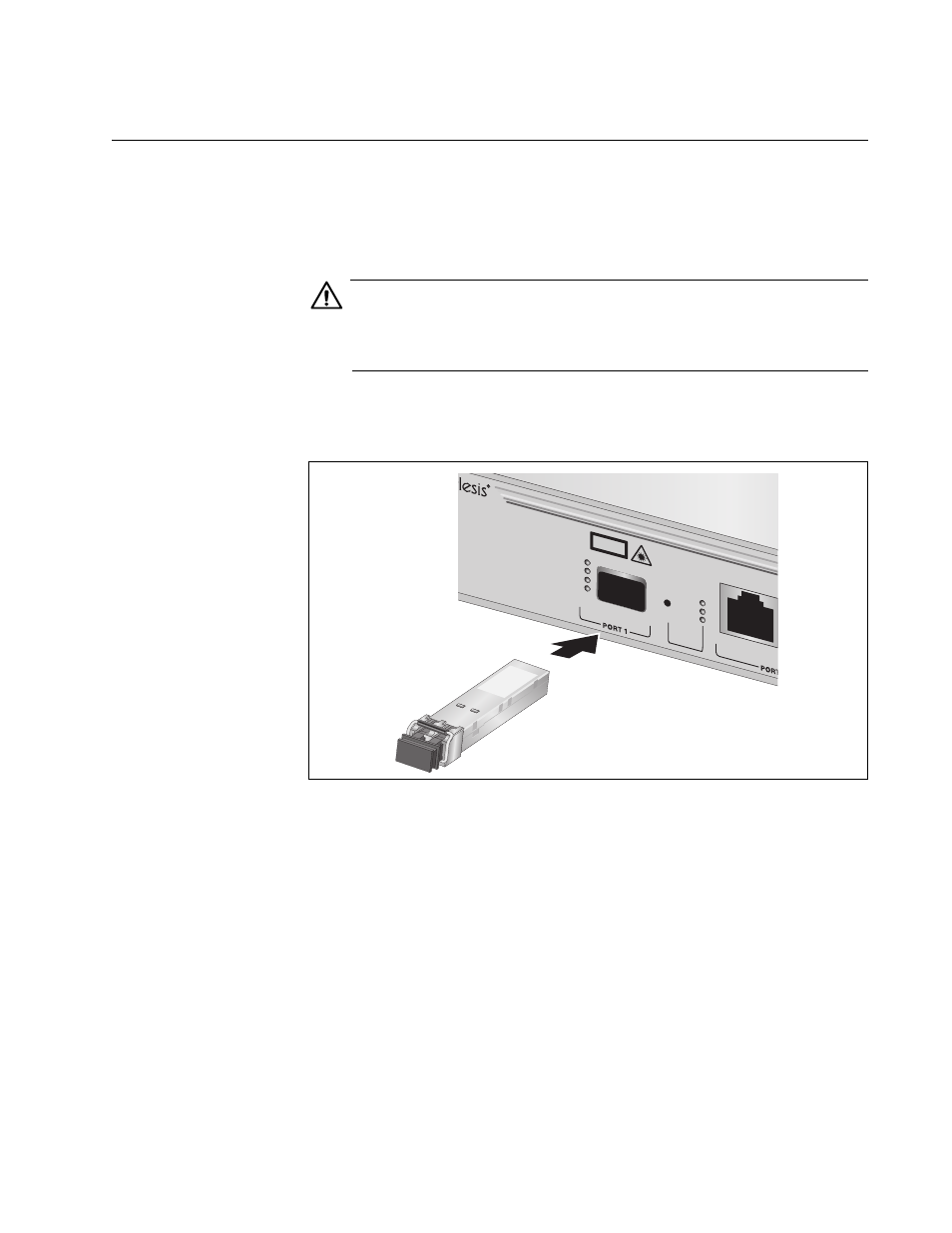

Figure 8. Installing the SFP Module
3. Verify that its handle is in the upright position.
1434
nverter
100
1000
SFP
100Base-FX
1000Base-X
10/100/1000Base
-
Auto MDI/M
DI-X
ML
SML
LT
MODE
LINK
ACT
CLASS 1 LASER PRODUC
T
