AT-GS950/48 Gigabit Ethernet WebSmart Switch Installation Guide
53
Connectors and Port Pinouts
This section lists the connectors and connector pinouts for the
AT-GS950/48 Gigabit Ethernet Smart switch and its components.

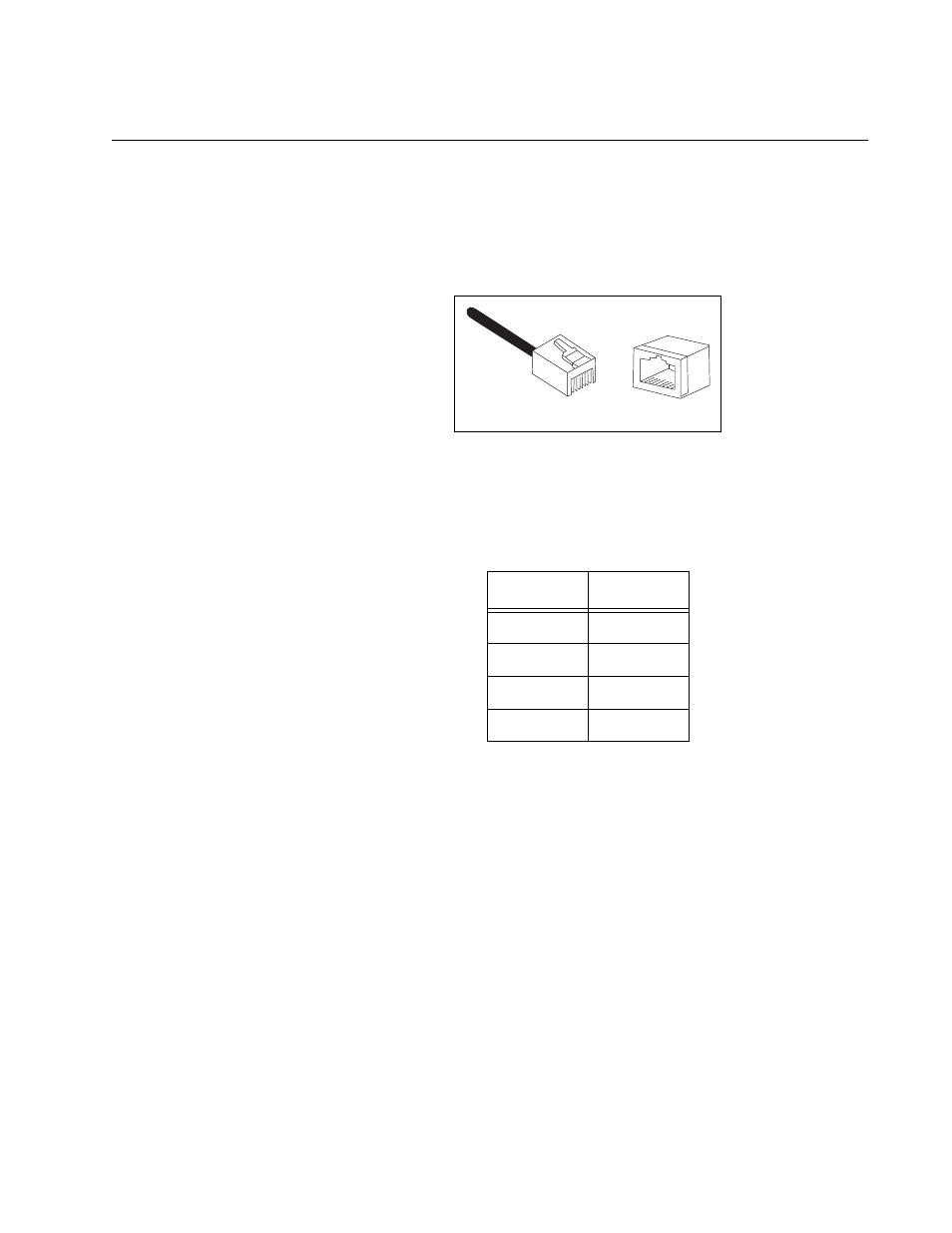

Figure 18 illustrates the pin layout for an RJ-45 connector and port.
Figure 18. RJ-45 Connector and Port Pin Layout
Table 6 lists the RJ-45 pin signals when a twisted pair port is operating in
the MDI configuration.
Table 6. MDI Pin Signals (10Base-T or 100Base-TX)
Pin Signal
1 TX+
2 TX-
3 RX+
6 RX-
8
8
1 1
