Allied Telesis AT-GS950/48 User Manual
Page 37
AT-GS950/48 Gigabit Ethernet WebSmart Switch Installation Guide
37
4. Install four plastic anchors into the wall.
Drill holes in the wall so that they are level with each other and spaced
as shown in Figure 7.
Each hole must be 0.635 mm (0.25 in) in diameter.

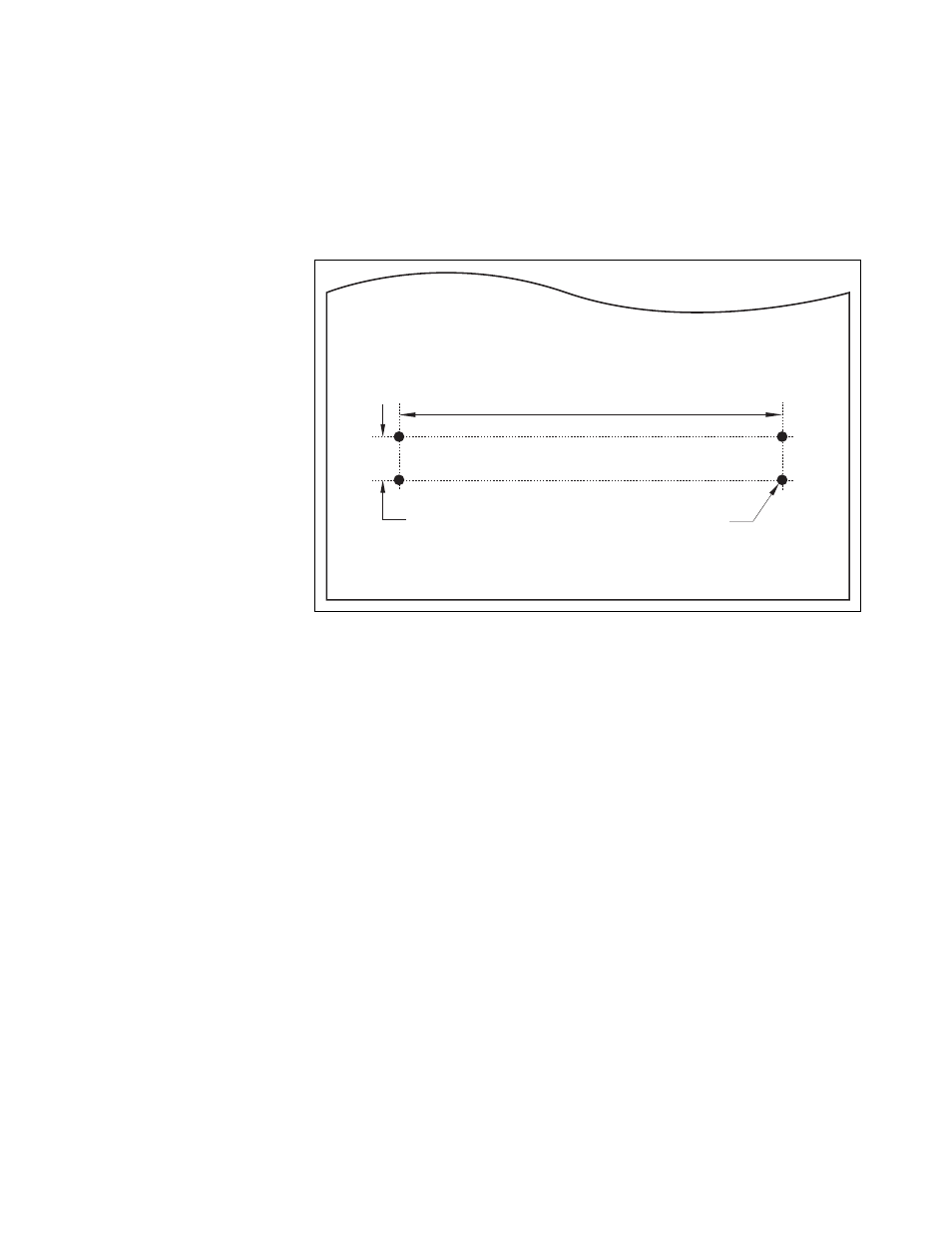

Figure 7. Positioning and Drilling Holes for Wall Installation
465mm (18.3in)
31.75 (1.25in)
0.635mm DIA
(0.25in)
