Figure 19: installing the washers – Allied Telesis AT-SBx3106WMB User Manual
Page 37
AT-SBx3106WMB Wall Mounting Brackets Installation Guide
37

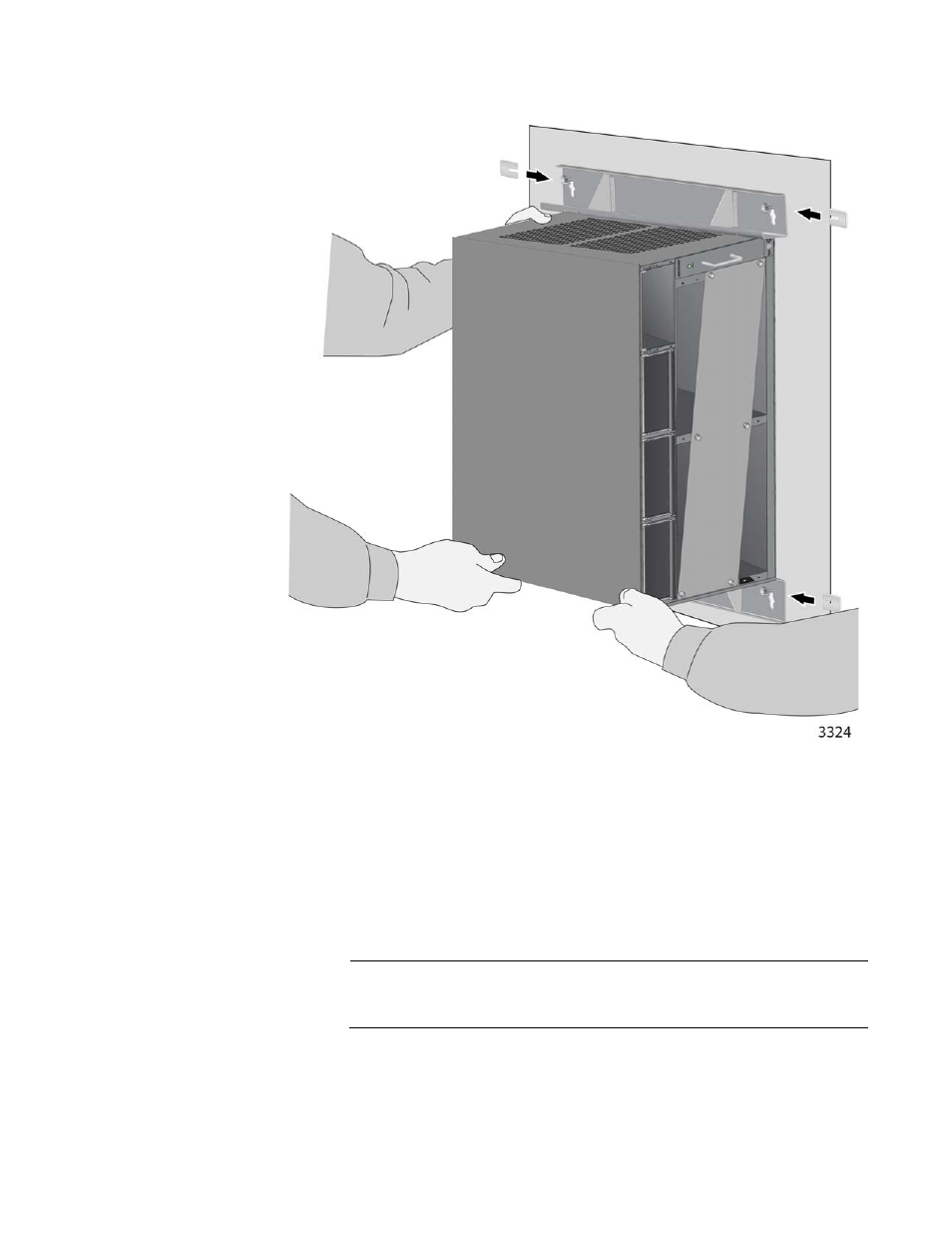

Figure 19. Installing the Washers
4. Tighten the four bracket screws to secure the brackets and chassis to
the wall. Refer to Figure 20 on page 38. The provided concrete screws
require a 5/16” socket or wrench. The provided wood screws require a
3/8” socket or wrench.
Tighten the screws until they are fully seated and then tighten another
1/8 to 1/4 turn.
Note
Be careful not to over-tighten the screws or you might damage the
threads in the holes.
