Allied Telesis AT-SBx3106WMB User Manual
Page 15
AT-SBx3106WMB Wall Mounting Brackets Installation Guide
15

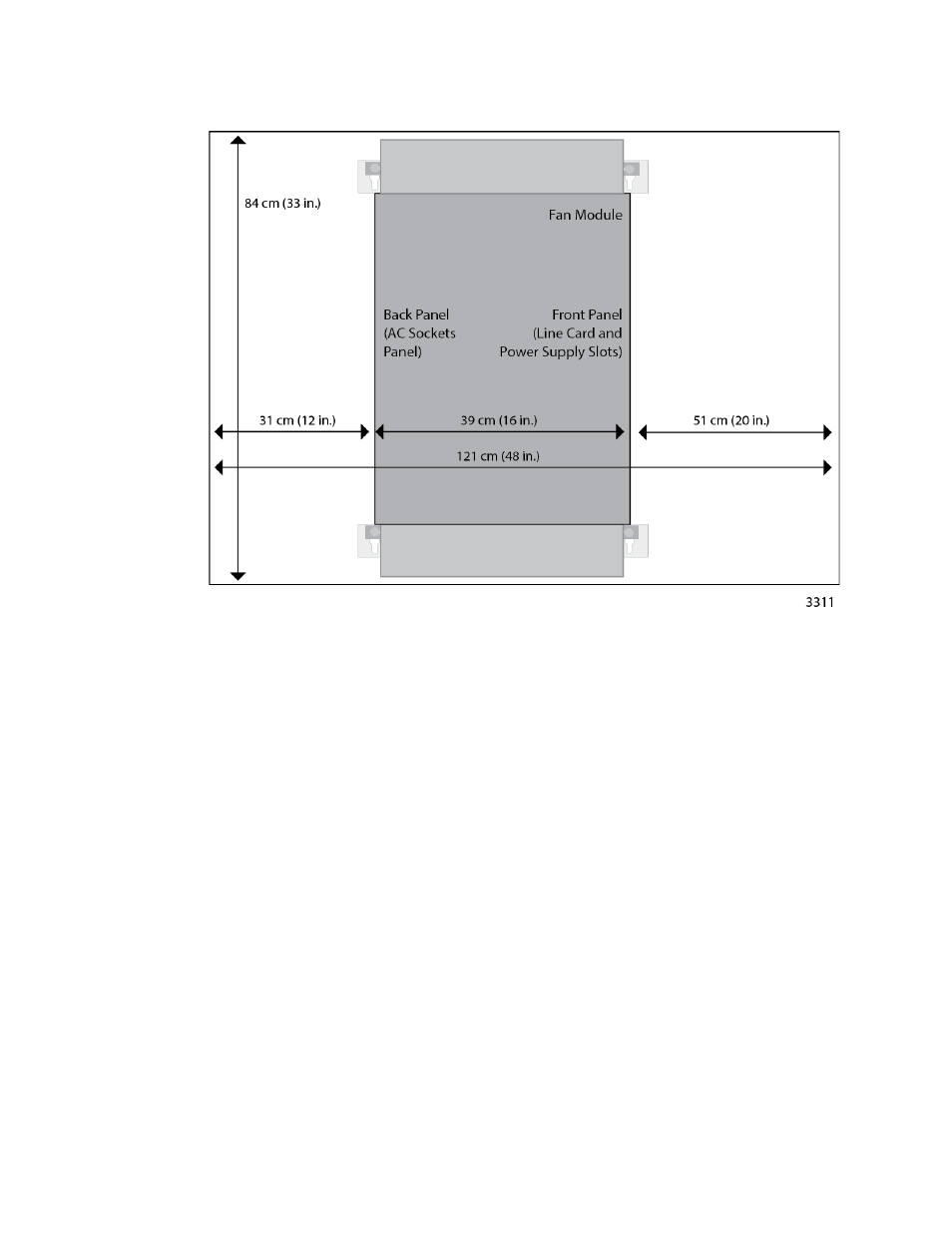

Figure 2. Minimum Area Dimensions When the Chassis has AC Power
Supplies
The front panel should have a minimum space of 51 cm (20 in.) so that you
can install and service the line cards and power supplies. The back panel
should have a minimum space of 31 cm (12 in.) so that you can connect
the AC power cords.
The minimum dimensions for the reserved wall area for a chassis that has
DC power supplies are listed here:
Height: 84 cm (33 in.)
Width: 105 cm (42 in.)
The dimensions are illustrated in Figure 3 on page 16.
