AT-SBx3106WMB Wall Mounting Brackets Installation Guide
33

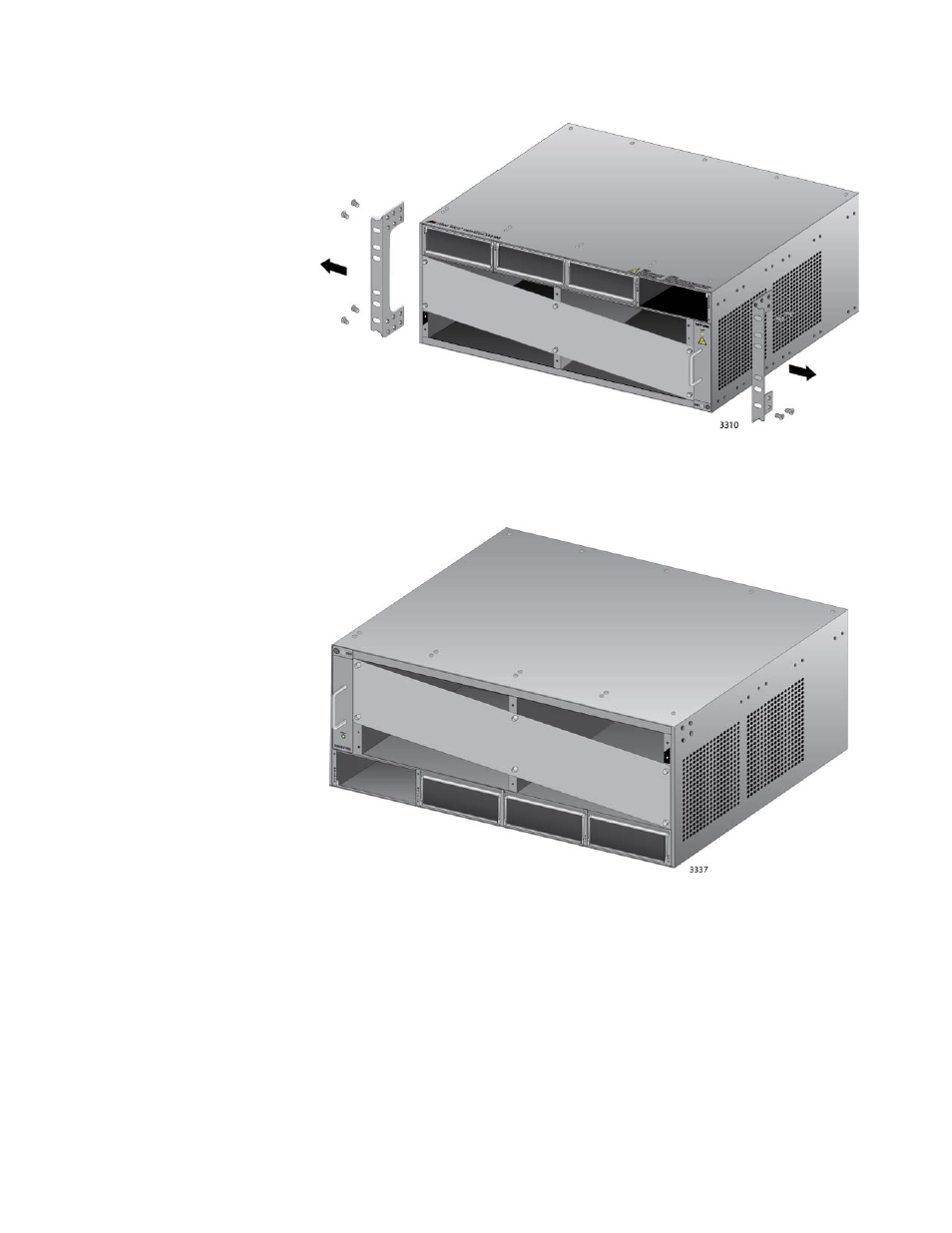

Figure 14. Removing the Equipment Rack Brackets
2. Turn the chassis upside down on a table or desk. Refer to Figure 15.
Figure 15. Turning the Chassis Upside Down on a Table
3. With a #2 Phillips-head screwdriver, attach the wall mounting brackets
to the sides on the chassis. Each bracket should be attached with four
screws. The screws come with the brackets. Refer to Figure 16 on
page 34.
