Figure 18: lowering the chassis onto the screws – Allied Telesis AT-SBx3106WMB User Manual
Page 36
Installation Instructions
36
2. Gently lower the chassis until it is resting on the screws. Refer to
Note
As a safety precaution, the individuals who are holding the chassis
should continue to support it until the completion of step 4.

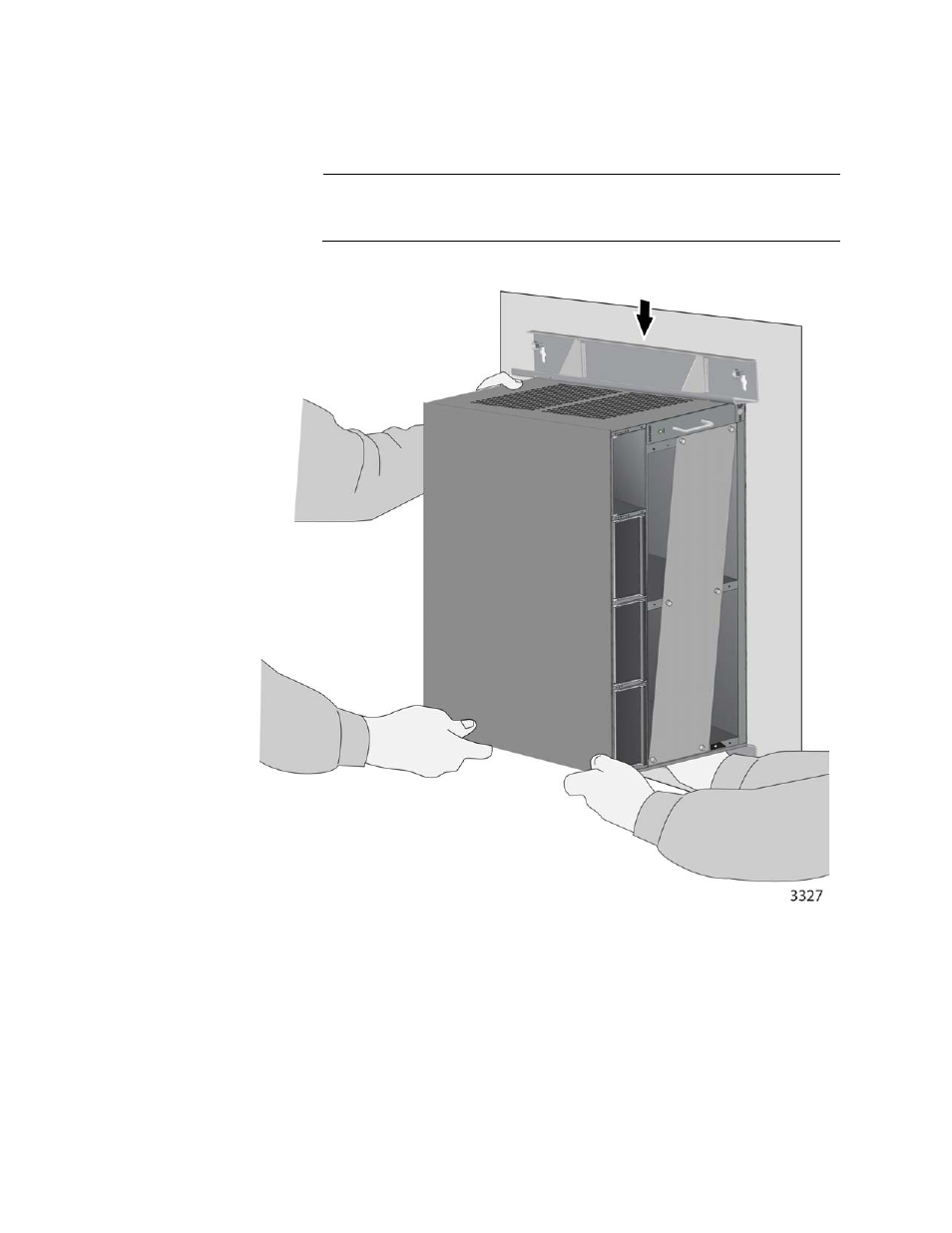

Figure 18. Lowering the Chassis onto the Screws
3. Install the four washers included with the brackets by sliding them
between the screws and brackets. Refer to Figure 19 on page 37.
