AT-SBx3106WMB Wall Mounting Brackets Installation Guide
25
Checking the Components of the AT-SBx3106WMB Brackets
Check the shipping package for the items in Figure 7. If any item is
missing, contact Allied Telesis for assistance.

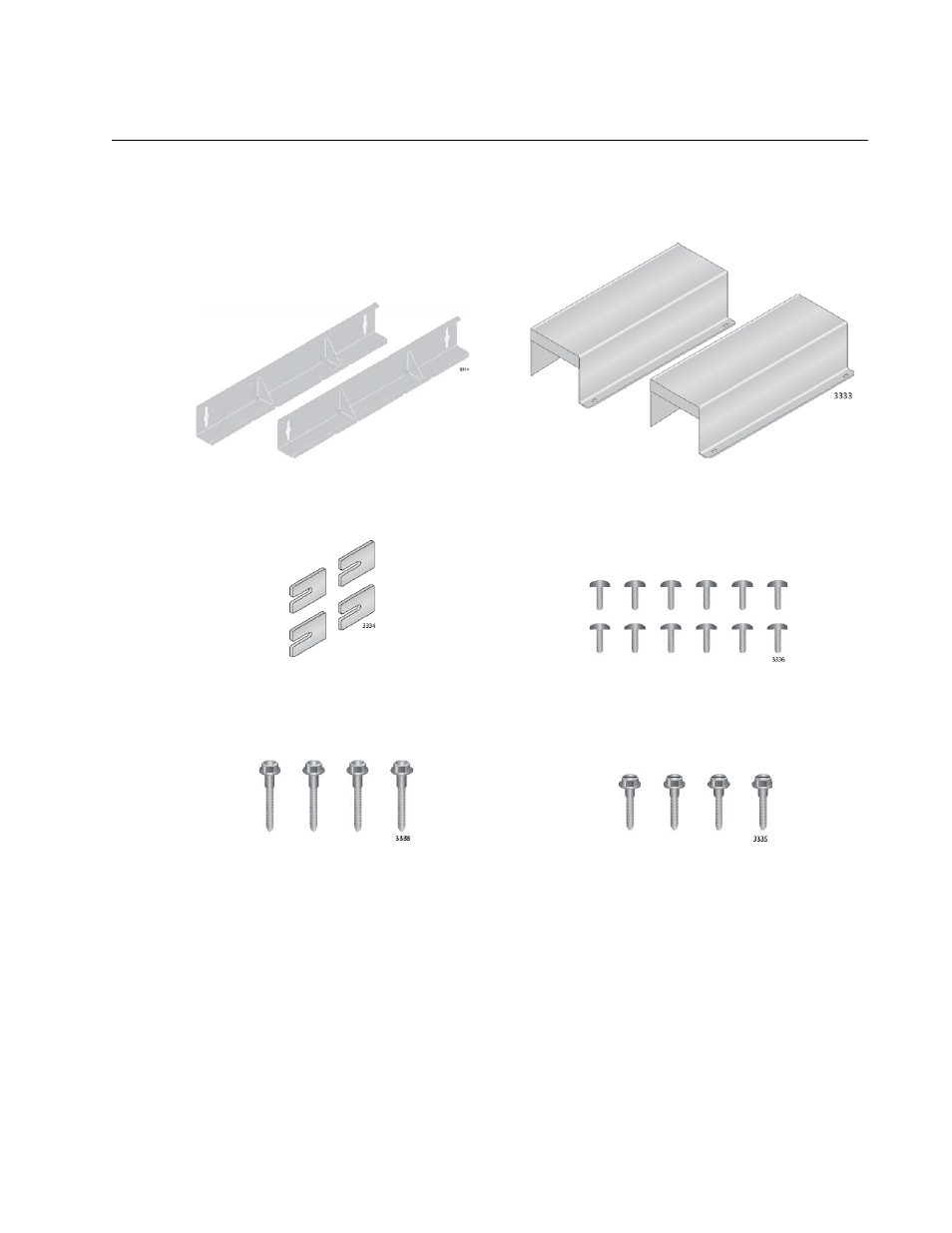

Figure 7. Components of the AT-SBx3106WMB Wall Mounting Brackets
Two wall mounting brackets Two vent covers
Four washers Twelve bracket and
vent cover screws
Four hex-washer
head lag screws for
wallboard:
- Length: 2 1/2 in.
- Diameter: 1/4 in.
- Hex size: 3/8 in.
- Color: silver Four hex-washer
head lag screws for
concrete:
- Length: 1 3/4 in.
- Diameter: 1/4 in.
- Hex size: 5/16 in.
- Color: blue
