Allied Telesis x310 Series User Manual
Page 87
x310 Series Installation Guide for VCStack
87

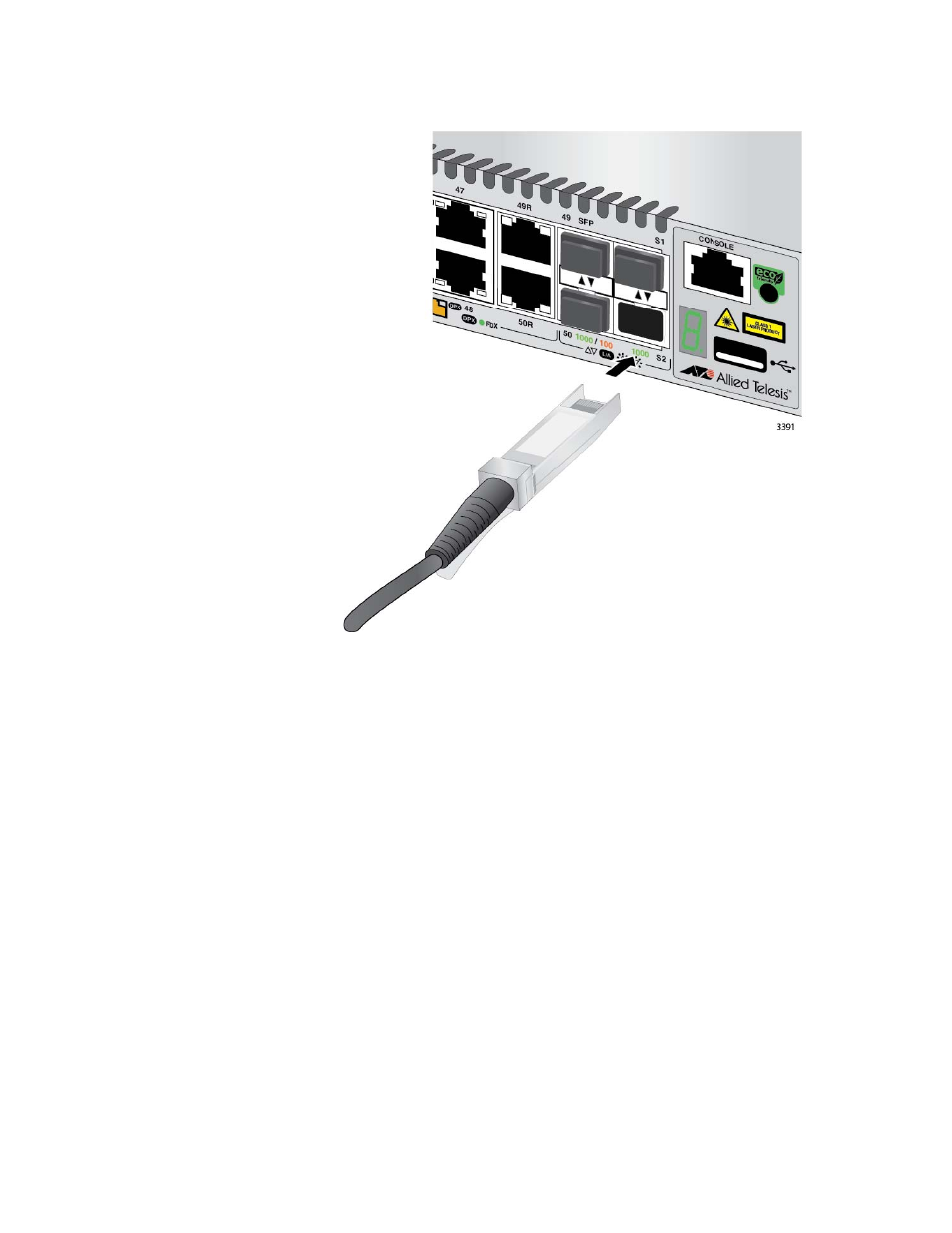

Figure 41. Installing the AT-StackXS/1.0 Transceiver in Slot S2
8. Repeat this procedure to connect additional switches to the stack with
AT-StackXS/1.0 transceivers.
9. To create the redundant path with the ring topology shown in Figure 18
on page 52 and Figure 19 on page 53, connect a stacking cable to the
empty stacking slots on the top and bottom switches.
10. After connecting the stacking cables to all the switches, go to Chapter
