Stacking slots and transceiver, Figure 15: at-stackxs/1.0 stacking transceiver – Allied Telesis x310 Series User Manual
Page 49
x310 Series Installation Guide for VCStack
49
Stacking Slots and Transceiver
The x310 Series Switches come with two stacking slots. The slots are
labeled “S1” and “S2”. The slots may only be used with the VCStack
feature and only with stacking transceivers. The slots do not support
standard SFP transceivers.
The stacking transceiver is shown in Figure 15. It is called the AT-
StackXS/1.0 transceiver. It has two SFP transceiver-style connectors and
one meter of twinax cable.

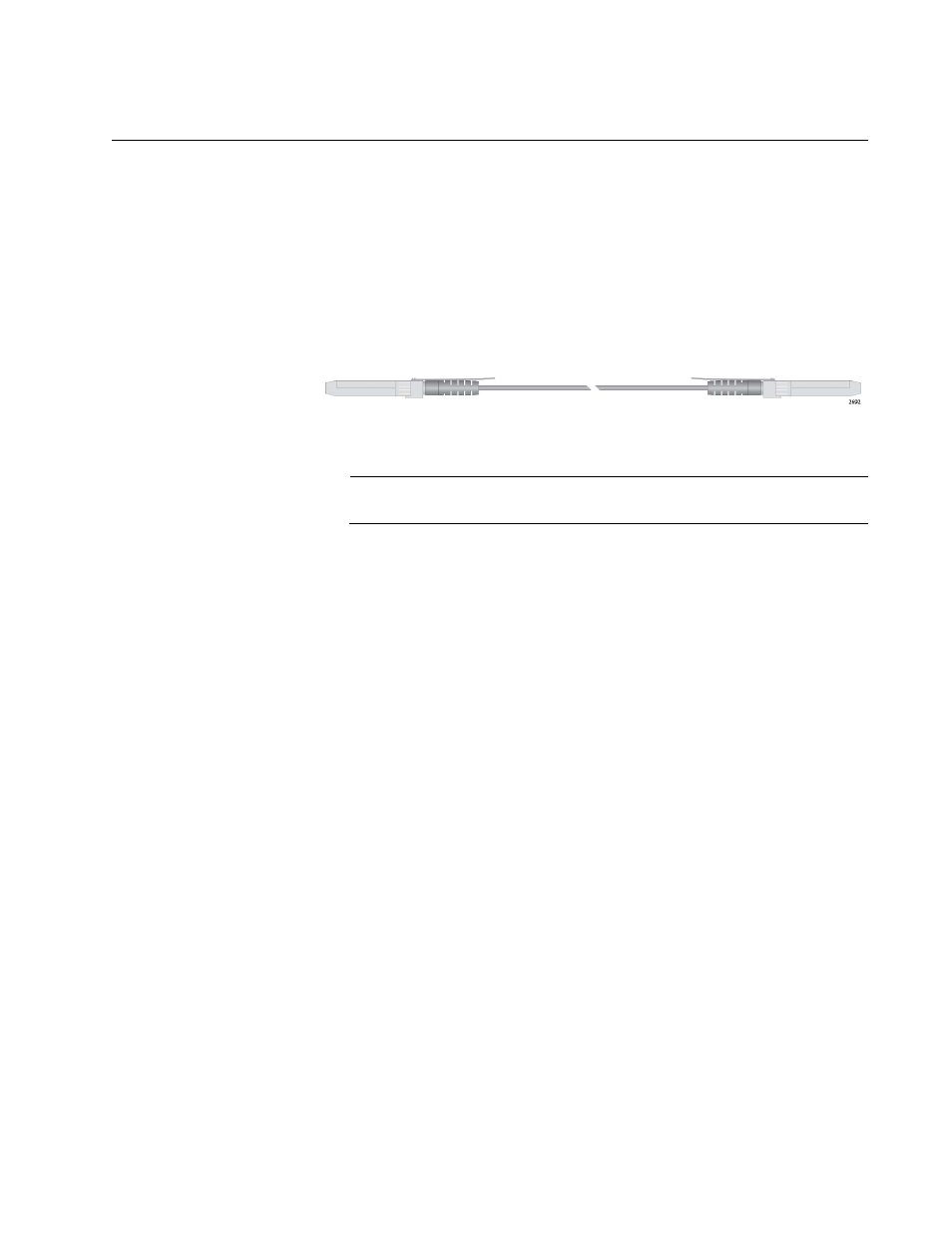

Figure 15. AT-StackXS/1.0 Stacking Transceiver
Note
Stacking transceivers must be purchased separately.
