Allied Telesis x310 Series User Manual
Page 109
x310 Series Installation Guide for VCStack
109
7. Connect the fiber optic cable to the transceiver, as shown in Figure 56.
The connector on the cable should fit snugly into the port, and the tab
should lock the connector into place.

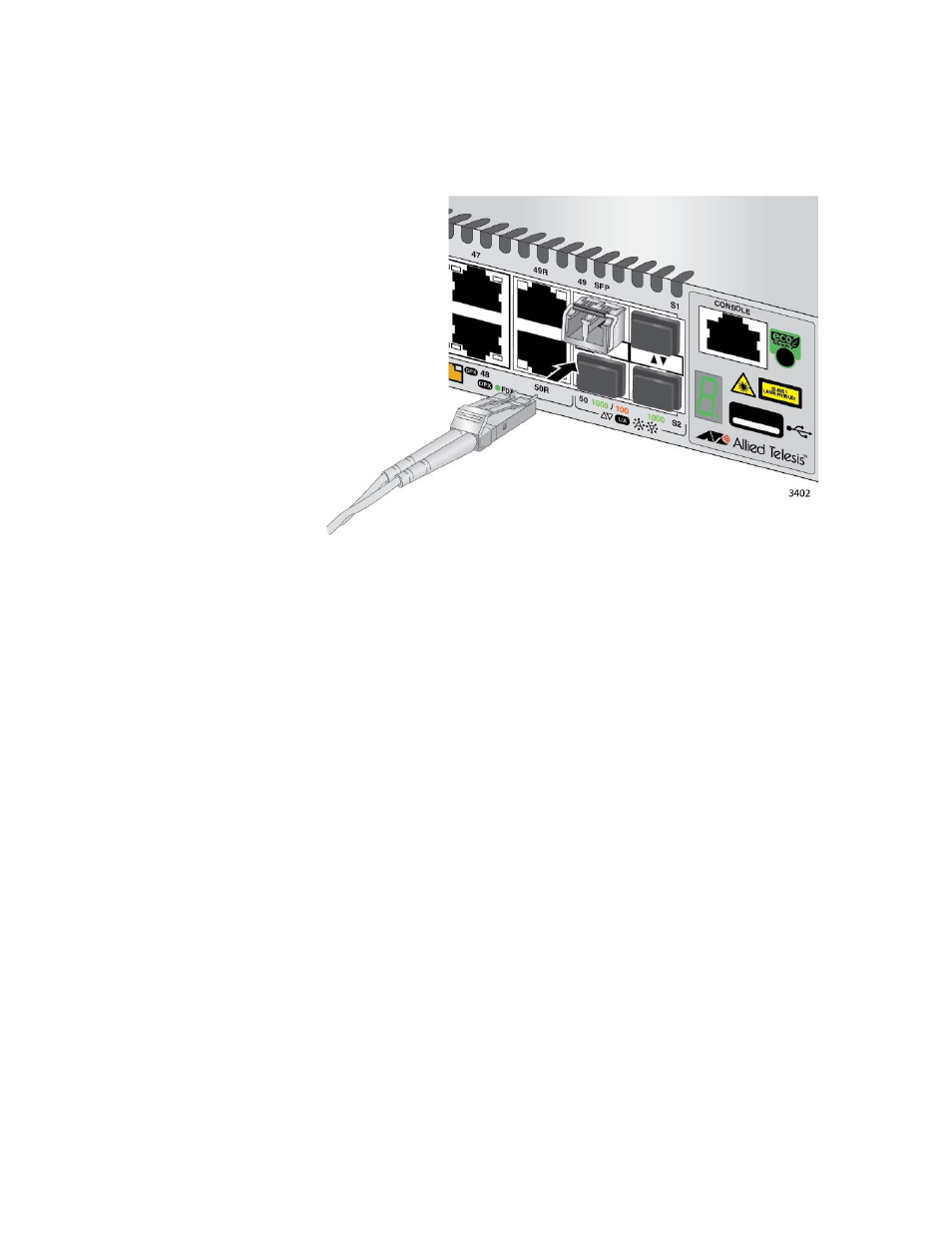

Figure 56. Connecting a Fiber Optic Cable to an SFP Transceiver
8. Repeat this procedure to install a second transceiver.
This completes the installation procedure for the switch. If you encounter a
problem, refer to Chapter 9, “Troubleshooting” on page 111.
