x310 Series Installation Guide for VCStack
37

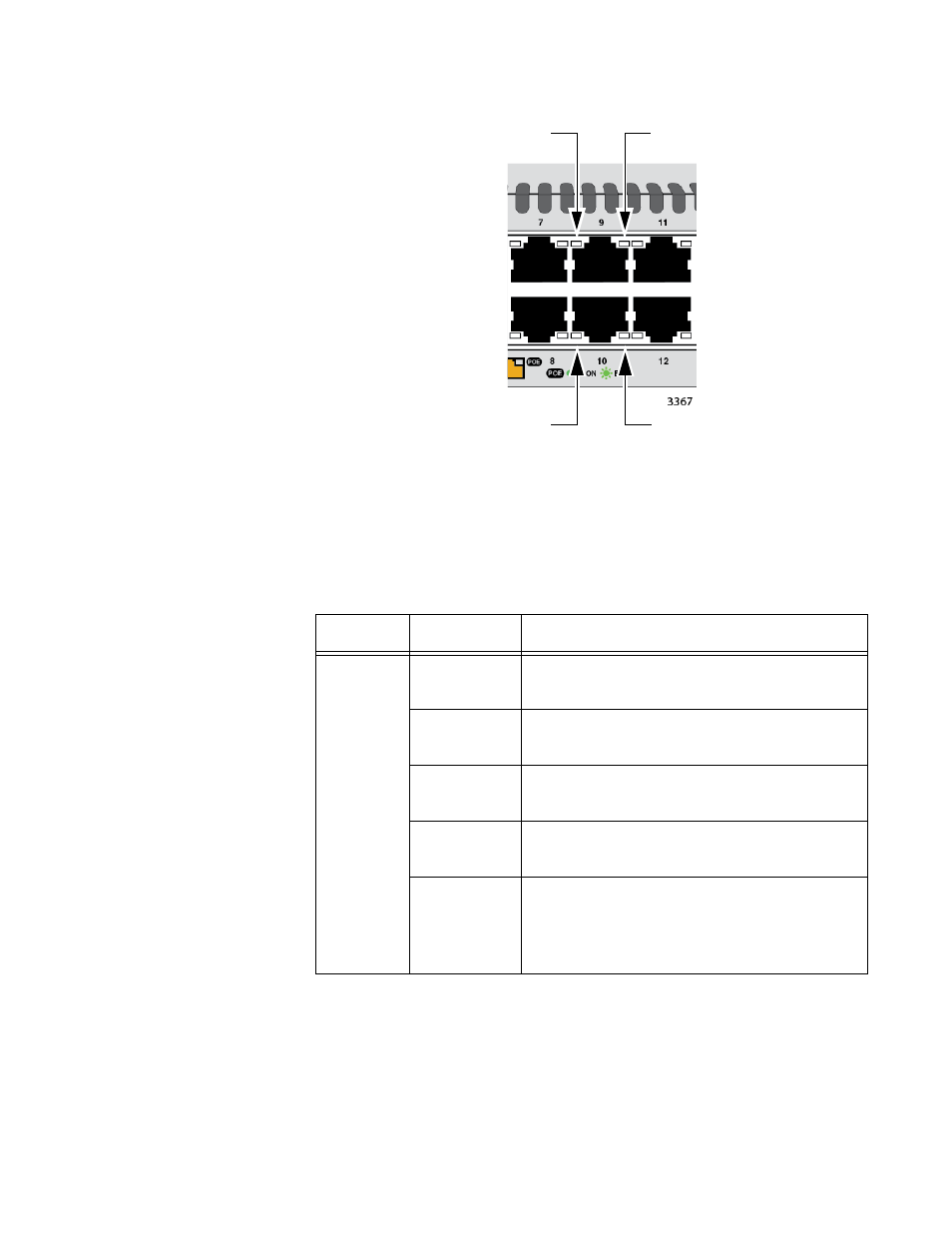

Figure 9. LEDs for the PoE 10/100Base-TX Ports on the AT-x310-26FP
and AT-x310-50FP Switches
The LEDs are described in Table 6.
Table 6. LEDs for the PoE 10/100Base-TX Ports on the AT-x310-26FP
and AT-x310-50FP Switches
LED State Description
Link/
Activity
LED
Solid Green A port has established a 100 Mbps link to a
network device.
Flashing
Green A port is transmitting or receiving data at
100 Mbps.
Solid Amber A port has established a 10 Mbps link to a
network device.
Flashing
Amber A port is transmitting or receiving data at 10
Mbps.
Off A port has not established a link with
another network device or the LEDs are
turned off. To turn on the LEDs, use the
eco-friendly button.
Link/Activity LED
Link/Activity LED
PoE LED
PoE LED
