Allied Telesis x310 Series User Manual
Page 85
x310 Series Installation Guide for VCStack
85

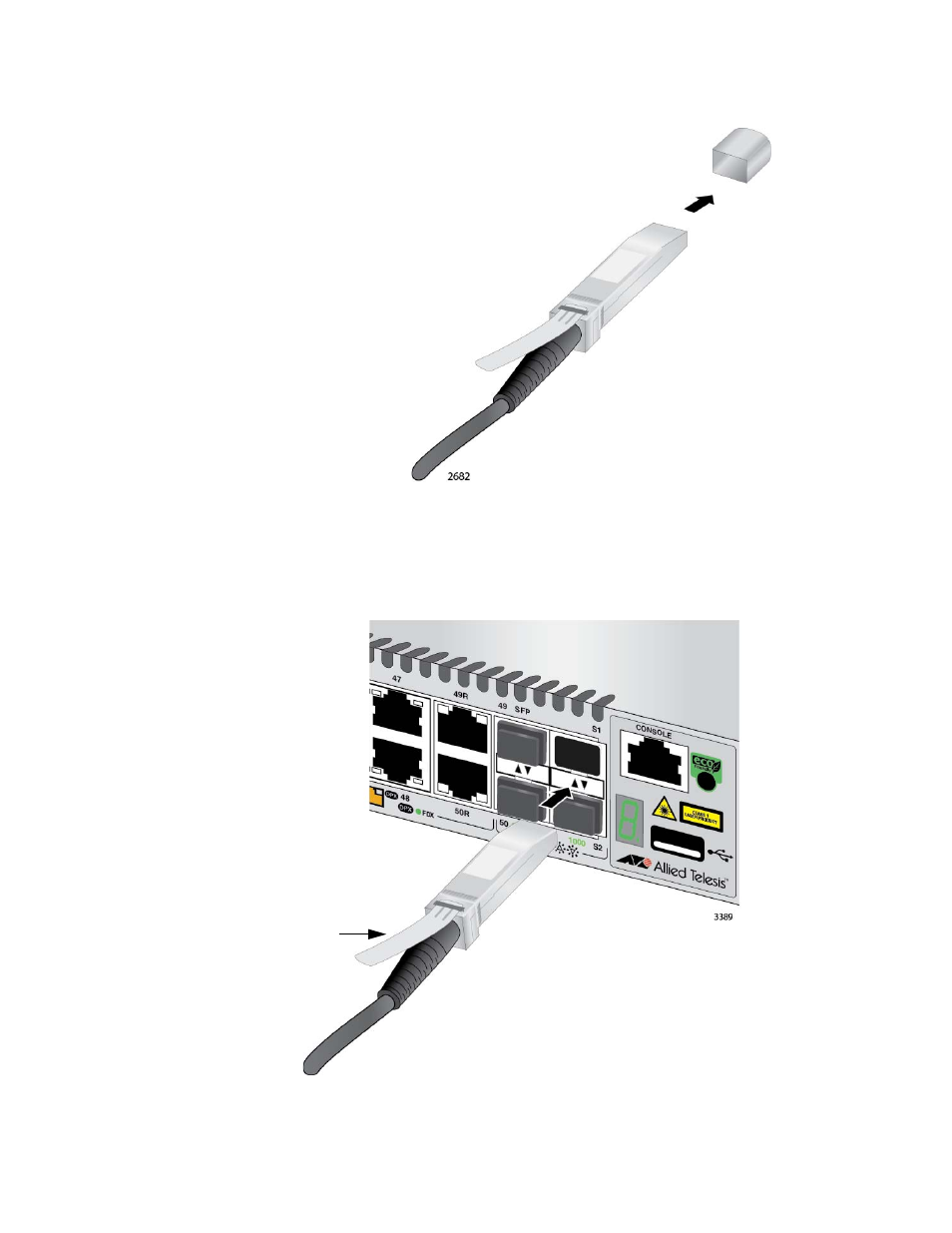

Figure 38. Removing the Dust Cover from the AT-StackXS/1.0
Transceiver
4. Position the transceiver with the release tab on top and slide the
transceiver into the slot, as shown in Figure 39.
Figure 39. Installing the AT-StackXS/1.0 Transceiver in Slot S1
Release tab
