Allied Telesis IE200 Series User Manual
Page 53
Chapter 4: Cabling the Networking Ports
AT-IE200 Series Installation Guide
53

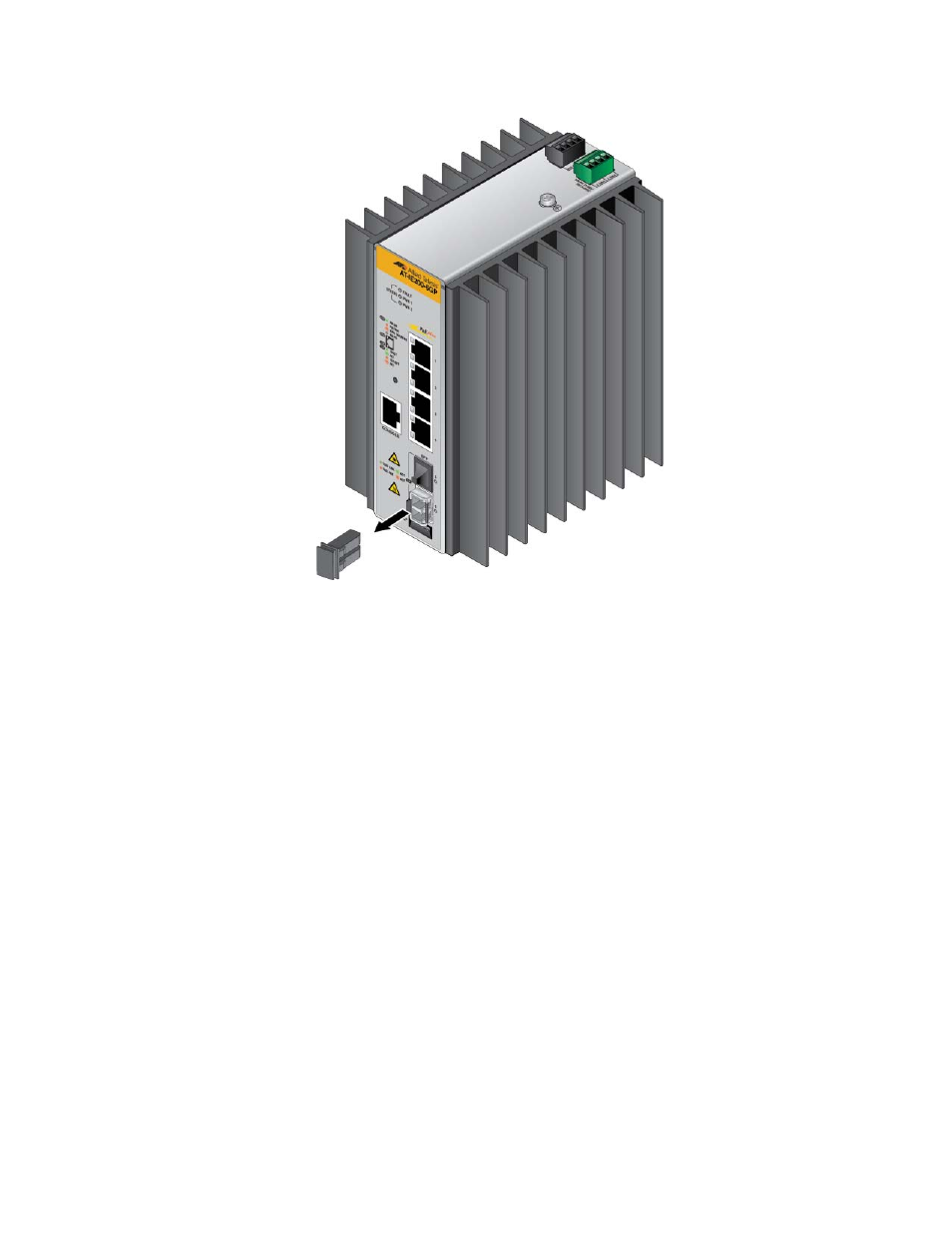

Figure 14: Removing the dust cover from an SFP transceiver.
6. Verify that the handle of the transceiver is in the right-hand position.
7. Connect the fiber optic cable to the transceiver. The connector on the cable should fit snugly into the
port and the tab should lock the connector into place.
