Chapter 3: Installing the Switch on a DIN Rail or Wall Mount
AT-IE200 Series Installation Guide 46
Installing the Switch on a Wall Mount
To install the switch on a wall mount:
1. Mount a piece of ¾-inch plywood to the wall. The plywood must be securely mounted to the wall using
appropriate methods based on the wall surface.
2. Attach the wall mount brackets to the unit with four screws, as shown in Figure 10.

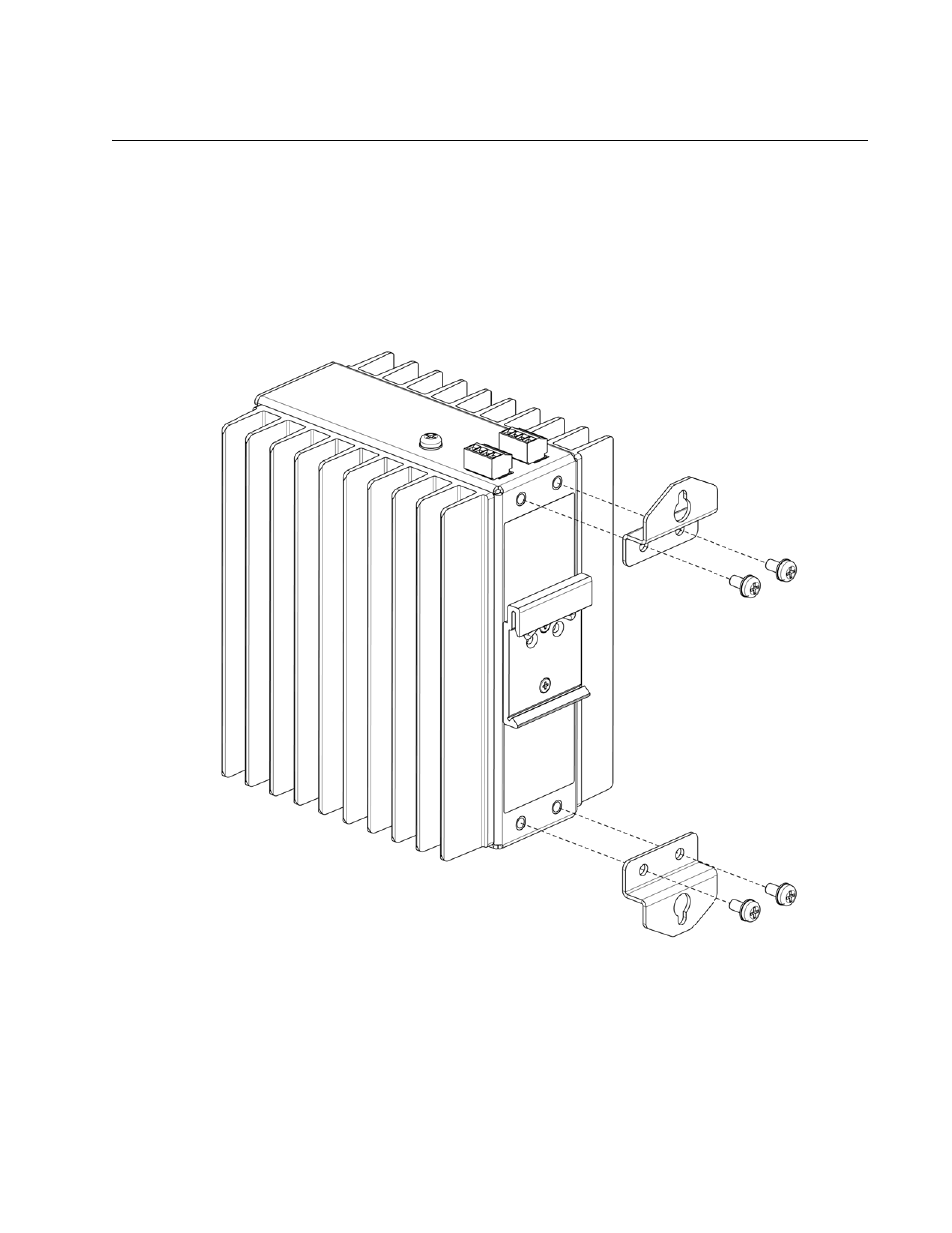

Figure 10: Attaching the wall mount brackets.
3. Fasten the switch to the wall with #8 x 1.5” pan head wood screws. The distance between the mounting
holes is 175 mm. (6.9 in.), as shown in Figure 11.
