AT-GS950/10PS, AT-GS950/16PS, and AT-GS950/48PS Switches Installation Guide

31

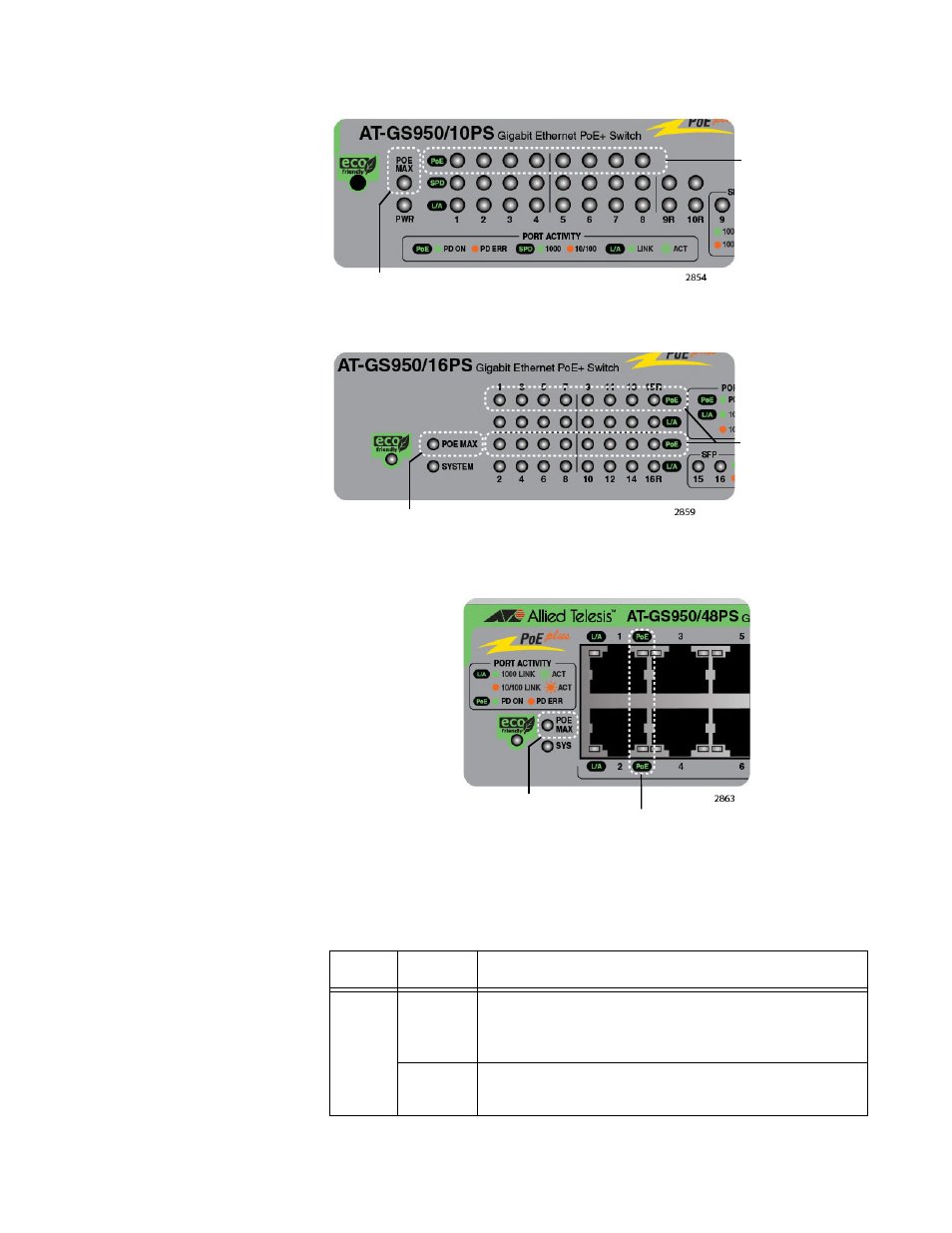

Figure 14. AT-GS950/10PS PoE and PoE MAX LEDs

Figure 15. AT-GS950/16PS PoE and PoE MAX LEDs

Figure 16. AT-GS950/48PS PoE and PoE MAX LEDs

See Table 8 for a functional description of the PoE status LEDs.

Table 8. PoE Status LED Functional Descriptions

LEDs

State

Description

PoE
MAX

Red

Indicates the total PoE output power for all ports
on the switch exceeds the maximum PoE power
that the switch can deliver.

Off

Indicates the switch has spare power for a new
PD.

PoE Port LEDs

PoE MAX LED

PoE MAX LED

PoE Port LEDs

PoE MAX LED

PoE Port LEDs
