30 Barnet Boulevard

New Bedford, MA 02745

(508) 995-2200

8

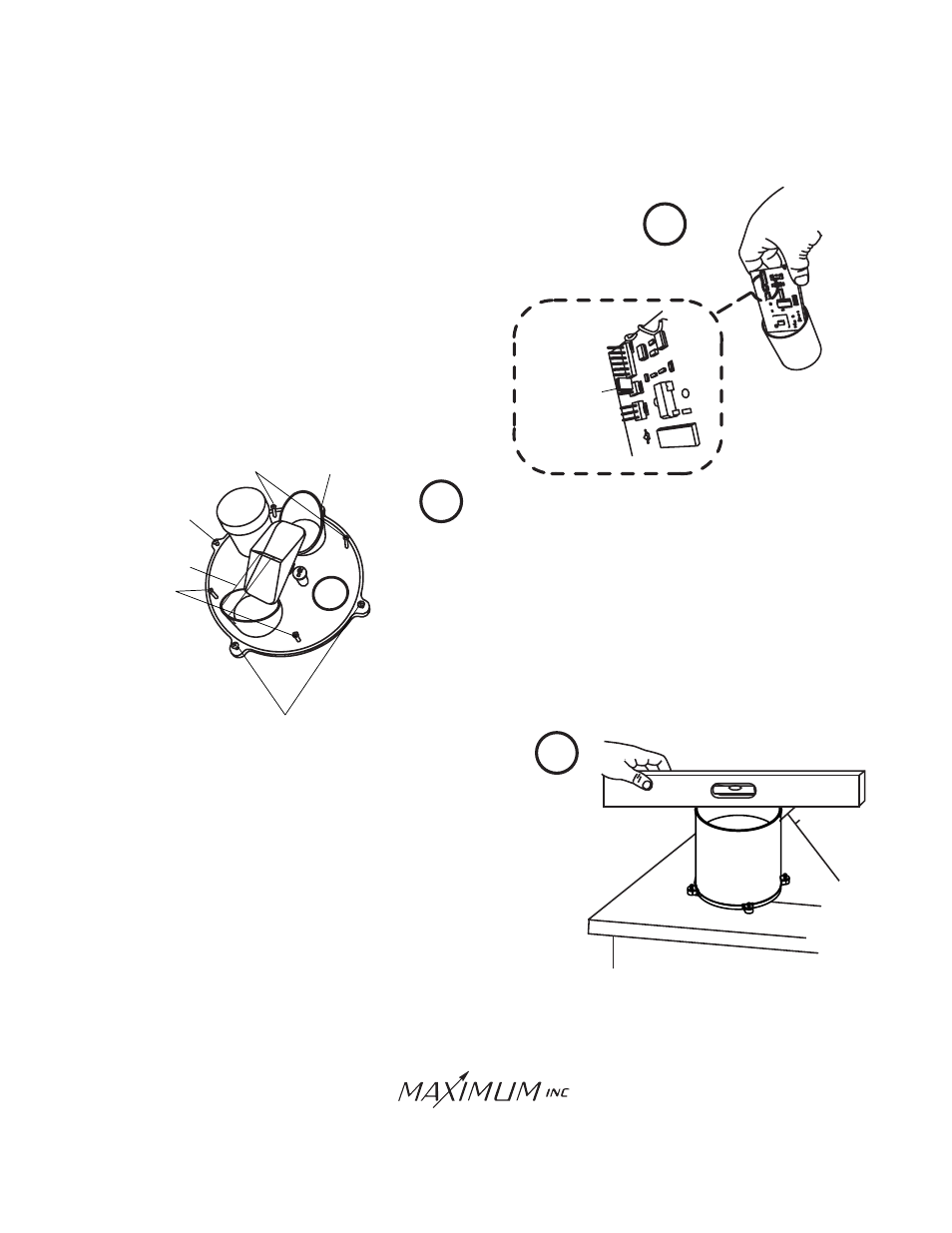

Once proper communication between the transmitter
and the receiver has been verified, final installation of
the rain collector can be made. Remove the batteries
and reset the jumper to the NORMAL POSITION.
Reinstall the batteries and slide the transmitter board
back into it’s housing. Replace the Cap.

PROTECTIVE

TAPE

9

Remove the protective tape that is securing the TIPPING
BUCKET.

10

Use the four mounting screws to mount the base to your chosen
mounting surface.

Install cover over base and secure using the four

cover screws.

The base must be level in order to function

properly.

RAINWATCH

INST

TION

ALLA

WIRELESS

R5

D4

Y1

C2

Z2

Z1

R

3

R

1

R6

D1

C

6

APO

-1

0

9

C

7

2

JUMPER

NORMAL

POSITION

MOUNTING

SCREW

COVER

SCREW

COVER

SCREW

COVER

SCREW

MOUNTING

SCREW

Remove the hardware package taped inside the base and reinstall
the collector cover over the collector base. Use the four screws to
mount the collector to the mounting surface.

.

The collector must be

mounted level in order to function properly
