4

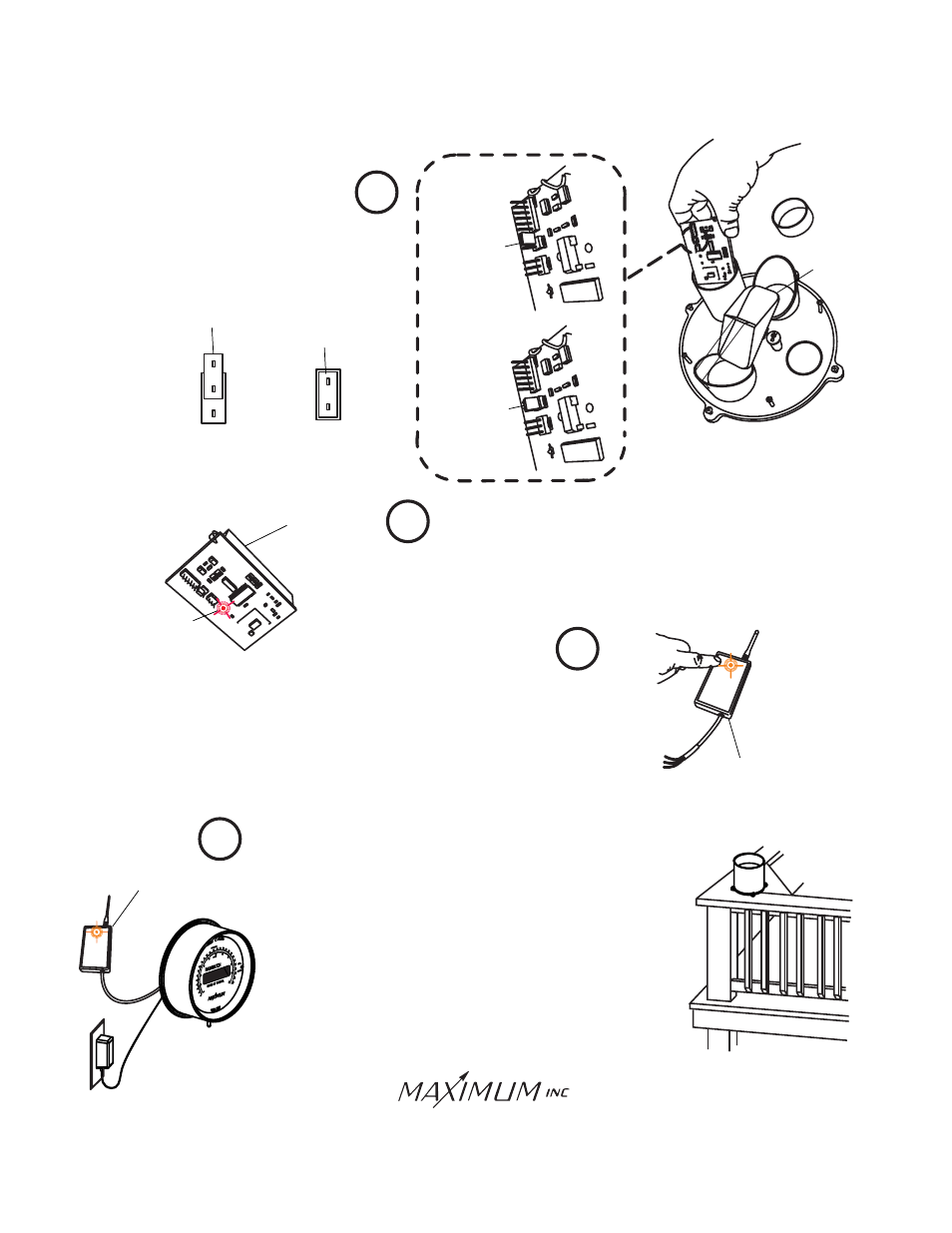

Remove the cap from the cylindrical
housing and slip the transmitter board
out of the rain collector base. Change
the jumper position from NORMAL to
TEST.
BATTERY
COMPARTMENT
TEST
POSITION
Insert two AA Alkaline batteries into the covered
battery compartment. A
LED should blink
once as the batteries are installed. This indicates
the batteries have been installed correctly.
RED
5
TIPPING
BUCKET
RECEIVER
6
Once the batteries are properly installed, the LED on the
Receiver should blink
every four seconds. Refer
to the troubleshooting section at the back of these instructions
if the LED does not blink
every four seconds.
ORANGE
ORANGE
ORANGE
red
led
RED
Page 2
30 Barnet Boulevard
New Bedford, MA 02745
(508) 995-2200
RECEIVER
7
Move the active RAINWATCH transmitter as close as possible
to your preferred final mounting location. Also move the
RAINWATCH indicator and receiver combination as close as
possible to their final mounting location. Select a location for
the transmitter that is out in the open, away from obstructions
(such as walls or trees) that would shelter the collector from
the rain in various wind directions. Be sure that the LED on the
receiver is flashing
every four seconds. If the signal
has been lost, move the transmitter to an alternate mounting
location and re-check for proper communication.
ORANGE ORANGE
RAINWATCH
INST TION ALLA
WIRELESS
R5 D4
Y1
C2
Z2
Z1
R 3
R 1
R 6
D 1
C 6
APO
-1
0
9
C
7
2
JUMPER
NORMAL
POSITION
JUMPER
R5 D4
Y1
C2
Z2
Z1
R 3
R 1
R 6
D 1
C 6
APO
-1
0
9
C 7
2
ORANGE
JUMPER
NORMAL
POSITION
TEST
POSITION
JUMPER
